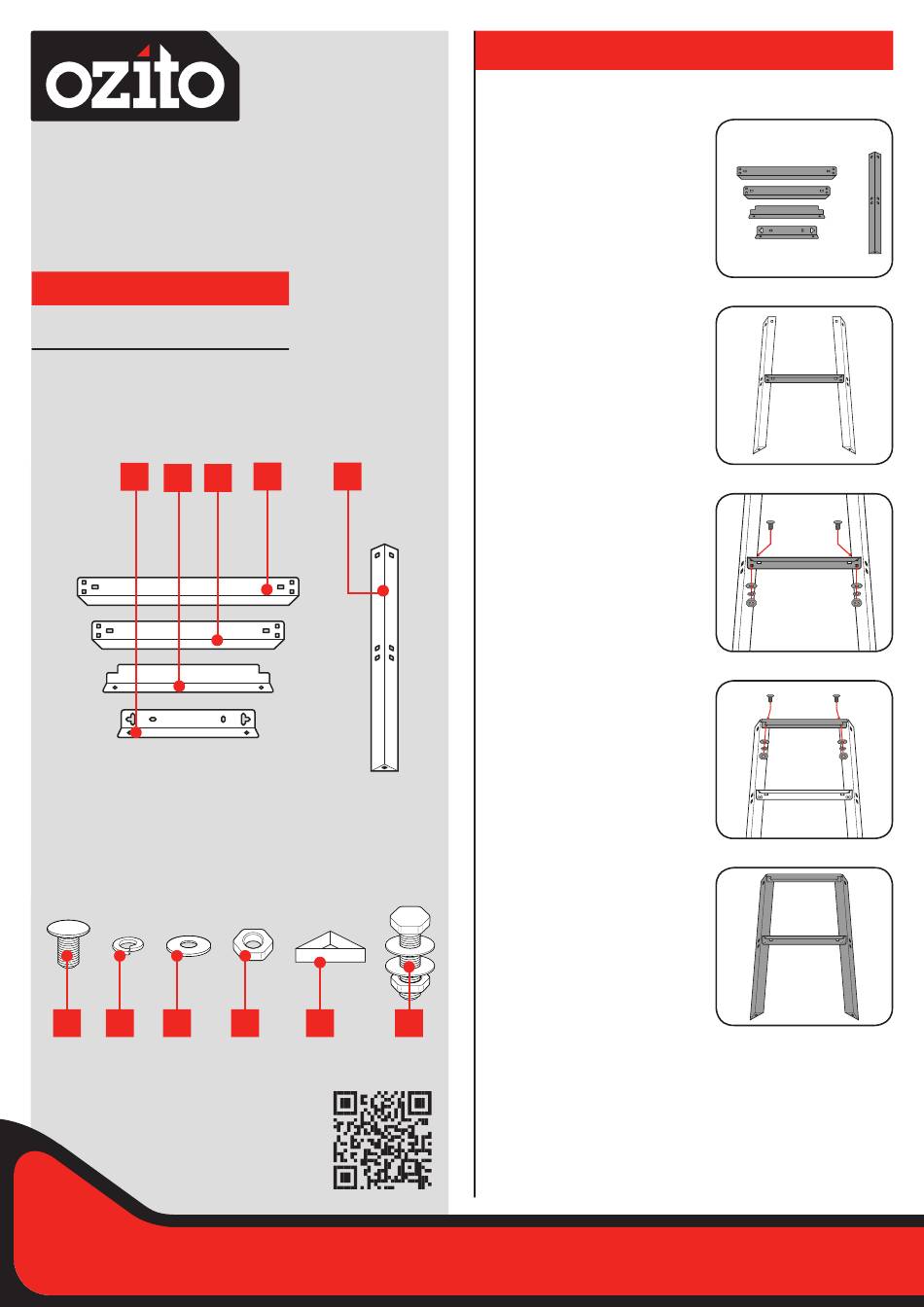

Ozito SCMS-10STANDU Stand Assembly

SLIDING
COMPOUND MITRE
SAW & STAND
254mm (10")
STAND ASSEMBLY
STAND
1 Short Upper Support - 2 pc
2 Long Upper Support - 2 pc
3 Short Lower Support - 2 pc
1
2 3
x2
x2
x2
x2
FASTENERS
6 Bolt Small - 24 pc
7 Spring Washer Small - 24 pc
8 Washer Small - 24 pc
9 Nut Small - 24 pc
6 7 8
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
4 Long Lower Support - 2 pc
5 Leg - 4 pc
4 5
x4
10 Rubber Foot - 4 pc
11 Saw Mounting Bolts - 4 pc
9 10 11
ASSEMBLY OF STAND
The stand is constructed by assembling each half of the structure and
then joining them together.
1 Remove the stand components
from the box and group matching
pieces together. Check that you
have all the contents listed in this
manual.
2 Lay two legs on the ground and
one long lower support in between
the legs aligning the bolt holes.
The side support should have its
lip on the high side (facing up)
and should sit inside the legs.
3 Once aligned, insert small bolts
into the 2 aligned holes at both
sides of the lower support. Insert
the bolt from the outside and fit a
small washer, spring washer and
nut onto each bolt to secure (only
hand tight at this initial stage).
4 Place one long upper support on
the inside of the legs at the top
Insert a bolt from the outside into
the aligned holes at either side
of the upper support and hand
tighten a small washer, spring
washer and nut onto each.
5 At this stage your frame should
look like this.
x2
x2
x2
x2
x2 x2
x2 x2
SCMS-10STANDU
Art.-No.: 30.004.09 I.-No.: 11018
x4
