Omron M5 Instruction Manual

Arm cuff:
J K L
Automatic Blood
Pressure Monitor
M
Model M5 AC Adapter S
Instruction Manual
IM-HEM-7214-ARU-02-06/2012
5334160-2B
Introduction
Thank you for purchasing the OMRON M5 Automatic Blood Pressure Monitor.

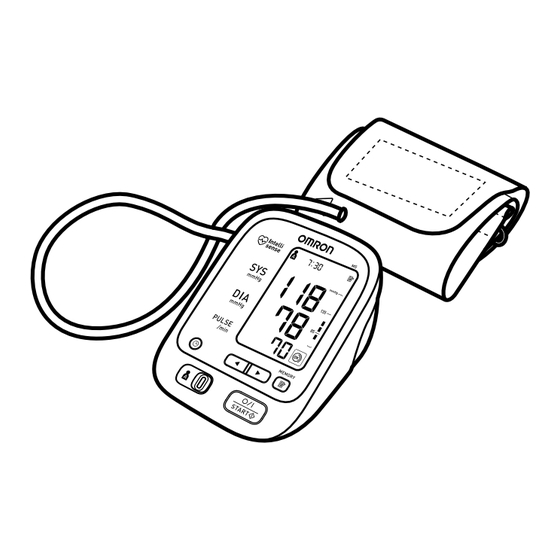

The OMRON M5 is a compact, fully automatic blood pressure monitor, Display:
operating on the oscillometric principle. It measures your blood pressure and N
pulse rate simply and quickly. For comfortable controlled inflation without the
O
need of pressure pre-setting or re-inflation the device uses its advanced
"IntelliSense" technology.
P
Intended Use
This product is designed to measure the blood pressure and pulse rate of
Q
people within the range of the designated arm cuff, following the instructions in
this instruction manual.
R
It is mainly designed for general household use. Please read the Important
S
Safety Information in this instruction manual before using the unit.
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
For specific information about your own blood pressure, CONSULT YOUR
DOCTOR.
N. Date/Time display
O. User ID symbol (A/B)
Important Safety Information
P. Systolic blood pressure
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia Q. Diastolic blood pressure
R. Heartbeat symbol
or arteriosclerosis.
Please read this section carefully before using the unit. (Flashes during measurement)
S. Battery low symbol
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and
self-treatment are dangerous. 2. Preparation
• People with severe blood flow problems, or blood disorders, should consult a
doctor before using the unit, as cuff inflation can cause internal bleeding.
2.1 Using the AC Adapter
(AC Adapter Usage)
Never plug in or unplug the power cord from the electric outlet with wet
1. Insert the AC adapter plug
hands.
(Battery Usage)
into the AC adapter jack on
• If battery fluid should get in your eyes, immediately rinse with plenty of clean
the rear side of the main
water. Consult a doctor immediately.
Caution: unit.
• Indicates a potentially hazardous situation which, if not avoided, may result in
2. Plug the AC adapter into an
minor or moderate injury to the user or patient or damage to the equipment or
other property. electrical outlet.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot express
To disconnect the AC adapter, unplug the AC adapter from the
their consent.
electrical outlet first and then remove the AC adapter plug from the
• Do not use the unit for any purpose other than measuring blood pressure.
main unit.
• Use only the approved arm cuff for this unit. Use of other arm cuffs may result
in incorrect measurement results.
2.2 Installing/Replacing the Batteries
• Make sure that the air tube is not wrapped around other parts of your body
when taking measurements. This could result in injury when the air pressure
1.
in the air tube is increased.
Remove the battery cover.
• Do not leave the cuff wrapped on the arm if taking measurements during the
night. This could result in injury.
• Do not use a mobile phone or other devices that emit electromagnetic fields, 2.
Insert four "AA" batteries
near the unit. This may result in incorrect operation of the unit.
• Do not operate the unit in a moving vehicle (car, airplane). as indicated in the battery
• To inflate the cuff manually, refer to Section 3.3. If the cuff is over inflated, it compartment and then
can cause internal bleeding.
replace the battery cover.
(AC Adapter Usage)
• Use only the original AC adapter designed for this unit. Use of unsupported
Notes:
adapters may damage and/or may be hazardous to the unit.
• If the battery low symbol (
• Plug the AC adapter into the appropriate voltage outlet. Do not use a
then replace all batteries at the same time.
multiple-tap.
• The measurement values continue to be stored in memory even after
• Do not use the AC adapter if the unit or the power cord is damaged. Turn off
the batteries are replaced.
the power and unplug the power cord immediately.
(Battery Usage)
Disposal of used batteries should be carried out in accordance with the
• If battery fluid should get on your skin or clothing, immediately rinse with
national regulations for the disposal of batteries.
plenty of clean water.
• Use only four "AA" alkaline or manganese batteries with this unit. Do not use
other types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned. 2.3 Setting the Date and Time
• Replace old batteries with new ones immediately. Replace all four batteries at
the same time. 1.
Press the button.
• Remove the batteries if the unit will not be used for three months or more.
• Do not use new and used batteries together.
2.
Set the monitor to the correct date and time before
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit and arm cuff. taking a measurement for the first time.
• Do not take measurements after bathing, drinking alcohol or caffeine,
smoking, exercising or eating.
• Do not forcibly bend the arm cuff or bend the air tube excessively.
• When removing the air tube, pull on the air plug at the connection with the
main unit not the tube itself.
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Read and follow the "Important information regarding Electro Magnetic
Compatibility (EMC)" in the Technical Data Section.
• Read and follow the "Correct Disposal of This Product" in the Technical Data
Section when disposing of the device and any used accessories or optional
parts.
1. Overview Year
G H
Main unit: A
3.
Press the O/I START button to store the setting.
Notes:
• If the batteries have been removed for 30 seconds or more, the date
H I
and time setting will need to be reset.
G B
• If the date and time are not set, "-:--" appears during or after
C
F measurement.
D
E
A. Display F. Date/Time setting ( ) button
B. Memory button G. Air jack
C. O/I START ( ) button H. Battery compartment
D. Up/Down ( ) buttons I. AC adapter jack
E. USER ID Selection Switch
(A/B)
3. Using the Unit
3.1 Applying the Arm Cuff
J. Arm cuff (Wide Range Cuff: arm
circumference 22 - 42cm)
Remove tight-fitting clothing or tight rolled up sleeve from your
K. Marker
upper arm.
L. Air tube
Do not place the cuff over thick clothes.
M. Air plug
1. Insert the air plug into the air jack.
Storage case:
2.
Put your arm through the cuff loop.
T
U
V
W
X
3. Position the arm correctly.
Y
Z
AA
T. Average value symbol
U. Memory symbol
V. Irregular heartbeat symbol
The bottom edge of the cuff should be 1 to 2 cm above the elbow.
W. Movement error symbol
Marker (arrow under tube) is centred on the middle of your inner
X. Blood pressure level indicator
arm. Close the fabric fastener FIRMLY.
Y. Deflation symbol
Z. Cuff wrapping guide
AA. Pulse display and Memory
number
1 to 2 cm
Notes:
• When you take a measurement on the right
arm, air tube will be at the side of your
elbow. Be careful not to rest your arm on
the air tube.
• The blood pressure can differ between the right arm and the left arm,
and therefore also the measured blood pressure values can be
different. OMRON recommends to always use the same arm for
measurement. If the values between the two arms differ substantially,
please check with your physician which arm to use for your
measurement.
3.2 How to Sit Correctly
To take a measurement, you need to be
relaxed and comfortably seated, under
comfortable room temperature. No
bathing, drinking alcohol or caffeine,
smoking, exercising or eating 30 minutes
before taking a measurement.
• Sit on a chair with your feet flat on the floor.
• Sit upright with your back straight.
• The cuff should be at the same level as your
heart.
) appears on the display, turn the unit off
3.3 Taking a Reading
Notes:
• To cancel a measurement, press the O/I START button to turn the unit
off and to release the air in the arm cuff.
• Remain still while taking a measurement.
The monitor is designed to take measurements and store the
measurement value in the memory for two people using USER ID A
and USER ID B.
1. Select your USER ID (A/B).
1) Push or buttons to
change.
2.
Press the O/I START button.
2) Push the button to confirm.
Next setting appears.
START INFLATE DEFLATE END COMPLETE
Month
Day Hour
Minute
Cuff Wrapping Guide
If your systolic pressure is more than
220 mmHg
After the cuff starts to inflate, press and hold the O/I START
button until the monitor inflates 30 to 40 mmHg higher than
your expected systolic pressure.
Notes:
• The monitor will not inflate above 299mmHg.
• Do not apply more pressure than necessary.
Cuff Wrapping Guide To Delete All the Values Stored in Memory
The Cuff Wrapping Guide is a unique feature that indicates if the
The values stored in the memory are deleted by USER ID.
cuff is not wrapped tightly enough around the arm. Even when
When the memory symbol (
the is displayed, a blood pressure reading will be taken.
button. Then while holding it down, press the O/I START button
Note: This reading is NOT reliable due to the incorrect wrapping of the simultaneously for about 2 - 3 seconds.
cuff. Please wrap the cuff again, taking care to wrap it correctly
and take the measurement again. When the is displayed, the
cuff is correctly wrapped tightly enough on the arm and the
reading is accurate and reliable.
3.
Remove the arm cuff.
Note: You cannot partially delete values stored in the memory.
4. Press the O/I START button to turn the monitor off.
All values for the user you select will be deleted.
The monitor automatically stores the measurement in its
memory.
4. Troubleshooting and Maintenance
It will automatically turn off after 2 minutes.
4.1 The Icons and Error Messages
Important:
• Recent research suggests that the following
Error Display Cause
values can be used as a guide to high blood
pressure for measurements taken at home.
Irregular heartbeats are
detected.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
Movement during
This criteria is for home blood pressure measurement. measurement.
• Your blood pressure monitor includes an irregular
heartbeat feature. Irregular heartbeats can influence Cuff is not applied correctly.
the results of the measurement. The irregular
heartbeat algorithm automatically determines if the
measurement is usable or needs to be repeated. If the
measurement results are affected by irregular Blink The batteries are low.
heartbeats but the result is valid, the result is shown
together with the irregular heartbeat symbol ( ). If the
irregular heartbeats cause the measurement to be
The batteries are
invalid, no result is shown. If the irregular heartbeat Lit
exhausted.
symbol ( ) is shown after you have taken a measurement, repeat
the measurement. If the irregular heartbeat symbol ( ) is shown
frequently, please make your doctor aware of it. Air plug disconnected.
• If you move during measurement, the movement error
symbol ( ) will appear on the display. Keep still and Arm cuff not applied
repeat the measurement. correctly.
Air is leaking from the arm
cuff.
Note: Wait 2 - 3 minutes before taking another blood pressure
measurement. Waiting between readings allows the arteries to
return to the condition prior to taking the blood pressure
measurement.
Warning:
Cuff over inflated.
Self-diagnosis of measured results and treatment are dangerous.
Please follow the instructions of your doctor.
3.4 Using the Memory Function
The monitor automatically stores the result up to 90 sets for each user
(A and B). It can also calculate an average reading based on the
The arm cuff was inflated
measurements from the last three readings taken within 10 minutes. If
above 299 mmHg
there are only two readings in memory for that period, the average will
when inflating the cuff
be based on two readings. If there is one reading in memory for that
manually.
period, the average will be based on one reading.
Notes:
• If the memory is full, the monitor will delete the oldest readings.
Movement during
• When viewing the reading taken without setting the date and time,
measurement.
"-:--" is displayed instead of the date and time.
To View the Average Value
Clothing is interfering with
the arm cuff.
1.
Select your USER ID (A/B).
2. Device error.
Press the Memory button.
Note: The irregular heartbeat symbol (
messages.
4.2 Troubleshooting
Problem
Note: If there are no measurements results
stored in the memory, the screen to the
right is displayed. Arm cuff not applied
correctly.
The reading is
Movement or talking
To View the Readings Stored in Memory
extremely low (or
during measurement.
high).
1. Press the button, while the average value is displayed.
The Memory number appears
Clothing is interfering
for a second before the pulse
Alternating with the arm cuff.
rate is displayed. The newest
date/time
set is numbered "1".
display
The air tube is not
securely connected
into the main unit.
Arm cuff pressure
does not rise.
2. Press the or button to view the readings stored in
Air is leaking from the
memory.
arm cuff.
: To the older readings
: To the more recent readings
Arm cuff deflates too
The arm cuff is loose.
soon.
Cannot measure or The arm cuff has not
readings are too low been inflated
or too high. sufficiently.
Problem Cause Remedy
Replace the batteries
The batteries are
) appears, first press the Memory
with new ones.
empty.
Nothing happens Refer to section 2.2.
when you press the
The batteries have Insert the batteries with
buttons.
been inserted the correct (+/-) polarity.
incorrectly. Refer to section 2.2.
• Press the O/I START button and repeat
measurement.
• If the problem continues, try replacing the
Other problems.
batteries with new ones.
If this still does not solve the problem, contact
your OMRON retail outlet or distributor.
4.3 Maintenance
To protect your unit from damage, please observe the following:
Remedy • Do not subject the main unit and the cuff to extreme
temperatures, humidity, moisture or direct sunlight.
Remove the arm cuff. Wait
• Do not fold the cuff or tubing tightly.
2 - 3 minutes and then take
• Do not disassemble the unit.
another measurement.
Repeat the steps in section • Do not subject the unit to strong shocks or vibrations
3.3. If this error continues to
(for example, dropping the unit on the floor).
appear, contact your doctor.
• Do not use volatile liquids to clean the main unit.
Carefully read and repeat • Do not wash the arm cuff or immerse it in water.
the steps in section 3.3.
• Do not use petrol, thinners or similar solvents to clean
the arm cuff.
Apply the arm cuff correctly.
Refer to section 3.1. • Do not carry out repairs of any kind yourself. If a defect
occurs, consult your OMRON retail outlet or distributor
You should replace them
as mentioned on the packaging.
with new ones ahead of
time.
Refer to section 2.2.
You should replace them
with new ones at once.
Refer to section 2.2.
Insert the plug securely.
Refer to section 3.1.
Apply the arm cuff correctly.
Refer to section 3.1.
Replace the cuff with the
new one.
Refer to Chapter 5.
• The unit should be cleaned with a soft, dry cloth.
• Use a soft, moistened cloth and soap to clean the arm
Repeat measurement.
cuff.
Remain still and do not talk
during measurement.
Calibration and Service
Refer to section 3.3.
• The accuracy of this blood pressure monitor has been
If "E2" appears repeatedly, carefully tested and is designed for a long service life.
inflate the cuff manually
• It is generally recommended to have the unit inspected
until it is 30 to 40 mmHg
every two years to ensure correct functioning and
above your previous
accuracy. Please consult your authorised OMRON
measurement result.
dealer or the OMRON Customer Service at the address
Refer to section 3.3.
given on the packaging or attached literature.
Do not inflate the cuff above
299 mmHg. 4.4 Storage
Refer to section 3.3.
Keep the unit in its storage case when not in use.
Repeat measurement.
1. Unplug the air tube from the air jack.
Remain still and do not talk
during measurement.
Refer to section 3.3. 2. Gently fold the air tube into the arm cuff.
Note:
Remove any clothing
Do not bend the air tube excessively.
interfering with the arm cuff.
Refer to section 3.1.
Contact your OMRON retail
outlet or distributor.
3. Place the arm cuff and main unit in the
) may also be displayed with error
storage case.
Do not store the unit in the following situations:
Cause Remedy • If the unit is wet.
• Locations exposed to extreme temperatures,
Apply the arm cuff humidity, direct sunlight, dust or corrosive
correctly. vapours.
Refer to section 3.1. • Locations exposed to vibrations, shocks or where it will be at an
angle.
Remain still and do not
talk during
measurement.
5. Optional Parts
Refer to section 3.3.
Remove any clothing
Wide Range Cuff Medium Arm Cuff Large Arm Cuff
interfering with the arm
Arm circumference Arm circumference Arm circumference
cuff.
22 - 42 cm 22 - 32 cm 32 - 42 cm
Refer to section 3.1.
Make sure that the air
tube is connected
securely.
Refer to section 3.1.
CW-9520534-2 CM-9515371-7 CL-9515370-9
Replace the arm cuff
with a new one.
Small Arm Cuff AC Adapter S
Refer to Chapter 5.
Arm circumference
Apply the cuff correctly
17 - 22 cm
so that it is firmly
wrapped around the arm.
Refer to section 3.1.
Inflate the cuff so that it
is 30 to 40 mmHg above CS2-9515373-3 Adapter S-9515336-9
your previous
measurement result.
Refer to section 3.3.
HEM-7214-ARU_A_M04_111020.pdf
6. Technical Data
Product Description Automatic Blood Pressure Monitor
Model OMRON M5 (HEM-7214-ARU)
Display LCD Digital Display
Measurement Method
Oscillometric method
Measurement Range Pressure: 0 to 299 mmHg
Pulse: 40 to 180/min.
Accuracy Pressure: ±3 mmHg
Pulse: ±5% of display reading
Inflation Fuzzy-logic controlled by electric pump
Deflation
Automatic pressure release valve
Memory
90 Measurements with date and time for each user
(A and B)
Rating DC6V 4W
Power Source 4 "AA" batteries 1.5V or AC adapter
(Adapter S-9515336-9,
INPUT AC100-240V 50/60 Hz 0.12A)
Battery Life
Capacity of new alkaline batteries is approx.
900 measurements
Applied Part = Type B
Protection Against
Internally powered ME equipment
Electric Shock
(When using only the batteries)
= Class II ME equipment
(AC adapter)
Operating +10°C to +40°C / Maximum: 30 to 85% RH
temperature/ Humidity
Storage temperature/
-20°C to +60°C / Maximum: 10 to 95% RH / 700-1060hPa
Humidity
Console Weight Approximately 380g without batteries
Cuff Weight Approximately 170g
Outer Dimensions Approximately 123 (w) mm × 85 (h) mm × 158 (l) mm
Cuff Dimensions
Approximately 151 mm × 563 mm (Wide range cuff:
arm circumference 22 to 42 cm)
Cuff Material Nylon and polyester
Package Content Main unit, cuff, instruction manual, quick guide,
storage case, AC adapter, battery set, guarantee
card, blood pressure pass
Note: Subject to technical modification without prior notice.
• This device fulfils the provisions of EC directive 93/42/EEC (Medical Device
Directive).
• This blood pressure monitor is designed according to the European Standard
EN1060, Non-invasive sphygmomanometers Part 1: General Requirements
and Part 3: Supplementary requirements for electromechanical blood
pressure measuring systems.
• This OMRON product is produced under the strict quality system of OMRON
HEALTHCARE Co. Ltd., Japan. The Core component for OMRON blood
pressure monitors, which is the Pressure Sensor, is produced in Japan
Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC's and mobile
(cellular) telephones, medical devices in use may be susceptible to
electromagnetic interference from other devices. Electromagnetic interference
may result in incorrect operation of the medical device and create a potentially
unsafe situation.
Medical devices should also not interfere with other devices.
In order to regulate the requirements for EMC (Electro Magnetic Compatibility)
with the aim to prevent unsafe product situations, the EN60601-1-2:2007
standard has been implemented. This standard defines the levels of immunity to
electromagnetic interferences as well as maximum levels of electromagnetic
emissions for medical devices.
This medical device manufactured by OMRON HEALTHCARE conforms to this
EN60601-1-2:2007 standard for both immunity and emissions.
Nevertheless, special precautions need to be observed:
• Do not use mobile (cellular) telephones and other devices, which generate
strong electrical or electromagnetic fields, near the medical device. This may
result in incorrect operation of the unit and create a potentially unsafe situation.
Recommendation is to keep a minimum distance of 7 m. Verify correct operation
of the device in case the distance is shorter.
Further documentation in accordance with EN60601-1-2:2007 is available at OMRON
HEALTHCARE EUROPE at the address mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it
should not be disposed of, with other household wastes at the end
of its working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate
this product from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
return this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product should not be mixed with other commercial
wastes for disposal.
Manufacturer OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto,
617-0002 JAPAN
OMRON HEALTHCARE EUROPE B.V.
EU-representative
Scorpius 33, 2132 LR Hoofddorp
THE NETHERLANDS
www.omron-healthcare.com
Exclusive ComplectService Ltd.
distributor in 13-14 building, 26 B. Tishinskiy per.,
Russia & importer Moscow 123557, RUSSIA
www.csmedica.ru
Production Facility OMRON (DALIAN) CO., LTD.
Dalian, CHINA
Made in China
12E1291
