Earlex Spraystation 5021 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

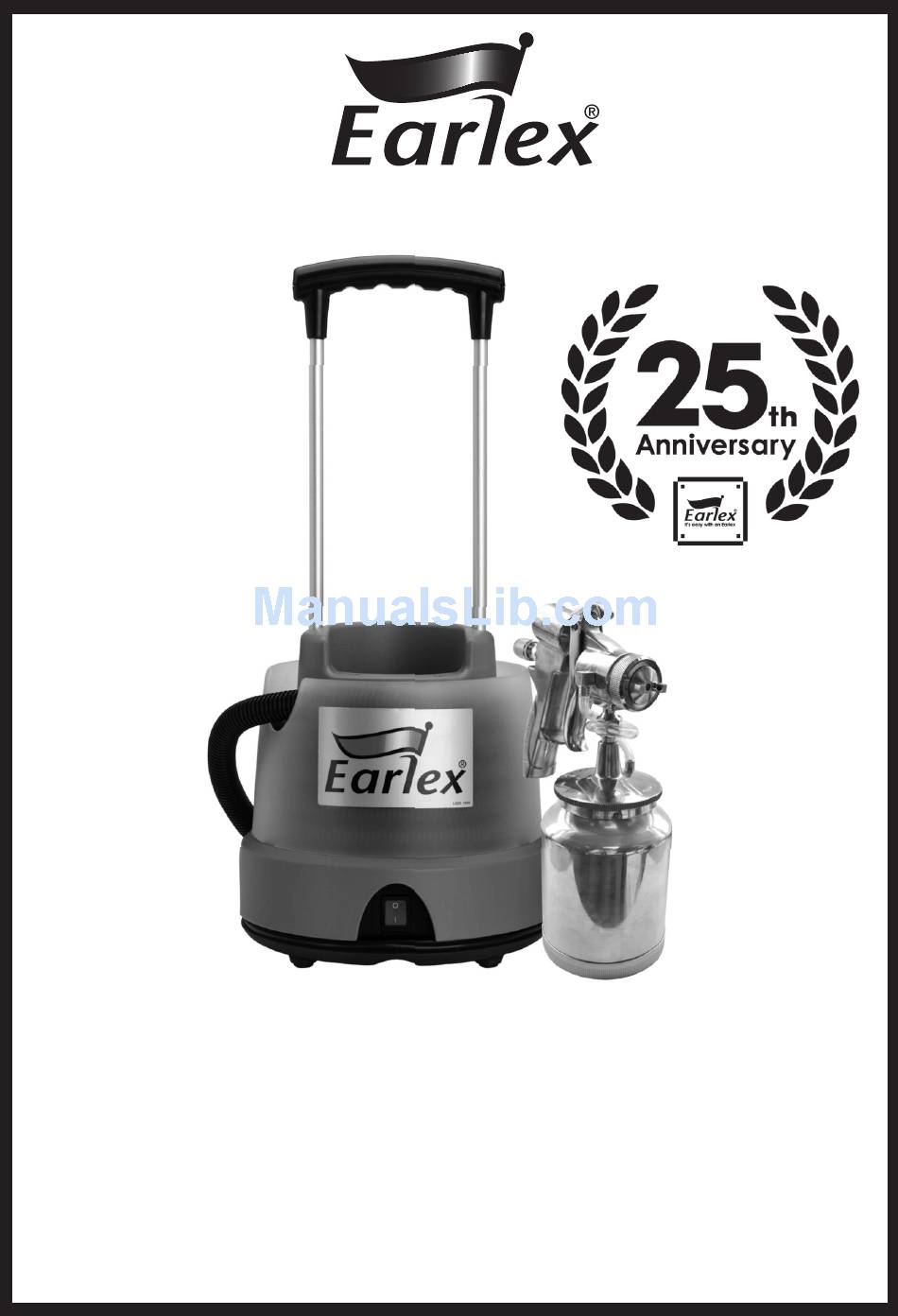

SPRAYSTATION
5021
®
OPERATING INSTRUCTION MANUAL
Thank you for purchasing the professional Earlex SprayStation
.
®
This highly versatile HVLP (high volume of air, low-pressure)
painting system can be used for a wide variety of applications.
BEFORE USE – PLEASE READ THE MANUAL AND SAFETY
INSTRUCTIONS.
Please retain for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spraystation 5021 and is the answer not in the manual?

Questions and answers

Related Manuals for Earlex Spraystation 5021

Summary of Contents for Earlex Spraystation 5021

  • Page 1 SPRAYSTATION 5021 ® OPERATING INSTRUCTION MANUAL Thank you for purchasing the professional Earlex SprayStation ® This highly versatile HVLP (high volume of air, low-pressure) painting system can be used for a wide variety of applications. BEFORE USE – PLEASE READ THE MANUAL AND SAFETY INSTRUCTIONS.
  • Page 2 • NEVER allow children or PRODUCT AND THE unauthorised users to operate MATERIAL BEING USED. or play with the spray equipment. • Your Earlex SprayStation ® 5021 must only be used with • Always read the paint paints and solvents that have manufacturer's thinning a suitable flash point for instructions before use.
  • Page 3 • If the supply cord is damaged it must be replaced by Earlex • Do not use the Air Hose (21) Ltd or our appointed or power cord to pull the unit. agents to avoid a hazard.

  • Page 4: Exploded Parts View

    Exploded Parts View Parts List No. Description Part No. No. Description Part No. Air Cap Ring L1440 13. Lid Assembly with Container Air Cap L1439 Adapter L1459 Air Distributor Plate L1438 14. Lid Seal L1738 Fluid Tip L1444 15. Pick-Up Tube Hang Hook (part of lid assembly) Main Gun Body...
  • Page 5 Place the motor unit onto a clean and level floor space, free from any loose debris, liquids or dust sheets that could block the motor inlet. Uncoil the Air Hose (21) and attach it to the back of the spray gun and the other end to the Earlex SprayStation 5021. Uncoil the power cord ®...

  • Page 6: Spray Patterns

    Spray Patterns The gun has 3 different spray patterns – Horizontal, Vertical and Round (Fig.1). The horizontal and vertical sprays are recommended for large surfaces. The round spray is used for small objects or for areas - such as corners – that are difficult to reach. To change the spray pattern simply rotate the Air Cap (2) until it clicks into the desired position as shown in (Fig.1).

  • Page 7: Cleaning Instructions

    Cleaning Instructions THE SPRAY GUN SHOULD BE THOROUGHLY CLEANED AND THE GLAND NUT SEAL LUBRICATED IMMEDIATELY AFTER EACH USE. IF THE PAINT DRIES INSIDE THE GUN CLEANING WILL BE MUCH MORE DIFFICULT AND MAY RENDER THE GUN INOPERABLE. THIS IS NOT COVERED BY THE GUARANTEE. Flush out the residue paint from the spray gun as follows: Remove the Paint Container (16) from the spray gun.

  • Page 8: Troubleshooting

    Troubleshooting PROBLEM CAUSE ACTION REQUIRED The paint runs on the Paint too diluted Add undiluted material item being sprayed Paint volume too high Reduce the paint flow by turning Adjuster Cap (11) clockwise Moving too slowly Increase speed of application Gun trigger held too long Release Trigger (19) earlier Gun too close...

  • Page 9: Mains Connection

    This unit is a Class II appliance which means it is double-insulated for your protection, no earthing wire is necessary. If the supply cord is damaged, it must be replaced by Earlex Ltd or our appointed agents to avoid a hazard.
  • Page 10 EN 62233; EMC 2004/108/EC, EN55014-1, EN55014-2, EN 61000-3-2, EN 61000-3-3. Tim Hopper Technical Director Copyright & Design Right Reserved © 2012 EARLEX LTD WILL ACCEPT NO RESPONSIBILITY FOR THE USE OF THIS PRODUCT IF USED FOR ANY PURPOSES OTHER THAN THOSE DETAILED HEREIN. GUARANTEE and HELPLINE This product is guaranteed for a period of 24 months against faulty manufacture or materials.
  • Page 11 Notes...
  • Page 12 Earlex Ltd, Opus Park, Moorfield Road, Guildford, Surrey, GU1 1SZ, UK. Tel: +44 (0)1483 454666 Fax: +44 (0)1483 454548 Email: enquiries@earlex.co.uk Website: www.earlex.com © 2012 Earlex Ltd L0936 12/12...
