the results.
Reference convention: Left and right are described as viewed from
the operator’s frame of reference (behind the stroller). Example: The
swivel lockout knob is on the left side of the stroller.
Fine tune tracking of stroller is accomplished by using the tracking
adjustment knob shown in Fig. 13. If your stroller pulls to the left, turn
the knob counter-clockwise 1/2 turn. If your stroller pulls to the right,
turn the knob
clockwise 1/2 turn.
Brake Bar
Repeat Roll test and
(Locked Position)
adjustment until the
stroller rolls straight.

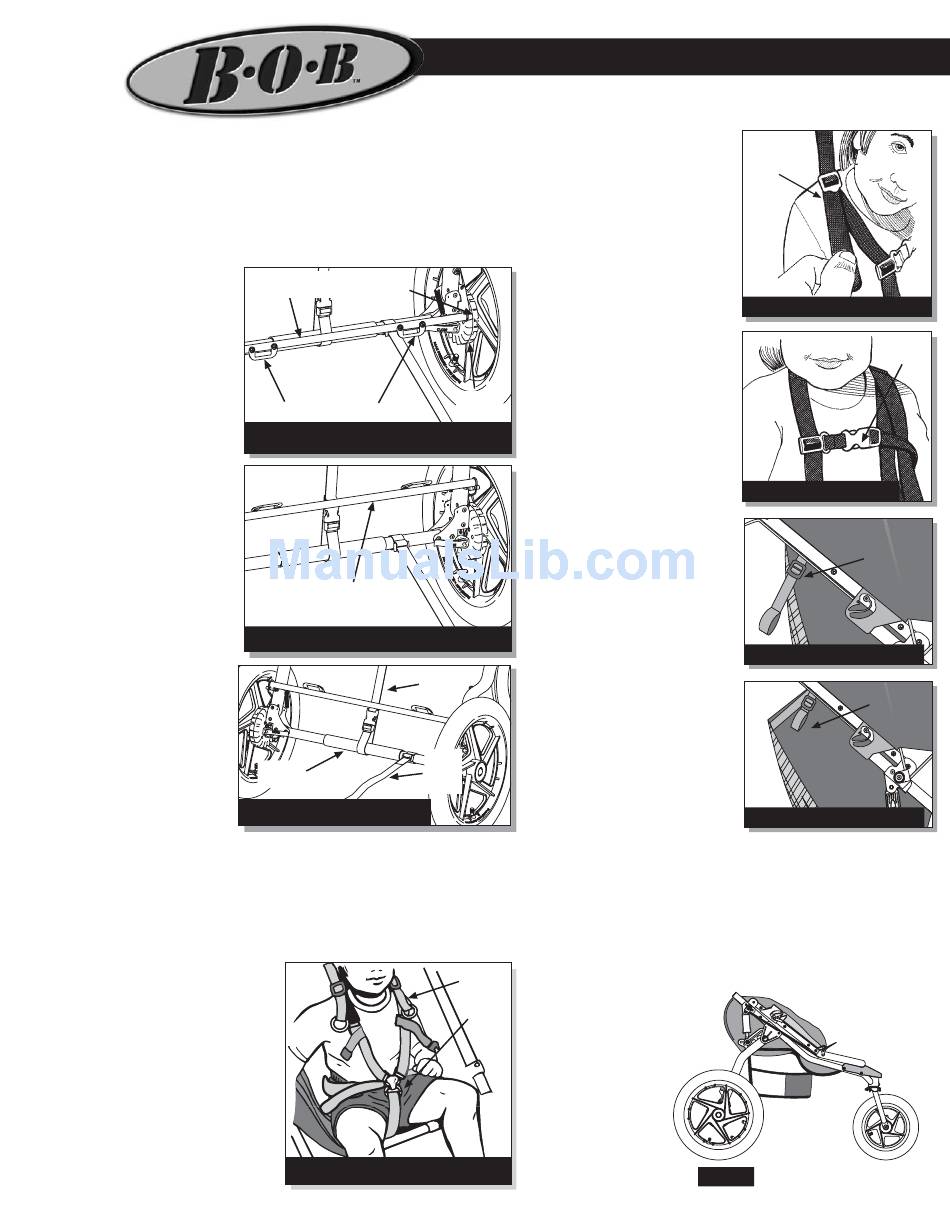

8. PARKING
BRAKE: The brake
is a parking brake, it
prevents the stroller
from moving while
Red Foot Pedals
loading and
unloading. The
Fig. 14
parking brake is not
designed as a
stopping brake. Do
not use the brake to
slow or stop the
stroller. The brake is
intended to park the
stroller on flat
surfaces, not on
inclines. Never
leave your children
in the stroller
(Unlocked Position)
unattended with or
without the parking
Fig. 15
brake set!
To set the parking
brake, press the
brake bar down
into the locked
position (Fig. 14)
with your foot on
one of the red foot
Cross
pedals – making
Tube
sure the locking pin
fully engages the
Fig. 16
locking disk. To
ensure the brake is
set properly, attempt to roll the stroller fore and aft after setting the
brake. If the stroller will not roll, the brake is set properly. To release
the parking brake, lift up on the red foot pedal with your foot until the
brake bar springs up into the fully unlocked position (Fig. 15).
9. AFOD: With the stroller in the fully open position, attach the AFOD
(Anti-Fly-Out-Device) around the cross tube with the plastic buckle
(Fig. 16), so the AFOD is
between parking brake and
low boy cargo pouch. It is
important that the AFOD is
always properly secured
when using the stroller, as
it is part of the child’s seat
restraint system. It is
however, necessary to
release the AFOD in order
to fold the stroller.
10. SUN CANOPY: The
Revolution Duallie features
an independently adjustable
REVOLUTION duallie OWNER’S MANUAL
Locking
Pin
(Engaged)
Locking
Disk
Parking Brake - Locked position.
Brake Bar
Parking Brake - Unlocked position.
AFOD
Wrist
Safety
Strap
AFOD Correctly Attached
Shoulder
Strap
Crotch
Strap
Buckle
Fig. 17
Place straps over shoulders
and secure to buckle.
two position sun canopy for each
seat. To fully open a canopy,
rotate the assembly forward until
the fabric is taut. The rear canopy
flap should be freed from the
Velcro to give additional sun
protection. To reduce the size of
a sun canopy, pull the canopy
toward the handlebar. The
additional fabric can be gathered
by pulling the canopy drawstring
(Fig. 1) and securing the cord lock.
11. SEAT SAFETY HARNESS:
Set parking brake before placing
child in stroller. To secure your
child in the seat, put one shoulder
strap over each shoulder and snap
the male buckle into the female
receiver on the crotch strap (Fig.
18). Adjust shoulder straps to be
snug and secure (Fig. 19).
Connect and adjust the sternum
strap, see Fig. 20.
WARNING: Never place
passengers in the stroller without
securing them in the harness.
Unrestrained passengers can
affect the control of the stroller.
Passenger weight limit - 50 lbs
(23 kg) per seat.
Passenger height limit - 44 in (112
cm).
12. RECLINING SEAT:
Set parking brake before making
any seat adjustments. To recline
the seat, rotate the ladder lock
buckles (Fig. 20) forward thus
releasing the reclining straps. To
raise the seat, pull the reclining
strap loops until you obtain the
desired position. The seat back
can be adjusted to recline
anywhere between the fully upright
position and the fully reclined
position (Fig. 20 & 21).
13. SHOCK ABSORBERS: The
suspension system features two shock positions to provide a
comfortable ride for kids of different weights. The two positions are
shown in Fig. 2. Position 1 is intended for total loads up to 50 lbs.
(22.5 kg), while position 2 is intended for total loads from 50 to 100
lbs. (22.5 to 45 kg). The Revolution Duallie features a sliding track
and spring loaded shock pin that automatically locks in place when
it aligns with either of the two shock positions. Shock position
adjustments should be made with the stroller unloaded. The shock
will lock into position 1 when unfolding the stroller. To use the stiffer
shock position, move the shock
from position 1 to position 2 by
depressing the shock release
button (Fig. 2) with one hand,
and with the other hand, lift
slightly and pull the shock
backward. When the
shock pin is properly
aligned in position 2,
the pin will “snap” into
place. Repeat this
process for the second
shock. To move the
shock from position 2 to
Fig. 22
Shoulder
Strap
Fig. 18
Securely adjust shoulder straps.
Sternum
Strap
Fig. 19
Connect sternum strap.
Seat Reclining
Ladder Lock
Buckles
Fig. 20
Seat in fully upright position.
Reclining
Strap
Loops
Fig. 21
Seat in fully reclined position.
Stroller with handlebar folded.
