Summary of Contents for Associated Electrics RC10 Worlds Car Kit

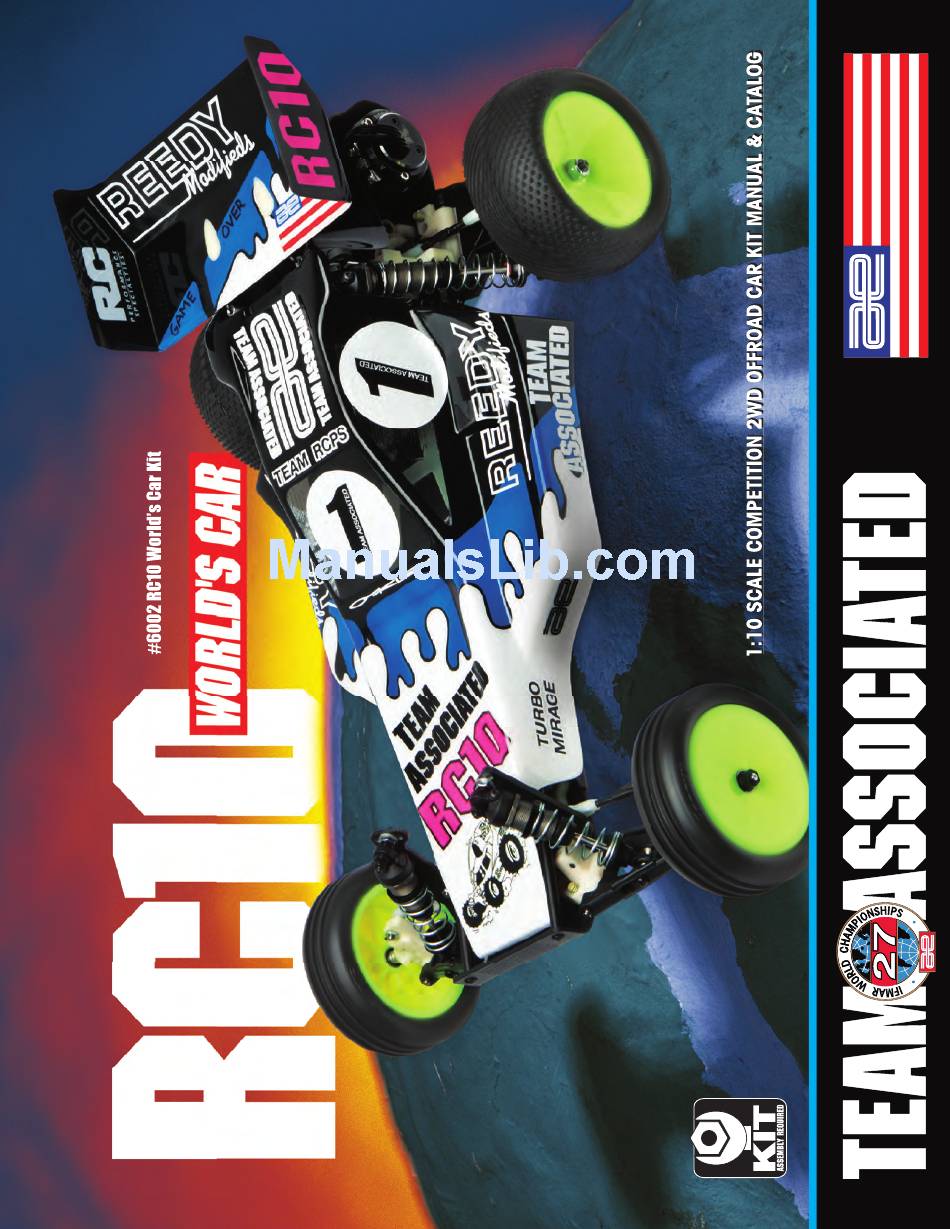

  • Page 2: Cover

    Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and maintaining your new RC10 Worlds Car Kit. Please take a moment to read through this manual to help familiarize yourself with these steps.
  • Page 3 :: Hardware - 1:1 Scale View Cap Head (shcs) Button Head (bhcs) Flat Head (fhcs) 4-40x1/4 (6285) 4-40x3/8 (6292) 0-80x3/16 (6613) 4-40x5/16” (6932) 4-40x1/2 (6922) 2-56x1/8 (9645) (4145, aluminum) 4-40x3/16 (6920) 4-40x3/8 (6924) Flat Head (fhps) w/hole (6929) 4-40x1/4 (6288) 8-32x1/4 (6931) 4-40x1/2 (6925) 4-40x3/8 (6917)

  • Page 4: Table Of Contents

    This symbol indicates a Racers Tip. until you find the exact size. Each part in the foldout has a number assigned to it for ordering replacement parts. Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...

  • Page 5: Nose Plate / Steering Build (Bag A-Aa

    1/14 :: Nose Plate / Steering Build - Bag A-AA - Step 1 You can use 2 or 3 6331 3323 #3323 #8 washers RC10 Body #8 Aluminum based on body height Washer (thick) 6271 Mounts preference. Ballstud (white) .20 (silver) .20 (silver) 6309 RC10WC...

  • Page 6: Front Suspension Build

    :: Front Suspension Build - Bag B - Step 1 6273 7260 LEFT LEFT 6936 Ballstud 4-40 6273 #4 Washer, .30 (silver) Plain Ballstud Aluminum .30 (silver) 7222 6225 Wide Front RC10WC Axle Inline Steering Blocks Press stub axles into steering blocks. Use a hard surface 6210 to push down on!

  • Page 7: Transmission Build (Bag C-Cc

    :: Front Suspension Build - Bag B - Step 4 6260 6279 Turnbuckle, White Ball 1.00” Cups Orient the notch to the left throughout the car. It indicates which end has the left hand threads! Steering Rack Turnbuckle 0.45” (11.5mm) :: Transmission Build - Bag C-CC - Step 1 6579 6579...
  • Page 8 :: Transmission Build - Bag C-CC - Step 3 As you tighten the diff bolt, you will notice the 6575 T-nut ears moving closer to the bottom of the Locking outdrive slot. This compresses the spring t-nut behind the T-nut. The spring should be completely compressed at the same time the 6582 T-nut reaches the end of the slot.

  • Page 9: Rear Bulkhead Build (Bag D-Dd

    :: Transmission Build - Bag C-CC - Step 6 - Bag C-CC - Bag C-CC - Step 6 - Step 6 7485 V2 Slipper Hubs 9603 Slipper Pads 9739 Slipper Spring 9651 81T 48P 6629 There should be Spur Gear 1mm of thread 5-40 Diff 7486...

  • Page 10: Rear Suspension Build

    :: Rear Bulkhead Build - Bag D-DD - Step 3 6932 6327 4-40 x 5/16” RC10 SHCS Wing 6331 Tubes RC10 Body Note: The Press wing Mounts transmission tubes into (white) brace does bulkhead! not have a counter sink for the 6285 #6280 screw.

  • Page 11: Turnbuckles Build

    :: Rear Suspension Build - Bag E - Step 3 7368 6273 Rear Axle Ballstud (Universal) .30 (silver) Shims, 7364 3/16 X .010” RC10WC 0° 9608 Rear Hub Rear Axle Wheel Spacer, blue 7665 aluminum 3977 Drive Shaft 7260 Bearing, Roll Pin 4-40 3/16”...

  • Page 12: Shocks Build

    :: Turnbuckles Build - Bag F - Step 2 6262 6279 Turnbuckle, Ball cups 1.65” (white) Front Camber Turnbuckle 0.86” (22mm) Orient the notch to the left throughout the car. It indicates which end has the left hand threads! Build left and right sides! :: Turnbuckles Build - Bag F - Step 3 6263...
  • Page 13 :: Shocks Build - Bag G-GG - Step 2 7475 6469 V2 .89 Shock cap Threaded o-ring Body (front) 5407 Red O-ring 7481 5407 (use for V2 1.32 rear shocks Threaded O-ring only) Body (rear) 6468 4187 Shock Nylon Pivot Ball 6471 Spacers 7484...

  • Page 14: Chassis Build (Bag H-Hh

    :: Shocks Build - Bag G-GG - Step 5 6473 Shock Bushing 6472 Plastic Nut 6927 4-40 X 3/4” Install two SHCS front shocks! :: Shocks Build - Bag G-GG - Step 6 6473 Shock Bushing Note: Use the two washers (#6936) when running the long wheelbase.

  • Page 15: Electronics Build

    :: Electronics Build - Bag I - Step 1 6333 6279 6262 RC10 Ball cups Turnbuckle, Battery Cup (white) 1.65” and Strap Servo Turnbuckle 0.94” (24mm) 6292 4-40 x 3/8” FHCS :: Electronics Build - Bag I - Step 2 6337 6936 RC10...
  • Page 16 :: Electronics Build - Bag I - Step 4 6925 6339 4-40 x 1/2” RC10WC SHCS Battery Strap Battery not included! 6566 RC10WC Gear Cover and Plug 6285 4-40 x 1/4” SHCS :: Electronics Build - Bag I - Step 5 Note: You can sand the end of the battery strap to better fit between the battery pack...
  • Page 17 :: Wheels / Tires and Body - Bag J - Step 2 3977 6952 Bearing, 8-32 Steel 3/16” X 3/8” Locknut 6222 4-40/5-40 Nylon Locknut, Build left and Build left and black right sides! right sides! :: Wheels / Tires and Body - Bag J - Step 3 Painting Tips: 6332 Body and Wing:...

  • Page 18: Tuning Tips

    :: Tuning Tips Tips for Beginners: Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your vehicle will not be beneficial if you can’t stay on the track. Your goal is consistent laps. Once you can get around the track consistently, start tuning your vehicle.

  • Page 19: Ride Height

    :: Tuning Tips (cont.) Front Camber Links: Changing the length of the camber link is considered a bigger step than adjusting the ball end height on the tower. Shortening the camber link will give the front end less roll and quicken steering response. Lengthening the camber link (or raising the ball end) will give the front more roll and slower steering response.
  • Page 20 :: Shocks 3959 Threaded Shock Collar O-Ring 6428 4187 Nylon Spacer, 1/32” (.030) 5407 Red O-Rings 9645 6299 6299 1/8” E-Clips 6428 Shock End Cap, molded composite 6465 6459 Shock Shaft, 1.02” stroke 6460 Shock Shaft, .71” stroke 6469 3959 6299 6465 Shock Piston, (1, 2, 3)
  • Page 21 :: Turnbuckles / Servo 6260 Turnbuckle, 1.00” 6262 Turnbuckle, 1.65” 6936 6337 6263 Turnbuckle, 2.06” 6264 Turnbuckle, 1.375” 6271 Short Ballstud, stainless steel, short 6279 White Ball Cups 6337 6337 RC10 Servo/Antenna Mount 6922 6922 4-40 x 1/2” FHCS 6924 6924 4-40 x 3/8”...
  • Page 22 :: Front Arm 3977 Bearing, 3/16” X 3/8” 6206 Front Suspension Arm, wide, black 1ea. 6208 RC10 Front Arm Mounts 1ea. 6210 RC10 Front Caster Blocks, 30 deg 1ea. 6222 4-40/5-40 Nylon Locknut, black 6299 6223 RC10 King Pin w/Clips 6225 RC10WC Inline Steering Block 1ea.
  • Page 23 :: Front Shock Tower 6232 RC10WC Front Shock Tower 6472 6271 Short Ballstud, Stainless Steel, .20 6473 6936 6295 4-40 Nuts 6ea. 6472 6472 Plastic Nut 6927 6473 Shock Bushing 6925 4-40 x 1/2” SHCS 6927 4-40 x 3/4” SHCS 6295 6295 6936...
  • Page 24 :: Rear Bulkhead 4436 Set Screw, 4-40 x 5/16” 6332 6189 RC10WC Wing Mounts (White) and wire 6189 6271 Short Ballstud, Stainless Steel, .20 6280 8-32 x 1/2” Aluminum FHPS 6189 6323 RC10 Rear Bulkhead 4436 6932 6327 RC10 Wing Tubes 6331 6331 RC10 Body Mounts (White)
  • Page 25 :: Chassis 3323 #8 Aluminum Thick Washer 6280 8-32 x 1/2” Aluminum FHPS 6288 4-40 X 1/4” BHCS 6302 RC10WC Chassis, Black 6309 RC10WC Front Nose Plate, Black 6321 RC10WC Nose Brace Tubes, Black 6331 RC10 Body Mounts (White) 6332 Body Clips 6917 4-40 X 3/8”...
  • Page 26 :: Reedy Motors and ESC’s :: Factory Team and Option Parts Sonic 540 Mach 2 25.5 Competition Brushless Motor Bearing, 1/4 X 3/8, flanged Sonic 540 Mach 2 21.5 Competition Brushless Motor 1401 FT Titanium Turnbuckle, 1.30”, blue Sonic 540 Mach 2 17.5 Competition Brushless Motor 1402 FT Blue Titanium Turnbuckle, 1.375”...
  • Page 27 447-S AC/DC NiMH Peak Charger 4020 RC12R5.2 Factory Team Kit Low-Profile Bullet Connector, 4mm x 14mm (2) 6002 RC10 Worlds Car Kit Low-Profile Bullet Connector, 4mm x 14mm (10) 7025 RC10T4.2 Factory Team Kit Low-Profile Bullet Connector, 5mm x 14mm (2)
  • Page 28 :: 1/8 Kits and RTR’s :: RePlay Cameras 20501 MGT 4.60 SE RTR (ready-to-run) RP001 Replay XD1080 Complete Camera System 20502 MGT 8.0 Nitro RTR (ready-to-run) RP002 Replay XD720 Complete Camera System 20503 Limited Edition MGT 4.60 Nitro RTR, w/flag body RP021 Replay XD1080 Lens Bezel Kit (ready-to-run)

  • Page 29: Notes

    Driver: Date: Track: Event: Conditions: Indoor Outdoor Temp. Rev.1 Ride Height / Wheelbase Rear Suspension Camber: Front Rear Ride Ride Rear Hub Height: Height: Carriers: 0° 1.5° Wheelbase: Short Long Front Suspension Camber: Rear Drive Shafts: Toe: Dogbone Steering Block: Caster: Inline 15°...
