Summary of Contents for Air Live CU-720IR

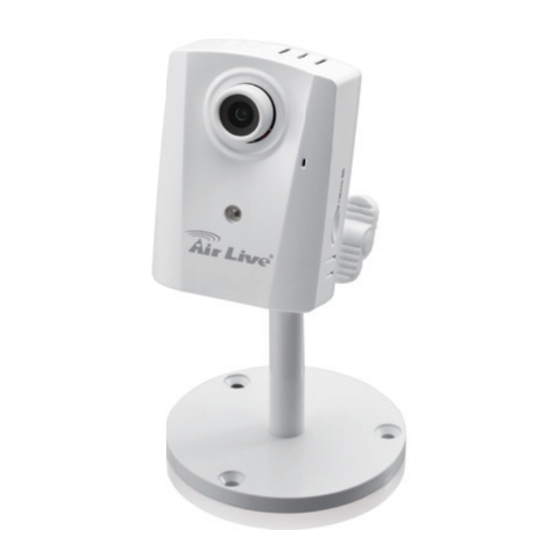

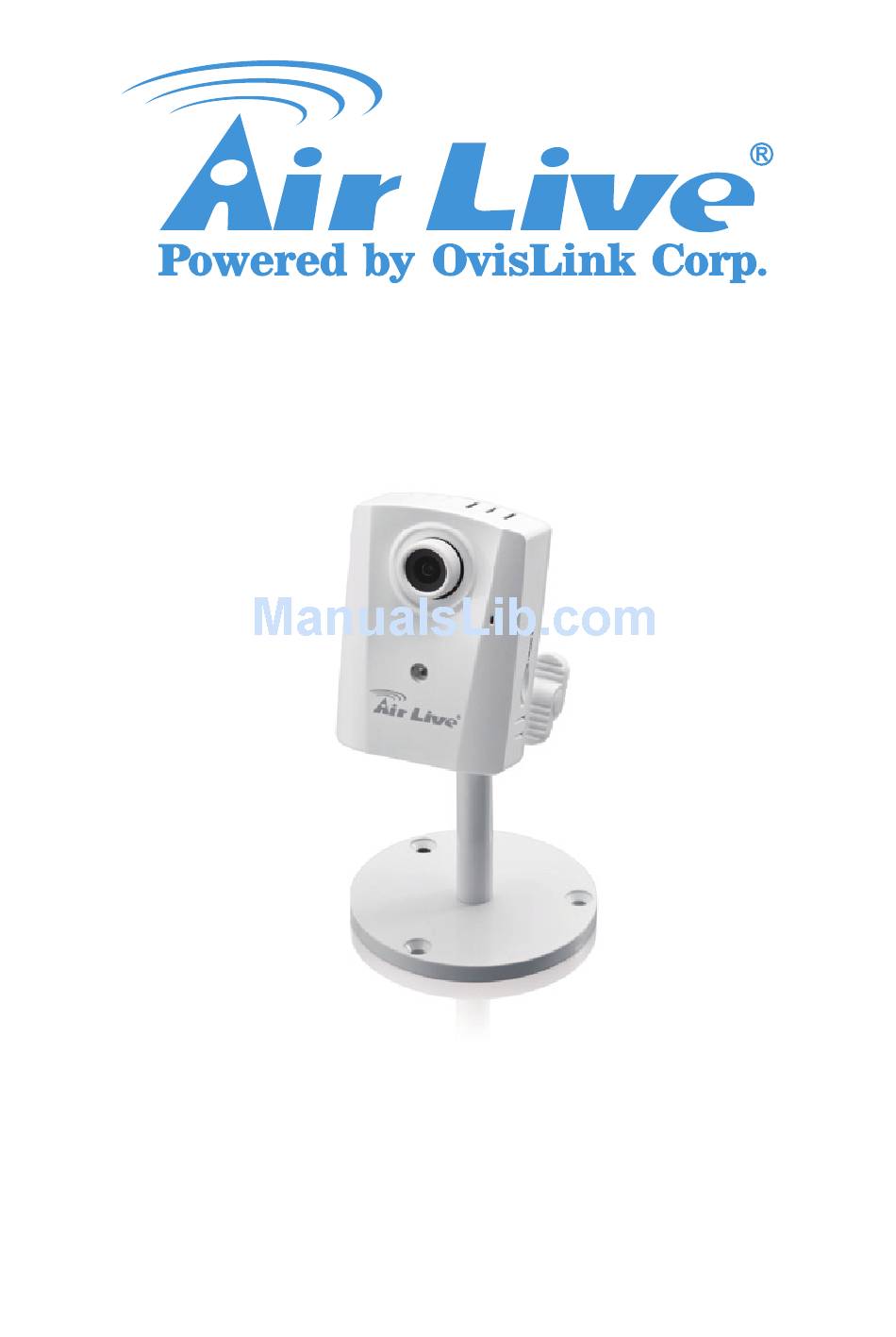

- Page 1 CU-720IR Passive PoE Network Camera Quick Installation Guide...
- Page 2 Support You can download the complete guides and supporting programs from <http://www.airlivesecurity.c om/product/cu-720ir/docum ent>, or scan the QR code here. Please consult with the FAQs <http://www.airlivesecurity.c om/product/cu-720ir/faq> before writing to OvisLink Tech Support Team for further assistance For any other question, please read the user manual in the CD or mail to tech@airlive.com...
- Page 3 CU-720IR Package Contents Please check the package contents and contact your distributor if any part is missing. CU-720IR 12V/1A Stand Power Adaptor with Screws CU-720IR 720P Day/Night CU-720IR Declaration of Conformity We, Manufacturer/Importer OvisLink Corp. 12V Passive PoE 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist.,...
- Page 4 I/O Interface Microphone IR LED MicroSD Card Slot 12V / 1A RJ45 / Reset Button 3.5mm DC-in Passive PoE Audio output...
- Page 5 Before Using the Camera Important: Please insert an empty MicroSD card to prevent from any data lost. Capacity of 32/64GB and Class 10 is recommended. 64GB 64GB/ Class10 MicroSD...
-
Page 6: Mount The Camera
Mount the Camera Attach the camera with the stand and place the camera on the table or fix it onto the ceiling or wall with screws. -
Page 7: Power Up The Camera
Power up the Camera Connect the 12V1A adaptor to power up the camera. 12V / 1A If you need 2-way audio function, please attach a speaker to the audio port. Speaker 3.5mm Audio Cable... - Page 8 Using the Passive PoE Or you can choose the PoE-1P to supply the power. Power Over Ethernet Passive CU-720IR POE-1P Power Over Ethernet PoE Out Router Power Adaptor 12V/1A Please use the 12V/1A adaptor and DO NOT connect the camera to any other standard PoE switch (48V) to prevent from any damage caused.
- Page 9 Wireless Local LAN Before you viewing the camera, please make sure CU-720IR and mobile device are at same WLAN. A i r L i v e i n Y o u i f e ! A i r L i v e i...
- Page 10 Download the CamPro Mobile Please visit App Store or Google Play to download CamPro Mobile. You can use QR code scanner software directly or simply search the “AirLive CamPro Mobile" App Store Google Play...
- Page 11 Start the CamPro Mobile Click the “CamPro Mobile” icon on your device. Press "Setup"...
- Page 12 Search and Add the Camera Press "Add" to start to search camera.
- Page 13 Search and Add the Camera Press "Auto Search"...
- Page 14 Search and Add the Camera Slide the list and select the camera of which you want to view CU-720IR...
- Page 15 Search and Add the Camera Edit the information and User Name/Password. And click “Save”. Default User Name/Password is admin/airlive CU-720IR...
- Page 16 Rename the Camera For easy memory, you can rename the camera. For example, you can name this camera by "Babys Room". Babys Room CU-720IR...
- Page 17 Camea Live View Press "Back" to 4-channel live viewing. Babys Room...
-
Page 18: Camera Live View
Camera Live View You can select any channel to enlarge the video or 4-channel view by tapping the screen. - Page 19 Adjust the view angle and focus Once you have the camera view, you need to adjust the camera to the desired viewing angle. Also you need to adjust the focus ring to have the clearest view.
-
Page 20: Two-Way Audio
Two-Way Audio Now you can do free voice communication. Please switch to single channel and enable the audio function. Transmit Audio from Transmit Audio from Device to Camera Camera to Device... -
Page 21: Download And Playback
Download and Playback You can also view the recording files in MicroSD card and download them into your device. Please switch to single channel and press " " to view the recording list from You will see the playback list and click the file which you want to playback. - Page 22 Download and Playback Click “Play” to playback video, “Save” to save the video clip to device or “Cancel” to select another file. For Android system, you can preview the saved video file on Android device. For iOS system, you need to connect to iTunes for viewing the saved video.
- Page 23 Other Ways to View the Camera In addition, we provide you some other way to view the camera. You can choose: 1. DIPS ID DIPS ID is an unique number of camera. You can search and view the camera by DIPS ID. 2.
- Page 24 Viewing by DIPS ID Back to step.11, you can see the Device ID number on the screen. Just input this DIPS ID number and query it, you will get the camera information and be able to view the video after save. CU-720IR...
- Page 25 DIPS ID on Web UI You can also use DIPS ID to search and view camera in web UI. Please go to http://www.airlive.com/index.dips.2011-0528.php and input the DIPS ID. Press ok You will see the camera IP address and port number shown on the screen. Please press "Go" to access into the camera web UI.
- Page 26 Internet Viewing by AirLive View Please go to http://www.airliveview.com/ Please follow the AirLive View Installation Guide to complete the camera search and live view.
- Page 27 More Settings on Camera Web UI You can do more detail settings on the camera web UI. Please install the IP Wizard software boundled in the CD to search the camera. Camera will get an IP address automatically if it is connected to modem/router by DHCP mode and please let the computers and camera at same LAN.
