Electric Log Splitter
model number 060-3895-8 | contact us: 1.866.523.5218
IMPORTANT:
Instruction
Read and follow all safety rules and operating
Manual
instructions before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 060-3895-8 and is the answer not in the manual?

Questions and answers

Warren Cook
April 4, 2025

Need a foot control

1 comments:
Mr. Anderson
May 14, 2025

The Yardworks log splitter model 060-3895-8 does not mention or support a foot control option. It uses a ZHB control system that requires two-hand operation: the left hand on the hydraulic control lever and the right hand on the pushbutton switch. This safety system disables movement if either hand is removed.

This answer is automatically generated

Ed
March 27, 2025

Yard works motor 74

1 comments:
Mr. Anderson
March 27, 2025

The available information mentions a motor as part of the Yardworks 060-3895-8 log splitter but does not provide specific details such as power, voltage, or frequency. However, it does state that the motor should be connected to an extension cord no longer than 32.5 feet (10 meters) with a cross-section of no less than 1/8 inch (2.5 mm) to ensure proper operation. Additionally, the electrical circuit should have a ground connection and a regulation differential switch upstream.

This answer is automatically generated

Russell E Shaw
March 12, 2025

Part 93 switch box,

1 comments:
Mr. Anderson
May 14, 2025

The switch box (part number 060-3895-8) for Yardworks equipment houses the controls for operating the log splitter. It likely contains electrical components such as the switch and fuse, enabling the user to start or stop the machine safely.

This answer is automatically generated

john Barrett
February 23, 2025

Looking for part 23

1 comments:
Mr. Anderson
February 23, 2025

Part 23 for Yardworks model 060-3895-8 is the piston rod seal.

This answer is automatically generated

Steve Morrison
June 30, 2025

I have been using splitter for about a year,it started making some odd noise .now splitter won't return to open position.The last time I used it the motor was running and by itself the ram moved forward by itself and now doesn't retract.

Kurt
June 23, 2025

how to check oil level

Brian Bagley
May 30, 2025

Where can get replacement wheels for log splitter

Leslie
May 26, 2025

Where can I find replacement wheels for a yardworks log splitter?

Tom
April 27, 2025

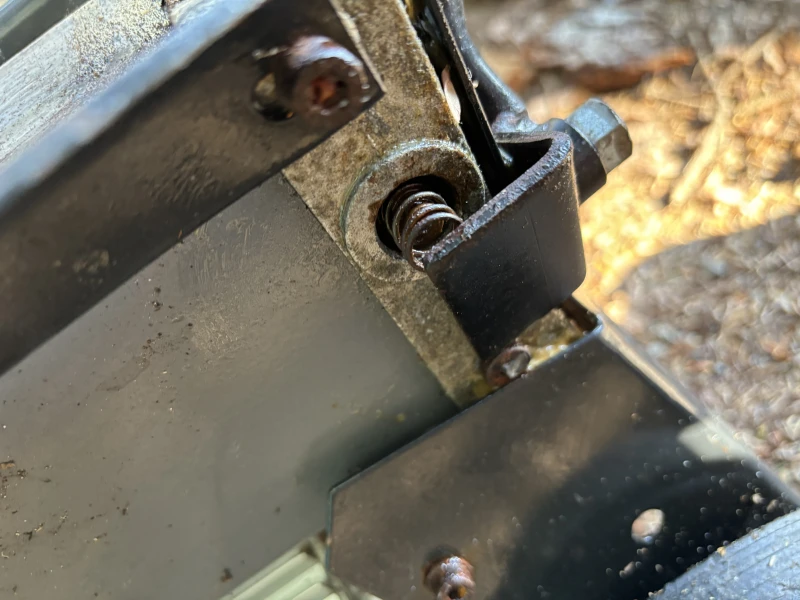

Piston on splitter won’t return after splitting a log. Pin is seized

User image 680d7c6c4d062
Dan
March 26, 2025

What oil do you use for hydraulics 6 ton splitter

Summary of Contents for Yardworks 060-3895-8

  • Page 1 Electric Log Splitter model number 060-3895-8 | contact us: 1.866.523.5218 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.
  • Page 2 060-3895-8 | contact us: 1.866.523.5218 Specifications Know Your Log Splitter Exploded View Parts List Operation Maintenance Troubleshooting Safety Warnings, Instructions, and Symbols Warranty ELECTRIC LOG SPLITTER Model Number 060-3895-8 Motor 120 V 60 Hz 15 A 1 3/4 HP Log Capacity (Diameter) 2 –...
  • Page 3: Parts List

    060-3895-8 | contact us: 1.866.523.5218 Bolt the support leg to the log splitter, lift the log splitter by the handles at both ends, and place it on a stable, flat, and level work surface that is 24 – 30 (60 –...
  • Page 4: Know Your Log Splitter

    060-3895-8 | contact us: 1.866.523.5218 Replace original log pusher with the duo-cut blade. This enables your machine to have twice the effective splitting capacity of similarly rated electric log splitters and ensures that if a knot is encountered at one end, it will still split from the other.
  • Page 5: Maximum Pressure Limitingscrew

    060-3895-8 | contact us: 1.866.523.5218 Before operating the log splitter, loosen bleed screw several rotations, until air is able to enter and escape from the oil tank smoothly. Airflow should be detectable through hole in the bleed screw when the log splitter is in use.
  • Page 6: Exploded View

    060-3895-8 | contact us: 1.866.523.5218...
  • Page 7 060-3895-8 | contact us: 1.866.523.5218 Item Description Item Description Lever mount nut Log retaining plate Nut cap Spring washer Lever Screw Lever knob Guard plate Flat washer Copper gasket Nut plug Screw Washer groupware O-ring Valve sleeve Snap washer-shaft...
  • Page 8 060-3895-8 | contact us: 1.866.523.5218 Item Description Item Description Gear pump cover Connection terminal Spring Capacitor Gear housing plate Switch Circlip Switch box Gear shaft Waterproof underlay Steel ball Left motor support shoe Gear Right motor support shoe...
  • Page 9: Wiring Diagram

    060-3895-8 | contact us: 1.866.523.5218 OPERATING CONDITIONS This log splitter is intended for household use. It is designed to operate in ambient temperatures between -20 and 40 C (-4º to 104ºF). The log splitter can be stored or transported in ambient...
  • Page 10 060-3895-8 | contact us: 1.866.523.5218 Operator must be positioned at the control end of the log splitter behind the dashed line shown when the ram is being operated. This log splitter is equipped with a ZHB control system, which means that the operator must use both hands.
  • Page 11: Freeing A Jammed Log

    060-3895-8 | contact us: 1.866.523.5218 Always set the log firmly on the log retaining plates and the work table. Make sure the log will not twist, rock, or slip while it is being split. Do not force the blade by splitting the log on the upper part.
  • Page 12: Replacing The Hydraulic Oil

    060-3895-8 | contact us: 1.866.523.5218 REPLACING THE HYDRAULIC OIL Replace the hydraulic oil in the log splitter after every 150 hours of use. Follow the procedure below. • Verify that all moving parts have stopped and that the log splitter is unplugged.
  • Page 13: Troubleshooting

    060-3895-8 | contact us: 1.866.523.5218 Problem Cause Remedy Refer to the section entitled The log is not positioned “operation” for instructions properly. on proper log loading. The size or hardness of the Reduce the size of the log...
  • Page 14 060-3895-8 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product effectively and safely.
  • Page 15 060-3895-8 | contact us: 1.866.523.5218 Symbol Name Designation/Explanation Improper use of extension cords may cause inefficient operation of the log splitter, which may result in overheating. Verify that the extension cord is no longer than 32.5’ (10 m) and that its cross- EXTENSION section is no less than 1/8”...
  • Page 16 060-3895-8 | contact us: 1.866.523.5218 Symbol Name Designation/Explanation Keep your hands away from splits and cracks that open in the log. They may close suddenly, which could cause severe crushing or amputation. Do not remove jammed logs using PROTECT YOUR your hands.
  • Page 17: Two-Year Limited Warranty

    These parts are warranted to the original purchaser to be free from defects in material and workmanship for a period of one hundred twenty (120) days from the date of retail purchase. YARDWORKS CANADA will not be liable for incidental or consequential loss or damage.
  • Page 18 060-3895-8 | contact us: 1.866.523.5218...
  • Page 19 060-3895-8 | contact us: 1.866.523.5218...
  • Page 20 Made in China. Imported by YardWorks Canada Toronto, Canada M4S 2B8...
