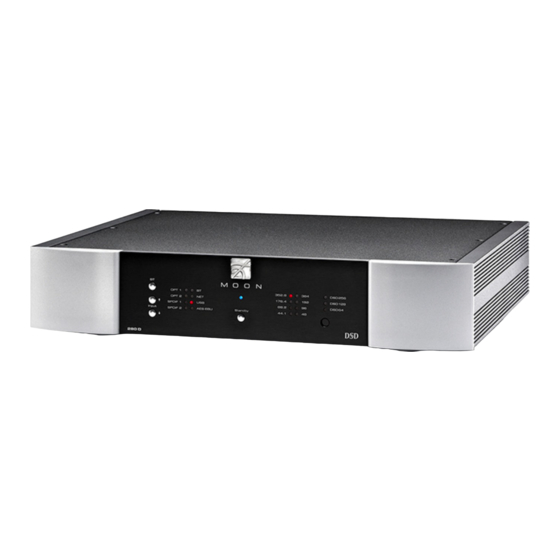

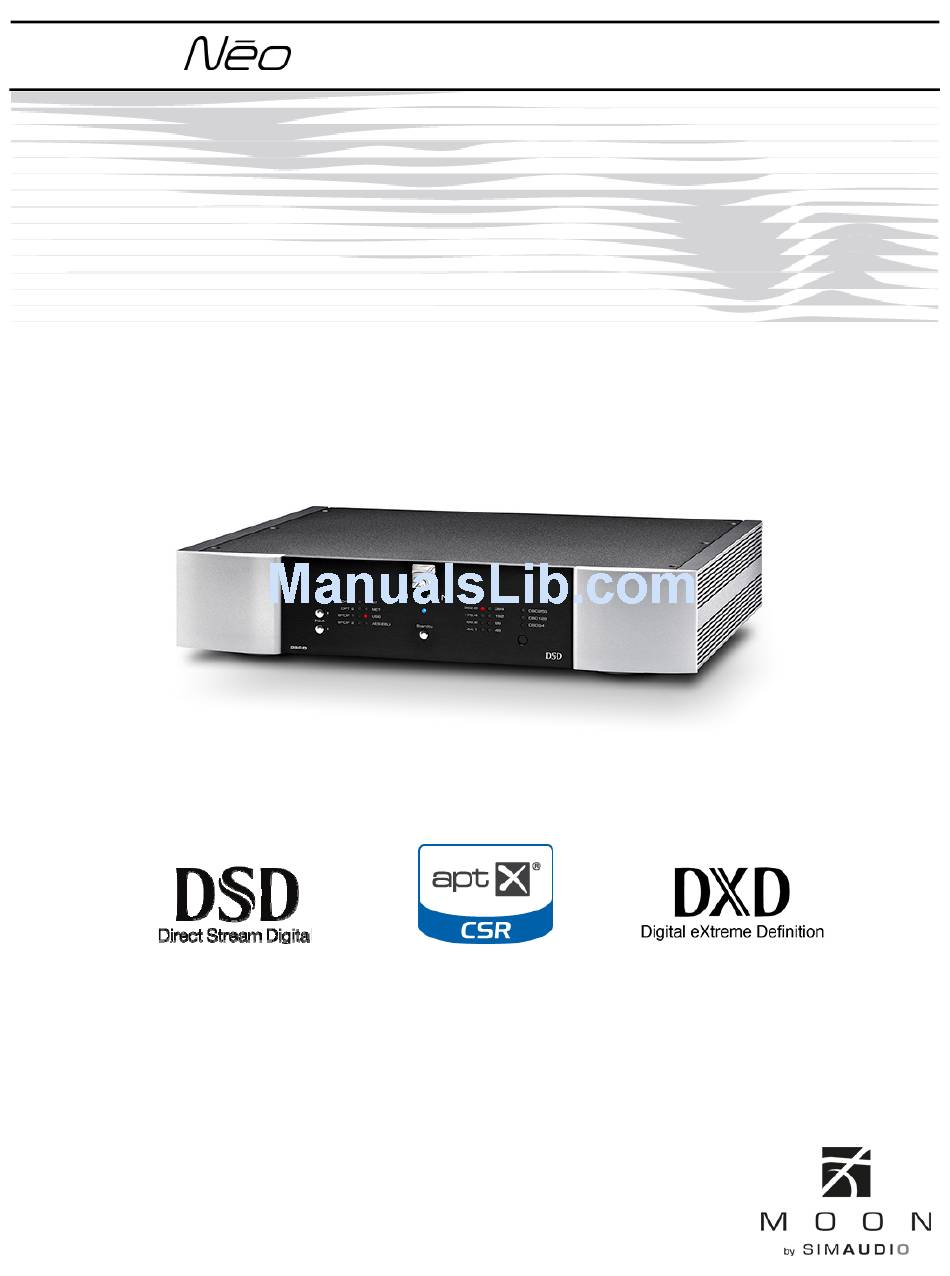

  • Page 1 280D Series 32-bit Digital-to-Analog Converter Owner’s Manual...
  • Page 2 280D Nēo Series...

  • Page 3: Important Safety Instructions

    TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. FCC information for MOON 280D Digital-to-Analog Converters equipped with the aptX Bluetooth module and MiND Music Streamer module: This unit contains Transmitter Module FCC ID : SSSBC127-X and Transmitter Module FCC ID : ZUCSEDMP3.
  • Page 4 Nēo 280D, immediately disconnect it from the component. To completely disconnect this AC mains and take it to your MOON dealer for a apparatus from the AC mains, disconnect the complete check-up. power supply cord plug from the AC receptacle.

  • Page 5: Table Of Contents

    Owner’s Manual Table of Contents Introduction Unpacking Installation & Placement Front Panel Controls Rear Panel Connections SimLink™ Operating the Nēo 280D Balanced Operation Remote Control Operation Specifications www.simaudio.com Simaudio Ltd., 1345 Newton Road Boucherville, Québec J4B 5H2 CANADA Date Code: 20150315...

  • Page 6: Introduction

    280D Nēo Series Introduction Fully asynchronous DAC supports native DSD64, DSD128 Thank you for selecting the MOON Nēo 280D Digital- and DSD256 (USB only) and PCM up to 32-bit/384kHz to-Analog Converter (DAC) as a part of your including DXD (USB only) music/cinema system.

  • Page 7: Unpacking

    Owner’s Manual Unpacking The Nēo 280D should be removed from its box with care. The following accessories should be included inside the box with your Digital-to-Analog Converter: AC power cable ‘CRM-2’ remote control with two ‘AA’ batteries ‘SimLink™’ cable with 1/8” mini plug terminations on each end Wi-Fi antenna for “MiND”...

  • Page 8: Front Panel Controls

    30 second time limit has been setting) or off. The blue “Standby” LED will blink twice exceeded. When “MOON 280D…” appears in the when the EuP mode has been turned off and will blink Bluetooth device list of your smart device, simply four times when the EuP mode has been turned on.

  • Page 9: Rear Panel Connections

    All of these inputs correspond to the front panel LED input indicators. Don’t hesitate to use high quality digital interconnect cables*. * Please speak with your MOON Authorized Retailer about the benefits of high quality cables for your system, and superior quality AC wall outlet.

  • Page 10: Simlink

    LED. will blink two (2) times. that the 280D is now powered up and ready for use. If you are using a MOON CD Transport or CD Player with your 280D you should make a SimLink™ connection On and Off Sequence between the “CD”s SimLink™...

  • Page 11: Remote Control Operation

    The Nēo 280D Digital-to-Analog Converter uses the ‘CRM-2’ full-function remote control (figure 6). It operates on the Philips RC-5 communication protocol and is can be used with other MOON components. The ‘CRM-2’ remote uses two AA batteries (included). To install them, simply slide the back plate off in the direction of the arrow;...
  • Page 12 280D Nēo Series Remote operation with multiple MOON components Figure 4: Remote Operation with SimLink™ In figure 4 we have a Nēo 280D (with the MiND option installed) connected to a Nēo 340i Integrated Amplifier via their respective SimLink™ ports (using a 1/8” mini-jack cable). When you launch the MiND App on your Apple smart device and select this system’s ZONE, the 280D and 340i will both turn on.

  • Page 13: Specifications

    Owner’s Manual Specifications Configuration Balanced Differential Digital / Analog Power Supply Transformers 25VA / 10VA Power Supply Capacitance 26,400μF Digital Filter / Digital-to-Analog Converters Fully asynchronous 32-bit Frequency Response (full range) 2Hz - 100kHz +0/-3dB THD @1kHz, 0dBFS (A-weighted) < 0.001% Intermodulation Distortion <...
  • Page 14 280D Nēo Series Specifications (cont’d) Balanced Pin Assignment: Pin 1 Ground Pin 2 Positive Pin 3 Negative Optional MiND Music Streamer: Signal Input – Wired 100Base-T RJ45 Ethernet interface Signal Input – Wireless IEEE 802.11 b/g/n Wi-Fi interface NOTE: If you require the RS-232 codes for your Nēo 280D, please visit the "Contact Us" page and complete the "Information request"...
