TYM T1003 Operator's Manual
  1. Manuals
  2. Brands
  3. TYM Manuals
  4. Tractor
  5. T1003
  6. Operator's manual

TYM T1003 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TYM

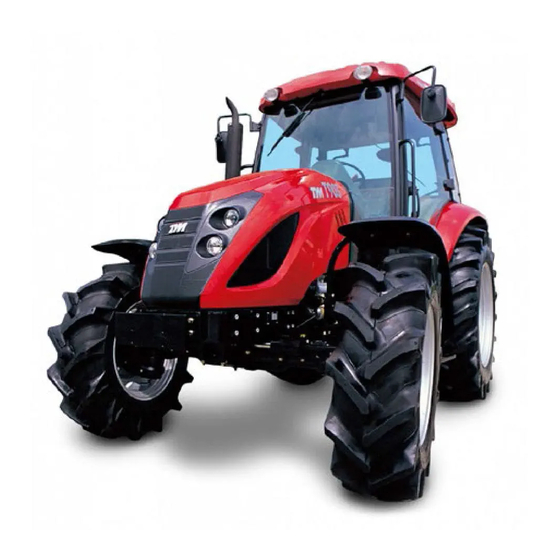

OPERATOR'S MANUAL
FOR
TRACTORS
(T1003/T903/T803)
#604-9, Namsan-dong, Changwon-city, Kyungnam, Korea
■ ■ ■ ■
TEL:82-55-279-4379, FAX:82-55-279-4447
■ ■ ■ ■
www.tym.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T1003 and is the answer not in the manual?

Questions and answers

Norma morris
April 2, 2025

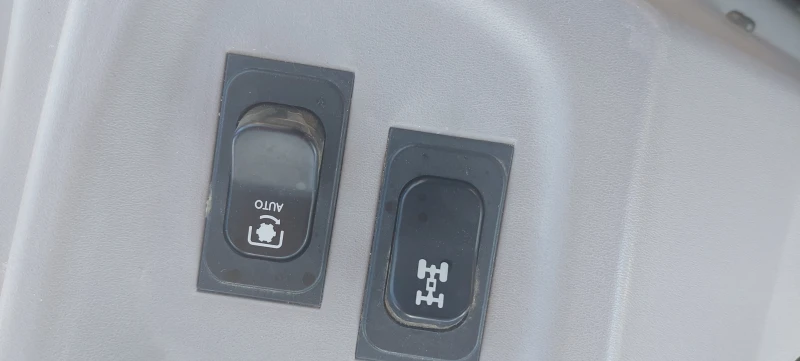

Is a bottom in right side ,what is that for. What iss the fountion

User image 67edb2bebbac2
0
2 comments:
Mr. Anderson
April 2, 2025

The button on the right side of the TYM T1003 is the PTO ON/OFF switch. Pulling the switch up turns the PTO ON and activates the indicator light. Pushing it down turns the PTO OFF and the indicator light goes off.

This answer is automatically generated

0
Norma morris
April 2, 2025

@Mr. Anderson .ok in the big yellow in the top is also ptu. This tractor was my husband tractor. In a need to learned to used now.

0

Subscribe to Our Youtube Channel

Related Manuals for TYM T1003

Summary of Contents for TYM T1003

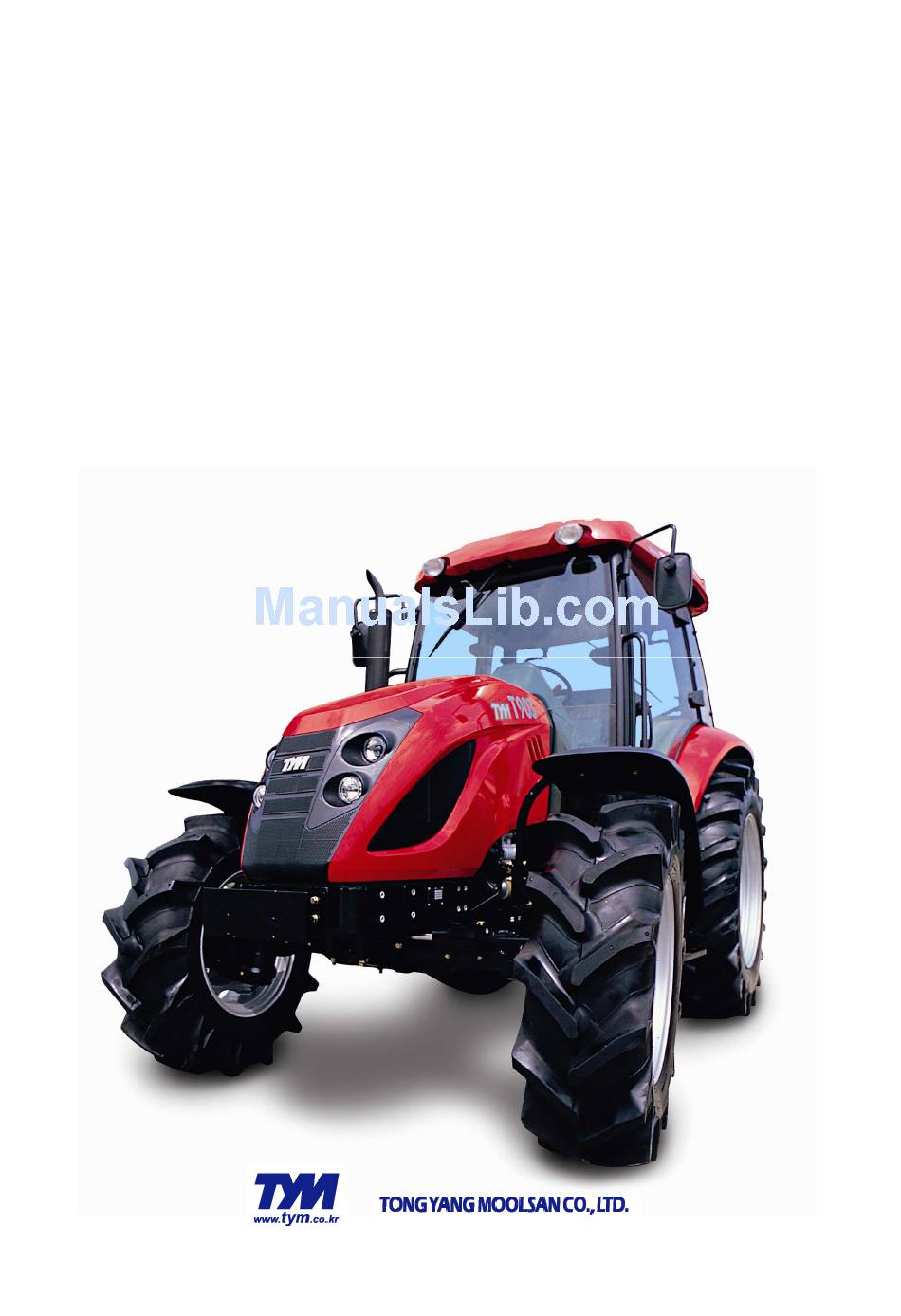

  • Page 1 OPERATOR’S MANUAL TRACTORS (T1003/T903/T803) #604-9, Namsan-dong, Changwon-city, Kyungnam, Korea ■ ■ ■ ■ TEL:82-55-279-4379, FAX:82-55-279-4447 ■ ■ ■ ■ www.tym.co.kr...
