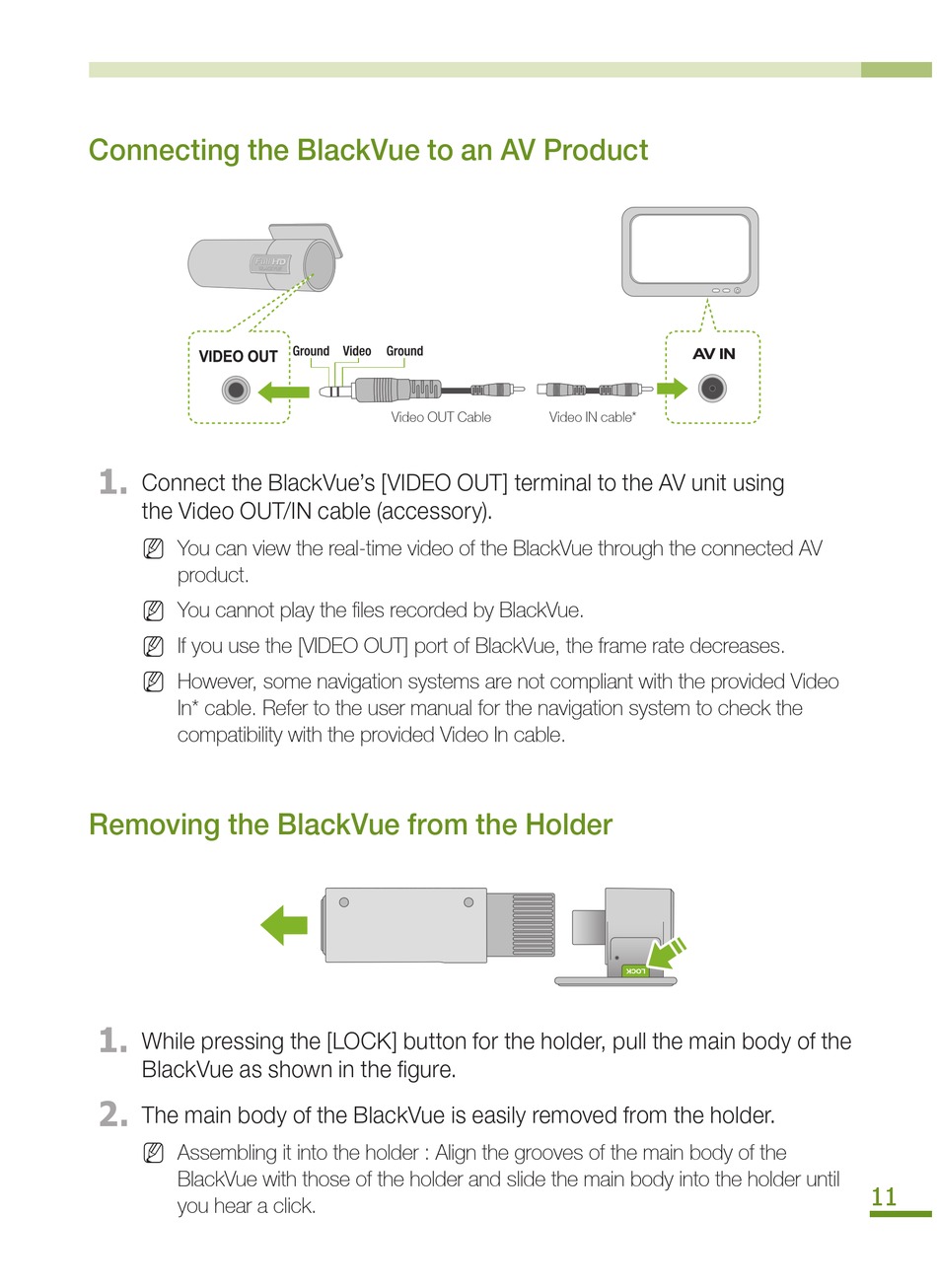

Connecting the BlackVue to an AV Product
1.
Connect the BlackVue's [VIDEO OUT] terminal to the AV unit using
the Video OUT/IN cable (accessory).
N YouXcanXviewXtheXreal-timeXvideoXofXtheXBlackVueXthroughXtheXconnectedXAVX
X
product.
N YouXcannotXplayXtheXfilesXrecordedXbyXBlackVue.
X
N IfXyouXuseXtheX[VIDEOXOUT]XportXofXBlackVue,XtheXframeXrateXdecreases.
X
N However,XsomeXnavigationXsystemsXareXnotXcompliantXwithXtheXprovidedXVideoX
X
In*Xcable.XReferXtoXtheXuserXmanualXforXtheXnavigationXsystemXtoXcheckXtheX
compatibilityXwithXtheXprovidedXVideoXInXcable.
Removing the BlackVue from the Holder
1.
While pressing the [LOCK] button for the holder, pull the main body of the
BlackVue as shown in the figure.
2.
The main body of the BlackVue is easily removed from the holder.
N AssemblingXitXintoXtheXholderX:XAlignXtheXgroovesXofXtheXmainXbodyXofXtheX
X
BlackVueXwithXthoseXofXtheXholderXandXslideXtheXmainXbodyXintoXtheXholderXuntilX
youXhearXaXclick.X
VideoXOUTXCable
VideoXINXcable*
11
