geo-FENNEL FL 60 Maxi Liner Operating Instructions

Tilt Alarm Function
FL60 Maxi Liner is equipped with an automatic TILT function. If level of a laser level is disturbed the instrument will
readjust itself (within the self levelling range). If level is disturbed at large range a height offset will be caused.
This will be avoided by the TILT function.
The instrument will shut off even within the self-levelling range.
Approx. 1 minute after FL60 has been switched on the TILT-Function will be activated automatically.
The red LED indicates that TILT-function is activated. If the level is now disturbed the unit will not read-
just itself (the lines are blinking)
To deactivate TILT-function press TILT-button again.
Technical Data
Automatic levelling range
Accuracy
Operating Range
without receiver
with receiver
Fan angle Hz-Lines
Operating Time / Power Supply
or
Temperature Range
Visible Laser Diode / Laser Class
Indication
Accuracy
Tones
Operating Time / Power Supply
Ref:.. \operat98\instructions 11\775600.qxp 19-01-11
FL60
±3°
±1mm / 10m
Ø 20m * *depending on surrounding
Ø 80m * & average light conditions
130° each
12h NiMH
24h Alkaline
-10° to +40°C
635nm / 2M
Receiver FR44
front: LCD-Display
side: LED
± 1mm
3
100h (1 x 9v)

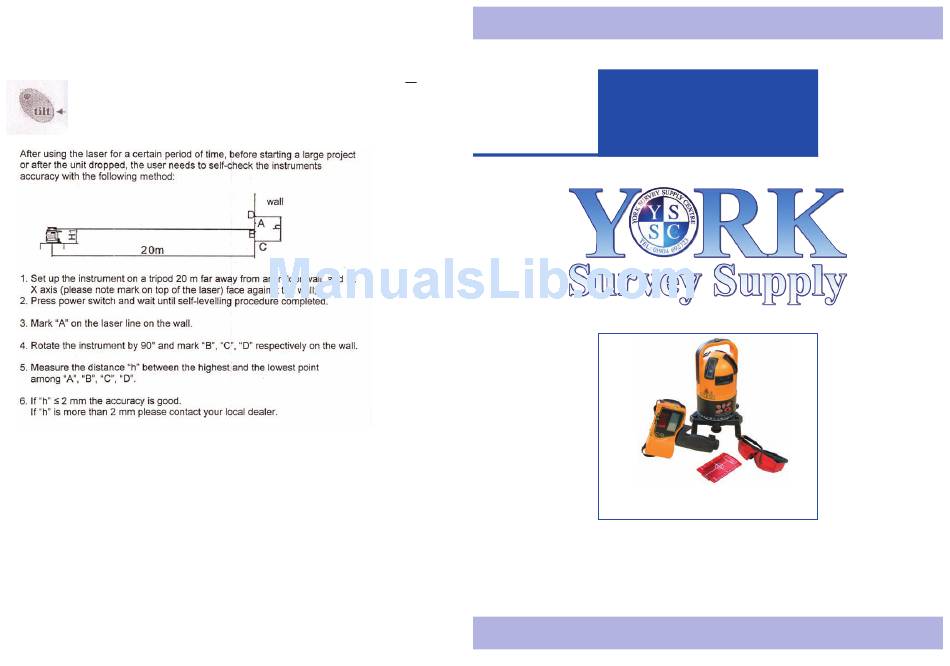

FL 60 Maxi Liner
Code: 775600
Operating
Instructions
©York Survey Supply Centre 2010
