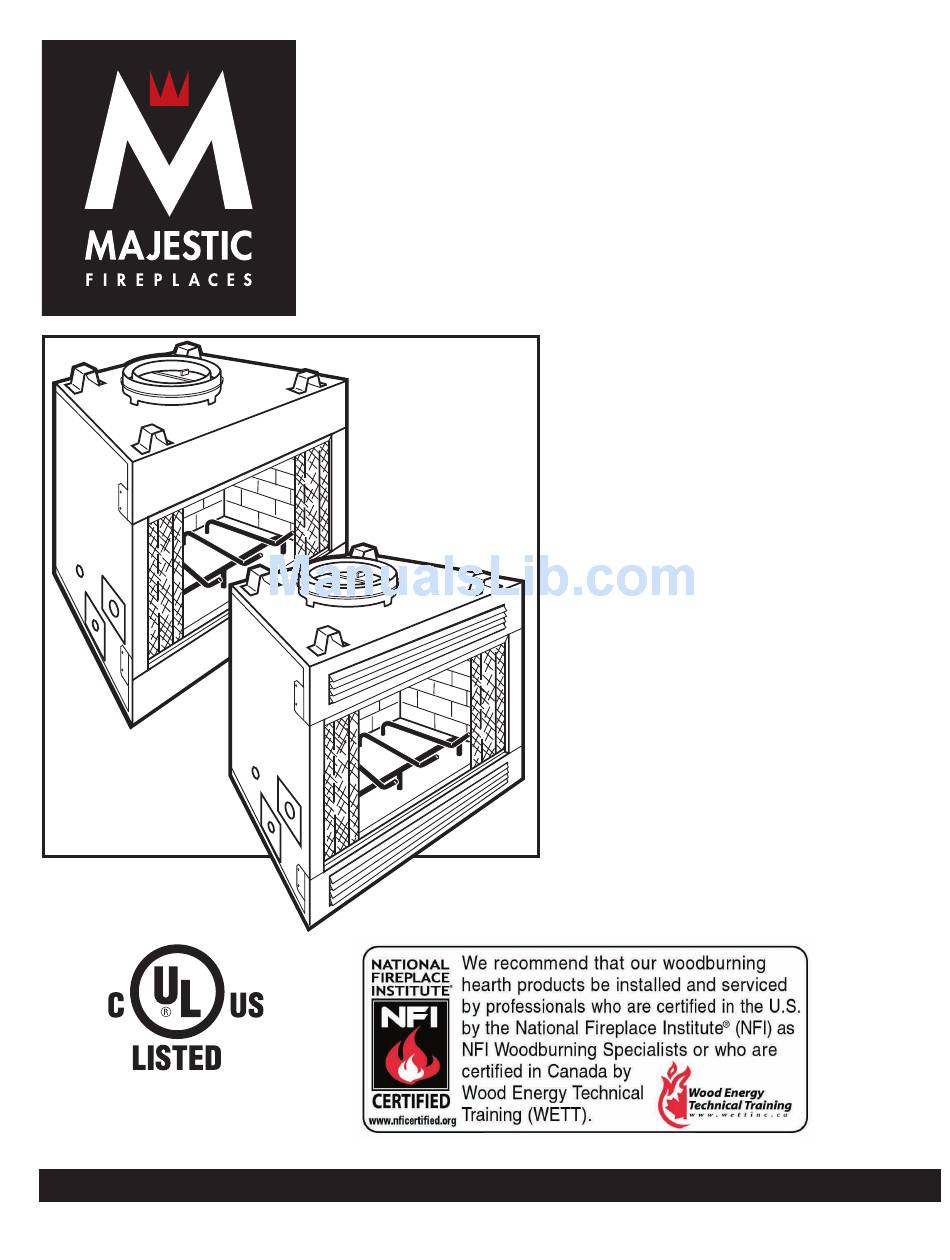

Majestic SC36A Homeowner's Installation And Operating Manual

Sr/sc series "a" woodburning fireplace
Hide thumbs Also See for SC36A:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
948
SR cover
11/18/97
For use in U.S./Canada
Underwriter's Laboratories Report No. MH6018
DO NOT DISCARD THIS MANUAL: Retain for future use.
SR/SC Series "A"

Woodburning Fireplace

948
SC cover
11/18/97
Homeowner's Installation
and Operating Manual
For Models:
SR36A
SR42A
SC36A
SC42A
7412948 12/06 Rev. 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC36A and is the answer not in the manual?

Questions and answers

Richard Oliver
January 19, 2025

Does this fireplace beep if something is wrong?

0

Subscribe to Our Youtube Channel

Related Manuals for Majestic SC36A

Summary of Contents for Majestic SC36A

  • Page 1: Woodburning Fireplace

    SC cover 11/18/97 For use in U.S./Canada Underwriter's Laboratories Report No. MH6018 DO NOT DISCARD THIS MANUAL: Retain for future use. SR/SC Series "A" Woodburning Fireplace Homeowner's Installation and Operating Manual For Models: SR36A SR42A SC36A SC42A 7412948 12/06 Rev. 17...

  • Page 2: Table Of Contents

    fire hazard and will void the warranty. Description The SR/SC Series "A" fireplaces are solid fuel, wood- burning premium fireplaces. The SR36A/42A are radiant clean-face models and the SC36A/42A are circulating models with removable grilles (louvres). Both models are fully insulated fireplaces. Precautions CFM Corporation fireplaces and component parts have...

  • Page 3: Specifications And Framing

    (1006mm) Outside Gas Line Access 11" (279mm) 8" (203mm) 15���" (391mm) Fig. 1 SR36A Series specifications and framing. SC36A Series Woodburning Fireplace — Circulating Model 48���" (1232mm) 1/2" (13mm) 1/2" 39���" (1006mm) Outside Air Gas Line Access 11" (279mm) 8"...
  • Page 4 SR/SC Series "A" Woodburning Fireplace SR42A Series Woodburning Fireplace 50" (1270mm) 1/2" (13mm) 1/2" 39���" (1006mm) Outside Gas Line Access 11" (279mm) 8" (203mm) 15���" (397mm) Fig. 3 SR42A Series specifications and framing. SC42A Series Woodburning Fireplace — Circulating Model 50"...

  • Page 5: Chase Installation

    Front Width Back Width FP1531 SR/SC36A 31¹⁄₈" 19⁷⁄₈" hearth dimensions (791 mm) (505 mm) 9/04 djt SR/SC42A 36³⁄₄" 22⁷⁄₈" (934 mm) (581 mm) Fig. 4a Hearth dimensions. Chase Installation Insulation methods shown are optional for cold climate, not a requirement for unit operation.

  • Page 6: Chimney Requirements

    Illustration Key The following safety rules apply to offset installations (letters correspond with il- lustration above): A. Height of the chimney is measured from the hearth to the chimney exit. SR/SC36A SR/SC42A Maximum: 90'0" 90'0" Minimum: Without Elbows 12' 6"...

  • Page 7: Planning Information

    Preplanning an installation is very important to ensure safety and to save time and money. An installer must predetermine where a fireplace will be set and how the chimney system will be run. Mounting the Fireplace A fireplace may only be mounted on the following sur- faces: 1.

  • Page 8: Chimney Supports

    SR/SC Series "A" Woodburning Fireplace Chimney Supports The chimney system is supported by the fireplace for vertical chimney heights less than 30' (9m) above the hearth. Chimney supports are required if the vertical height exceeds 30' (9m) with SK8 chimneys or 20' (6m) with 3-wall chimneys.

  • Page 9: Chimney Setup

    Framing Framing can be constructed before or after the fireplace is set in place, however, most installers build the frame before setting the fireplace. Frame fireplace with 2 x 4 lumber or heavier materials. Refer to framing dimensions in Figures 1, 2, 3 or 4 for basic fireplace specifications.

  • Page 10: Straight-Up Chimney Installation

    SR/SC Series "A" Woodburning Fireplace Straight-Up Chimney Installation To mark the centerline of the flue, put the fireplace in final position and measure out from the wall: 9¹⁄₄" (235mm). Mark a spot on the ceiling directly above the fireplace. Draw a line parallel to the back wall through this mark.

  • Page 11: Positioning, Safety Strips, Securing The Fireplace

    The following table gives firestop spacer model num- bers: Angle of Chimney at Ceiling Size of Chimney Vertical 8" Flue SKFS2A "SK" Series 14¹⁄₂" x 14¹⁄₂" (368mm x 368mm) (368mm x 648mm) 8" Flue FS2A "S" Series 3-Wall 17¹⁄₂" x 17¹⁄₂" (445mm x 445mm) (454mm x 753mm) Fig.
  • Page 12 SR/SC Series "A" Woodburning Fireplace Continue installing the pipe as required until pipe is installed up through the ceiling. At this point, you must install a firestop spacer. Installing the Firestop Spacer in the Ceiling Hole A firestop spacer is used to keep pipe spaced properly and required for safety.
  • Page 13 Install the attic insulation shield with the flanges on its base extending down into the framing hole. Nail each corner of attic insulation shield to the framing members of the ceiling hole using 8d nails. Attic shields are not required at the roof. Continue Installing Pipe to Complete Run Continue attaching pipe sections to complete system to next level always being careful that the pipe is firmly...
  • Page 14 SR/SC Series "A" Woodburning Fireplace Installing Top Housing or Termination Follow the installation instructions provided with the chimney termination you have selected. Installing Chimney In a Chase Refer to Page 5, Figure 5 for an illustration of a typical chase installation. CAUTION: Treatment of firestop spacers and construc- tion of chase may vary with type of building.
  • Page 15 Mantel Clearance - Radiant Model - No Noncombustible Facing Material Combustible Man- Combustible tel and Trim Mantel and 12" Trim (305mm) Finished Wall Max. 1���" Header (38mm) 12" Standoff (305mm) Noncombustible Min. Material Radiant Sur- round Face Fireplace Open- * Minimum width from top of sur- round to bottom of screen rail Fig.

  • Page 16: Hearth Installation

    EH2416 insulation (minimum R Value = 1.85) between decorative noncombustible rigid covering and combustible wall. Minimum height and width is 40" x 40". ** Dimension/degree of angle will vary depending on thickness of noncombustible surround facing. SR/SC36A 16" 406mm 305mm SR/SC42A 20"...
  • Page 17 COMMON MATERIALS AND FACTORS MATERIAL EH2416 0.458 1.09 (CFM Corporation) Common Brick 0.10 R Value is for Z\x inch. * Units of K = BTU/SQ FT/HR/˚F/IN ** Thickness of Listed Material Fig. 24 Hearth extension material factors. WARNING: HEARTH EXTENSION MUST BE IN- FP533ADD Addendum STALLED IN ACCORDANCE WITH FIGURE 23 AND...
  • Page 18 SR/SC Series "A" Woodburning Fireplace Installing Line for Gas Logs CFM Corporation fireplaces are designed to accept a 1/2" (13mm) gas line for installation of an approved gas appliance. (CFM Corporation manufactures a wide va- riety of gas logs for use in CFM Corporation fireplaces.) Be sure to have the appliance installed in accordance with building codes.

  • Page 19: Replacement Parts

    CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. SR36A/42A, SC36A/42A SERIES For units FB40RO, GB40RO, FB40CO, GB40CO Ref. Description Damper Weld Assembly Damper Bracket Screen Rod Assembly Screen Assembly (two per fireplace)

  • Page 20: Accessories

    Glass Door — Standard Fan Kit Variable Speed Control Outside Air Termination Chimney Adapter Hearth Extension Insulation Grate SR/SC36A/42A Hearth Patch Compound Contact your Majestic Fireplaces distributor or dealer for finishing Marble and Mantels, available in a wide selection of styles. Accessories Description Bi-Fold door set Brushed Brass finish...

  • Page 21: Chimney Components

    U.S. Component Round Top Termination Round Top Termination - Extended Flashing Square Termination Housing Adapter Kit Housing Extensions Square Chase Termination Adapter Kit Chase Top Housing Chase Top Housing SK8 Chimney Sections SK8 Chimney Elbows Firestop Chimney Support 7412948 SR/SC Series "A" Woodburning Fireplace Chimney Components Description Top used to terminate chimney at roof.
  • Page 22 SR/SC Series "A" Woodburning Fireplace (Chimney Components con't.) Canada Component Chimney Collar Enclosure Attic Insulation Shield SK8 Chimney Sections 45˚ Chimney Elbows Description Installs on the "over the chimney collar" of the fireplace; provides outside air to assist in cooling the chimney system.
  • Page 23 LIMITED WARRANTY & 30 YEAR PROTECTION PLAN For MAJESTIC FIREPLACES CFM Corporation warrants its MAJESTIC FIREPLACES® Pre-Engineered Fireplace (“Fireplace”) and the CFM Cor- poration supplied firegrate, glass doors, outside air system, fan motor, and liners to be free from defects in material or workmanship, as follows: A.
  • Page 24 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
