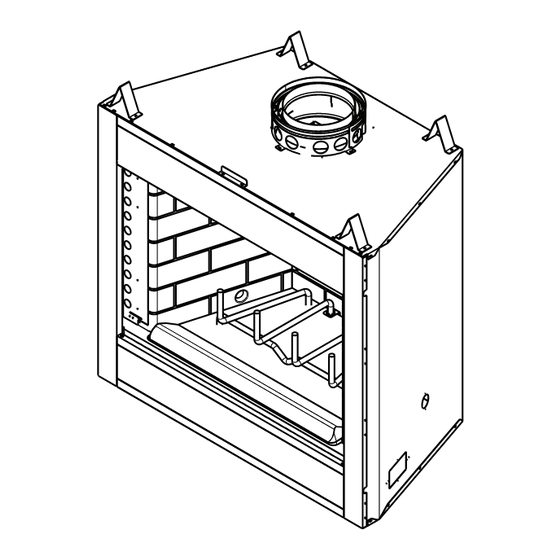

Majestic SA36R Owner's Manual
Hide thumbs Also See for SA36R:

Advertisement

INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE:
DO NOT discard this manual!
Model(s):

WOODBURNING FIREPLACE

Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recomends HHT
Factory Trained or NFI certified professionals.
Owner's Manual
Operation and Care
Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• DO NOT overfire. Overfiring will void your
warranty.
• Comply with all minimum clearances to com-
bustibles as specified. Failure to comply may
cause house fire.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate poisonous
gases (i.e. carbon monoxide).
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA36R and is the answer not in the manual?

Questions and answers

Summary of Contents for Majestic SA36R

  • Page 1: Woodburning Fireplace

    Factory Trained or NFI certified professionals. WARNING Fire Risk. For use with solid wood fuel only. Other fuels may overfire and generate poisonous gases (i.e. carbon monoxide). Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 2: Table Of Contents

    1. Hardwood vs. Softwood 2. Moisture content 3. Seasoning 4. Storing Wood 5. Burning Process 6. Creosote Formation 7. Processed Solid Fuel Firelogs D. First Fire E. Lighting Instructions Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 3: Welcome

    HEARTH & HOME TECHNOLOGIES IF INSTALLATION OR OPERATING INSTRUCTIONS ARE MISSING CONTACT: HEARTH & HOME TECHNOLOGIES, 7571 215th Street West, Lakeville, MN 55044. P.N. 4021-954A Grate Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 4: Limited Lifetime Warranty

    (engine, inner cover,access cover and fireback) None 1 Year All replacement parts beyond warranty period See conditions, exclusions and limitations on the next page Page 1 of 2 4021-645K 1/20 Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 5 OTHER THAN THE WARRANTY SPECIFICED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645K 1/20 Page 2 of 2 Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 6: Product Specific And General Information

    State of California to cause birth defects or other reproductive harm. For more infor- mation go to: www.P65Warnings.ca.gov. Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 7: Important Safety And Operating Information

    48 in. (1219 mm) Clear Space Front of Fireplace 12 in. (305 mm) Clear Space Sides of Fireplace (from the FP opening) Figure 3.1 Clear Space Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 8: Grate

    If doors are left partly open, gas and flame may be drawn out of the fireplace opening. Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 9: General Operating Parts

    Flue Damper Control Section 2.F. Close Open Open Close Outside Air Kit Control Section 2.I. Figure 3.2 General Operating Parts Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 10: Flue Damper

    Move handle to right to close. CAUTION! Outside air control handle may be warm. Adjust before lighting fire. Figure 3.3 Operating Positions of Bi-fold Doors Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 11: Fuel

    Soft woods Hard woods • Douglas Fir • Oak • Pine • Maple • Spruce • Apple • Cedar • Birch • Poplar • Aspen • Alder Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 12: Seasoning

    Doing so • refractory is in place may trap moisture from the ground and impede air • all labels have been removed. circulation. Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 13: Lighting Instructions

    • use gasoline, lantern fuel, kerosene, charcoal lighter fluid or similar liquids to start or “freshen up” a fire in this fireplace. Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 14: Maintenance And Service

    In the event of a chimney fire, Hearth & Home Tech- nologies recommends replacement of the chimney and inspection of the adjacent structure to the provisions of NFPA Level III inspection criteria. Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 15: Grate

    Frequency: After each ash removal Homeowner • Inspect condition of refractory. Replace if crumbly or otherwise deteriorated, or if cracks exceed 1/4 in. (6 mm). Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 16: Troubleshooting

    (refer to wood fuel section). Overdrafting Check for correct vent height; too much vertical height creates overdrafting. Check location of vent termination (refer to chimney assembly section). Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 17: Troubleshooting Table

    Contact your dealer for additional informa- and corrective measures must be taken. tion regarding operation and troubleshoot- ing. Visit www.majesticproducts.com to find a dealer. Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 18 Air register from furnace near fireplace? Doors opening and closing? Outside air Window closed Combustion closed? for start-up? air control Figure 5.1 Factory-built Fireplaces: Troubleshooting Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 19: Reference Materials

    Column (Right or Left) SRV29899BK Hearth Filler SRV30331BK Front Face (Botttom) SRV29231BK GR18 Grate Grate Clip Qty 2 req. SRV28062 Additonal Service parts on following page. 10/19 Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 20 Installation Manual 4010-259 Owner’s Manual 4010-260 #10 Refractory Assembly 10.2 10.3 10.3 10.1 10.1 Hearth Refractory SRV29993 10.2 Back Refractory SRV29992 10.3 Side Refractory (Left/right) SRV28393 Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 21 Column (Right or Left) SRV29899BK Hearth Filler SRV30332BK Front Face (Bottom) SRV28377BK GR19 Grate Grate Clip Qty 2 req. SRV28062 Additonal Service parts on following page. 10/19 Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 22 Installation Manual 4010-259 Owner’s Manual 4010-260 #10 Refractory Assembly 10.2 10.3 10.3 10.1 10.1 Hearth Refractory SRV28391 10.2 Back Refractory SRV28394 10.3 Side Refractory (Left/right) SRV28393 Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 23: Accessories

    B. Accessories Doors Bi-fold Glass Doors DM1736, DM1742 Grand Vista Cabinet Style Mesh Door GV36BK GV42BK Gas Inserts Gas Log Sets Gas Log Lighters Wood-burning Inserts Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 24 This page intentionally left blank. Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 25 This page intentionally left blank. Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
  • Page 26: Contact Information

    7216645, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending. Printed in U.S.A. - Copyright 2012 Majestic Sovereign Series • SA36R/SA42R Owners Manual • 4010-260 • Rev H • 1/2020...
