FOLDING MACHINE
PF-45A
OPERATOR MANUAL
1. FUNCTION
The folding machine is used to fold documents stand alone or
in combination with a system 7. Sheets can be folded in
various types. These are:
• single fold;
• letter fold;
• zig-zag fold;
• double parallel fold.
The machine is fitted as standard with a scoring wheel to assist
in folding heavier paper. Perforating and slitting wheels may
be fitted as options.

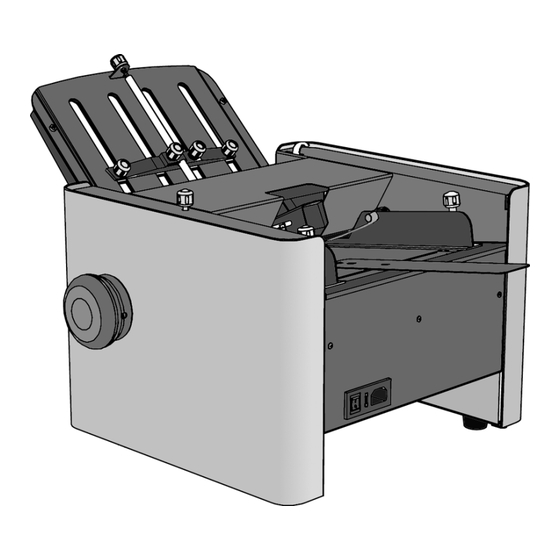

PF-45A
Fig. 1
1/12
Advertisement
Table of Contents
Related Manuals for Neopost PF-45A
Summary of Contents for Neopost PF-45A
-
Page 1: Function
FOLDING MACHINE PF-45A OPERATOR MANUAL 1. FUNCTION The folding machine is used to fold documents stand alone or in combination with a system 7. Sheets can be folded in various types. These are: • single fold; • letter fold; • zig-zag fold;... -
Page 2: Table Of Contents
Operator trouble shooting damage the machine. Removing blocked documents Curled paper MAINTENANCE Warning, this symbol indicates a hazard to life Servicing because of high voltage. General cleaning Cleaning the rubber rollers NOTE Additional information SPECIFICATIONS 2/12 PF-45A... -
Page 3: General
: fold selection knob B and C continue feeding the paper, it will now buckle at : power inlet G. Gripped by rollers C and D, the paper will leave the : power switch machine in the direction of arrow H. PF-45A 3/12... -
Page 4: Installation
If this happens, rotate the separation knob B slightly clockwise until only one document at a time is pulled in. Adjustments can be made with the machine running. 4/12 PF-45A... -
Page 5: Feed Pressure Adjustment
To fold with address outside: place the documents with the address face down. Single fold : address trailing Letter fold : address leading Zig-zag fold : address leading or face up trailing Double parallel fold : address leading PF-45A 5/12... -
Page 6: Adjusting The Ejection Rollers
When scoring is not wanted, the scoring wheels must not screws. Pull the locking handle of the ejection roller (G, fig. be positioned opposite to the ejection rollers. 2 on page 3) up and backwards. Lower the handle so that the ejection rollers will be replaced 6/12 PF-45A... -
Page 7: Automatic Folding
When folding light and soft paper (with less body) it is necessary. advisable to run the machine more slowly. To stop folding, just raise the paper feed cover. If the machine speed is changed it may be necessary to re- adjust the fold positions. PF-45A 7/12... -
Page 8: Options
Re-adjust the position of the wheels if necessary. Re-adjust the position of the wheels if necessary. Fine adjustments Make fine adjustments when scoring, perforating or slitting by adjusting the position of the side guides. 8/12 PF-45A... -
Page 9: Perforating And Slitting Without Folding
E. Slide the two paper guide curves as near as possible to the perforating wheel. This is to prevent the paper from curling up. Fasten the finger screws on both paper guide curves. PF-45A 9/12... -
Page 10: Fault Finding
Ejection rollers do not grip paper Readjust the position of the ejection Adjusting the ejection rollers, page 6. equally. rollers. Upper ejection shaft has not been Lower the upper ejection shaft. Adjusting the ejection rollers, page 6. lowered. 10/12 PF-45A... -
Page 11: Removing Blocked Documents
These pieces have to be removed. 9.2 General cleaning The machine must be kept in proper condition by regularly removing dust, paper remains, etc. 9.3 Cleaning the rubber rolls Clean the rubber rollers regular with a slightly wetted cloth. PF-45A 11/12... -
Page 12: Specifications
SPECIFICATIONS EEC-declaration of concurrence. This operator manual refers to machine as from serial number 98 BX-5001 Neopost Technologies B.V., De Tijen 3 Machine specifications 9201 BX Drachten The Netherlands Model PF-45A declare, entirely under our own responsibility, that the Type paper-folding device for medium office use.
