Quick Start Guide
Introduction

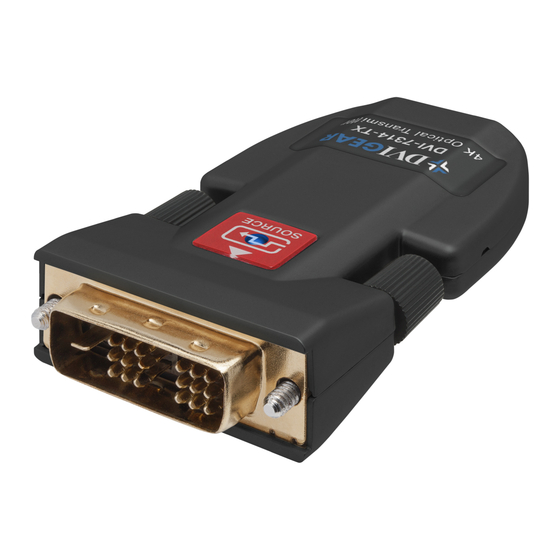

The DVI-7313 and DVI-7314 are high performance 4K Optical Extenders that transmit high resolution
DVI / HDMI signals over extreme distances using a single fiber optic cable. These extenders support
HDMI v1.4 (non-HDCP) signals with resolutions up to 4K (4096x2160 / 30p) over cable distances
up to 1640 ft. (DVI-7313) and up to 1.2 miles (DVI-7314). Each extender set consists of an optical
transmitter module that converts the DVI / HDMI signals into light pulses for transmission over a single
strand of optical fiber cable. An optical receiver module converts the light pulses back to a DVI / HDMI
signal for display on a monitor or projector. The transmitter unit includes an internal EDID memory
that can acquire and store the EDID from any display. The DVI-7313 supports Multi-Mode optical fiber,
while the DVI-7314 supports both Multi-Mode and Single-Mode fiber optic cable. These features make
the DVI-7313 and DVI-7314 the ideal future-proof choices for systems designers and integrators who
need to transmit high resolution DVI / HDMI signals over extreme distances.

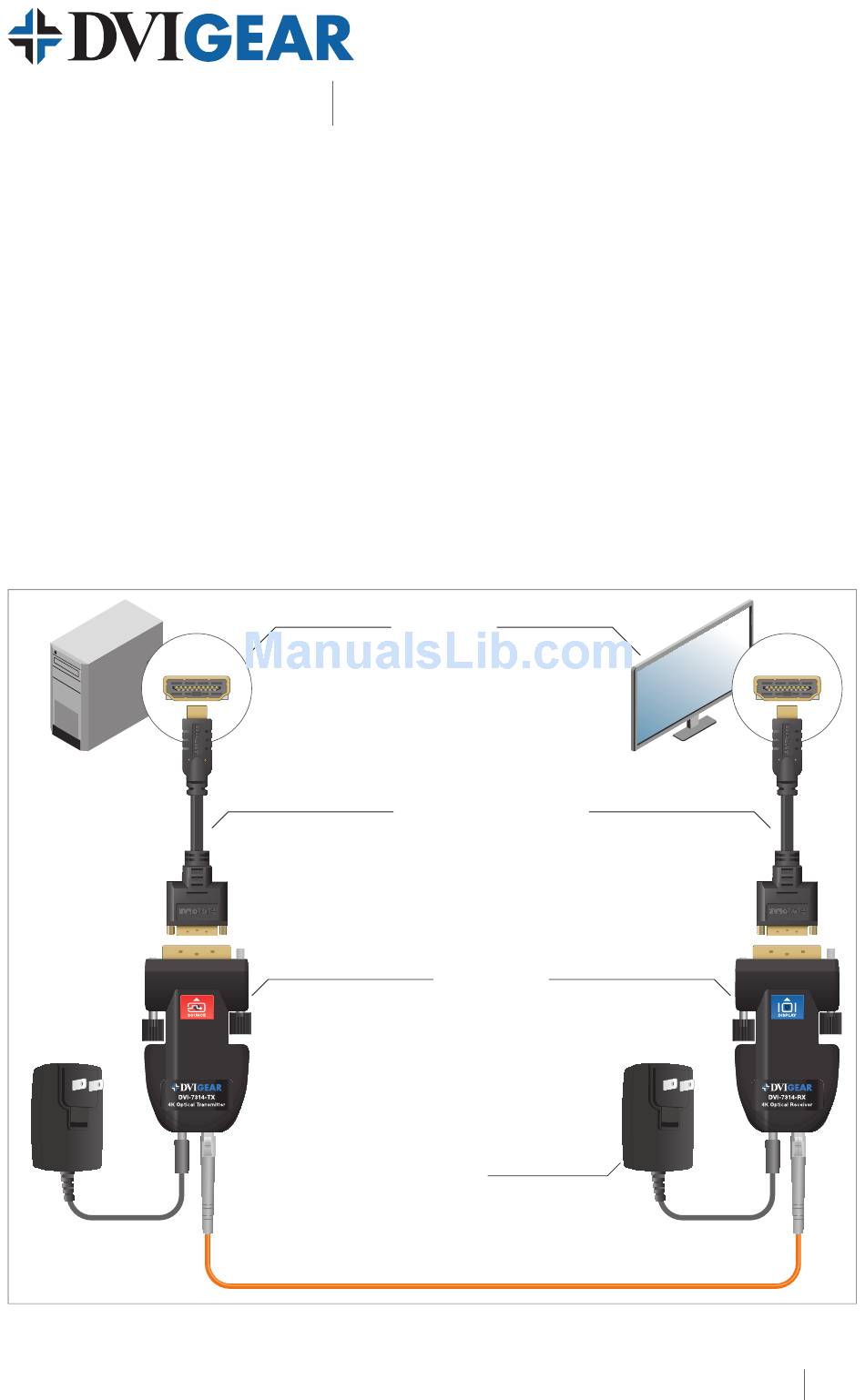

Typical Application
Optional
AC Power
Adapter
HDMI Port
DVI-8511c
Adapter Cable
(included)
Transmitter
1x LC Optical Cable
DVI-7313 / DVI-7314 4K Fiber Optic Extenders, 1x LC
4K Fiber Optic Extenders, 1x LC
HDMI Port
AC Power
Adapter
(included)
DVI-7313
DVI-7314
DVI-8511c
Adapter Cable
(included)
Receiver
1
Advertisement
Table of Contents
Related Manuals for DVIGear DVI-7313
Summary of Contents for DVIGear DVI-7313
-
Page 1: Typical Application
HDMI v1.4 (non-HDCP) signals with resolutions up to 4K (4096x2160 / 30p) over cable distances up to 1640 ft. (DVI-7313) and up to 1.2 miles (DVI-7314). Each extender set consists of an optical transmitter module that converts the DVI / HDMI signals into light pulses for transmission over a single strand of optical fiber cable. - Page 2 DVI-7314-TX Front View DVI-7314-TX Rear View...
-
Page 3: Installation Instructions
Installation Instructions This product consists of a DVI-7313 / DVI-7314 Transmitter Unit and a DVI-7313 / DVI-7314 Receiver Unit. These units are interconnected by means of a single-channel LC optical cable, utilizing either 50/125μ Multi-Mode fiber or 9/125μ Single-Mode fiber (DVI-7314). The DVI-7314 is also capable of using Multi-Mode fiber. - Page 4 Instructions for Learning the EDID from a Display Apply power to the display. Connect the DVI-7313 / DVI-7314 Transmitter unit to the display’s DVI or HDMI input port. Connect the External AC Power Adapter to the Transmitter unit. Press the Learn EDID button (page 2 - #5) by manually inserting a stylus into the side of the Transmitter unit.
