DVIGear DVI-7318 Quick Start Manual

Quick Start Guide
Introduction
High Performance
resolution HDMI signals over long distances using a single fiber optic cable. It supports HDMI v2.0
signals (with or without HDCP) with resolutions up to 3840x2160 /60p (4:4:4) over cable distances of
up to 1,000 ft. (~ 300 m).
Fiber Optic Extension
HDMI signals into light pulses for transmission over a single strand of Multi-Mode optical fiber cable.
An optical receiver module converts the light pulses back to an HDMI signal for display on a monitor or
projector.
Multiple Signals Over One Cable
also simultaneously supports extension of bidirectional signals such as EDID and HDCP pass-through.
The extender uses Shortwave Wavelength Division Multiplexing (SWDM) to enable all signals to travel
over a single strand of optical fiber. This enables DDC communications without the need for additional
cables. These features make the DVI-7318 the ideal future-proof choice for systems designers and
integrators who need to send high resolution HDMI signals over long distances.

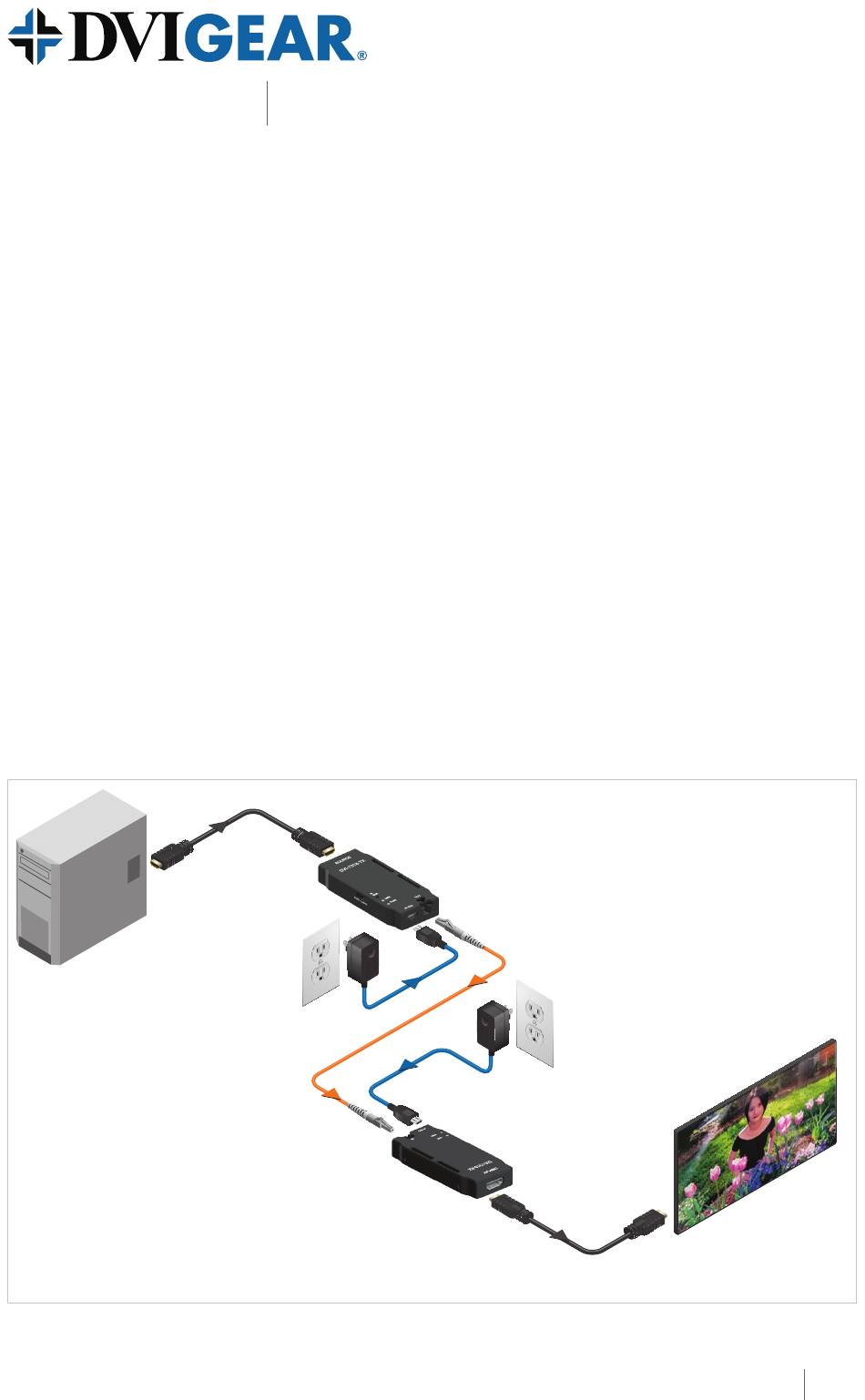

Typical Application
4K Source Device
(e.g. PC or Mac)
One Multi-Mode LC optical cable
*Each unit can be powered using an optional
USB adapter cable (p.n. DVI-7332-PSX)
— The DVI-7318 is a high performance 4K Optical Extender that transmits high
— The extender set consists of an optical transmitter module that converts the
— While the video component of the signal is one-way, the unit
HDMI Cable
+5 VDC
Power Adapter
DVI-7318-RX
DVI-7318 4K/60p HDMI Fiber Optic Extender, 1x LC
4K/60p HDMI Fiber
Optic Extender, 1x LC

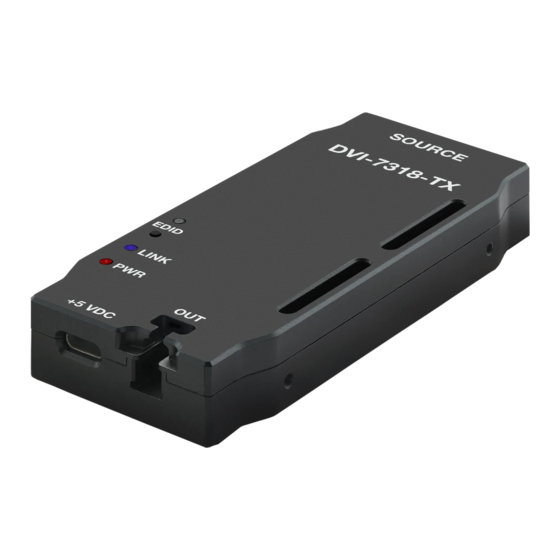

DVI-7318-TX
+5 VDC
Power Adapter
(p.n. DVI-7331-PS)
HDMI Cable
DVI-7318
4K Display Device
(e.g. Monitor)
1
