DVIGear DVI-7312 Quick Start Manual

Quick Start Guide

Introduction

DVI-7312 is a Fiber Optic Extender designed to transmit single-link DVI signals over fiber optic cables at
distances up to 2000 meters (~1.2 miles). This extender provides exceptional signal fidelity and supports
a wide range of input resolutions. The unit consists of an optical transmitter module that converts the DVI
input signal into high-speed light pulses for transmission over two (2) detachable multi-mode or single-
mode glass fibers and an optical receiver module that converts the light pulses back to a DVI signal for
display on a monitor or projector. A programmable memory chip in the transmitter unit captures and
stores the EDID from the connected display, thereby eliminating the need for copper cables. These
features make the DVI-7312 the ideal solution for any application that demands flawless image quality
from DVI signals that must be extended over very long cable distances.

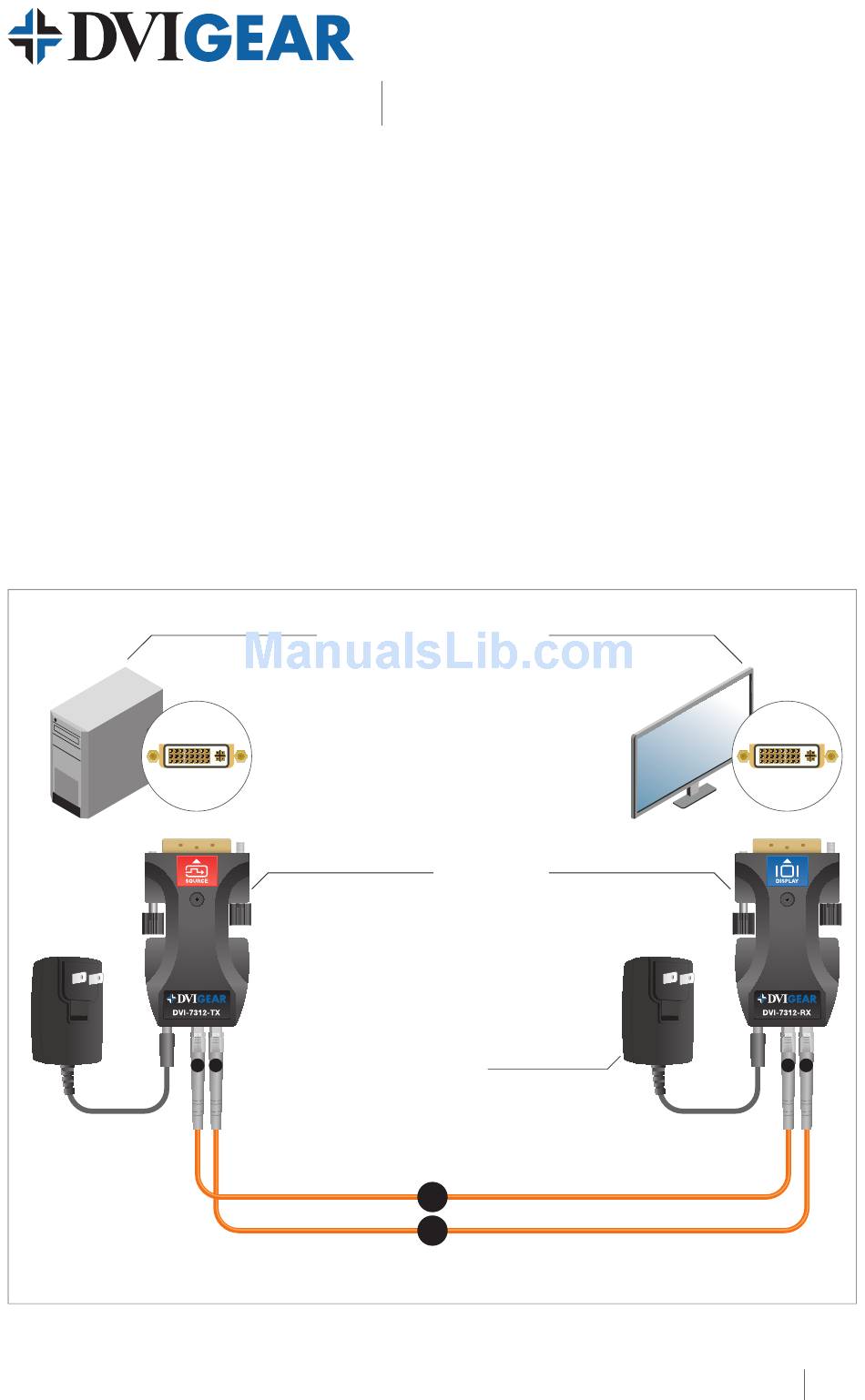

Typical Application

Optional
AC Power
Adapter
DVI Port
DVI-7312-TX
Transmitter
1 2
Two Multi-Mode or Single-Mode LC Optical Cables
DVI-7312 Single-Link DVI Fiber Optic Extender, 2x LC
Fiber Optic Extender, 2x LC
DVI Port
DVI-7312-RX
Receiver
AC Power
Adapter
1
2
DVI-7312
Single-Link DVI
1 2
1
