Summary of Contents for DVIGear DVI-7360
-
Page 1: User Guide

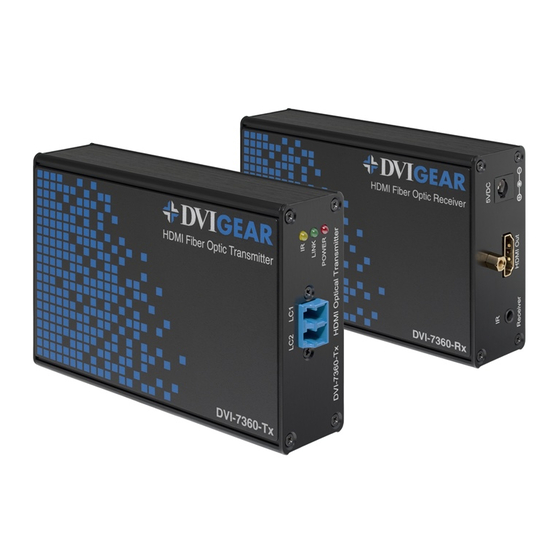

User Guide HDMI™ Fiber Optic Extender DVI-7360... -
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE PRODUCT SAFETY ........1 PRODUCT LIABILITY . -
Page 3: Product Safety
Every effort has been made to ensure that this product is free of defects. DVIGear cannot be held liable for the use of this product or for any direct or indirect consequential damages arising from its use. It is the responsibility of the users of this product to check that it is suitable for their requirements and that it is installed correctly. -
Page 4: Introduction
Our professional digital distribution products have been serving the industry for over ten (10) years. DVIGear offers a full line of high-quality Digital Matrix Routers, Switchers, Splitters, Video Scalers, Up/Down/Cross Converters, Format Converters, Analog-Digital Converters, as well as a wide range of long-reach Digital Cables, Extenders, and Optical Transmission systems. -
Page 5: Specifications
Both Tx and Rx units must use the included AC power adapters. External AC Power Adapters Input: 100-240 VAC / 50-60 Hz, 0.5A Output: +5 VDC, 3.0 A Power Consumption DVI-7360-Tx: 3.5 watts DVI-7360-Rx: 3.5 watts Mechanical Dimensions (L x W x H) 4.61”... -
Page 6: Package Contents
This product may be connected to a DVI source and/or display using a DVI to HDMI cable (DVIGear p.n. DVI-24xx-HR, where xx = length in meters). The HDMI signal components are routed from the Transmitter unit to the Receiver unit using an optical cable with two (2) fibers that are terminated with LC optical connectors. -
Page 7: System Connections
5. SYSTEM CONNECTIONS HDMI Port HDMI Port DVI-7360-TX DVI-7360-RX HDMI Cable* HDMI Cable* Transmitter Receiver IR Tx HDMI Fiber Optic Transmitter HDMI Fiber Optic Receiver IR Signal Path DVI-7360-Tx DVI-7360-Rx AC Power AC Power Adapter Adapter IR Remote IR Rx... -
Page 8: Troubleshooting
DVI-7360 HDMI Fiber Optic Extender. If there is still no image, then there is a compatibility issue between the source and the display that must be resolved. -
Page 9: Limited Warranty
(3) years from the date of purchase. DVIGear assumes no liability to distributors, resellers, end-users, or any third parties for any loss of use, revenue, or profit. - Page 10 Your Digital Connectivity Experts Toll Free 888.463.9927 DVIGear, Inc. Phone 770.421.6699 1059 Triad Court, Suite 8 770.234.4207 Marietta, Georgia 30062-2258 www.dvigear.com DVI-7360-UG-01 / Feb.2012...
