DVIGear DVI-7317-TX Quick Start Manual

Quick Start Guide

Introduction

Unsurpassed Performance
transmits high resolution HDMI signals over extreme distances using a single fiber optic cable.
It supports HDMI v1.4 (HDCP compliant) signals with resolutions up to 3840x2160 /30p (4:4:4)
and 3840x2160 /60p (4:2:0) over cable distances of up to 1,000 ft. (~ 300 m).
Fiber Optic Extension
HDMI signals into light pulses for transmission over a single strand of Multi-Mode or Single-Mode
optical fiber cable. An optical receiver module converts the light pulses back to an HDMI signal for
display on a monitor or projector.
Multiple Signals Over One Cable
also simultaneously supports extension of bidirectional signals such as EDID and HDCP pass-through.
The data rate from the TX to RX is 10.3 Gbps. using the 1310nm wavelength, while the reverse
channel travels from RX to TX over 1550nm at 250 Mbps. The extender uses wavelength-division
multiplexing (WDM) to enable both signals to travel over a single strand of optical fiber. This enables
DDC communications without the need for additional cables. These features make the DVI-7317 the
ideal future-proof choice for systems designers and integrators who need to support high resolution
HDMI / DVI signals with or without HDCP over extreme distances.

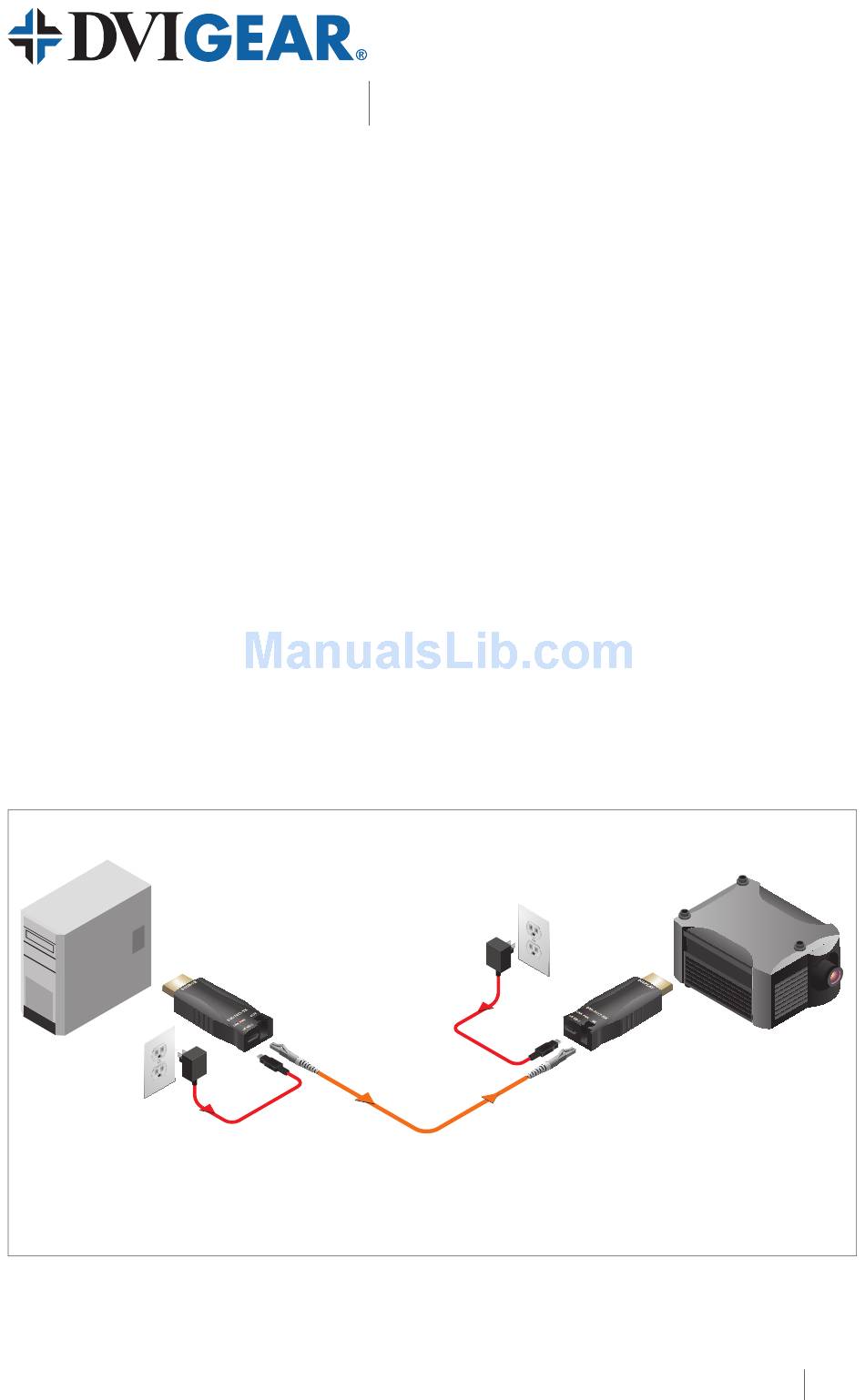

Typical Application

Source Device
(e.g. PC or Blu-ray Player)
+5 VDC
Power Adapter
(included)
DVIGear and DVIGear & Design are trademarks of DVIGear, Inc. and
may not be used without the prior written permission of DVIGear, Inc.
– The DVI-7317 is a high performance 4K Optical Extender that
– The extender set consists of an optical transmitter module that converts the
– While the video component of the signal is one-way, the unit

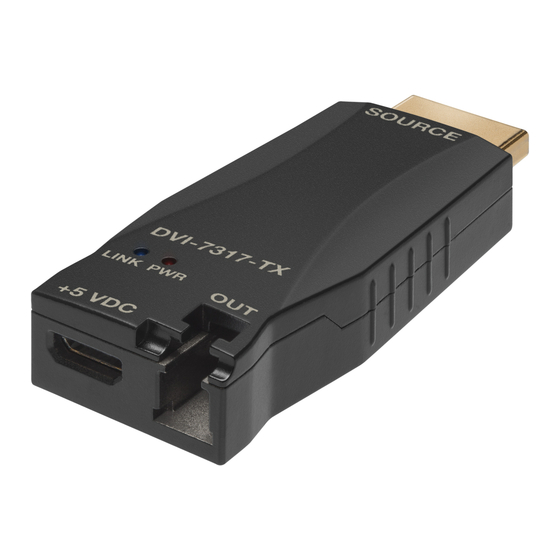

DVI-7317-TX
*
One Single-Mode or Multi-Mode
DVI-7317 4K HDMI Fiber Optic Extender, 1x LC
+5 VDC
Power Adapter
(included)
LC optical cable
DVI-7317
4K HDMI Fiber Optic
Extender, 1x LC
Display Device
(e.g. Projector or Monitor)
DVI-7317-RX
*TX unit can be powered using an optional
USB adapter cable (p.n. DVI-7316-USB1)
