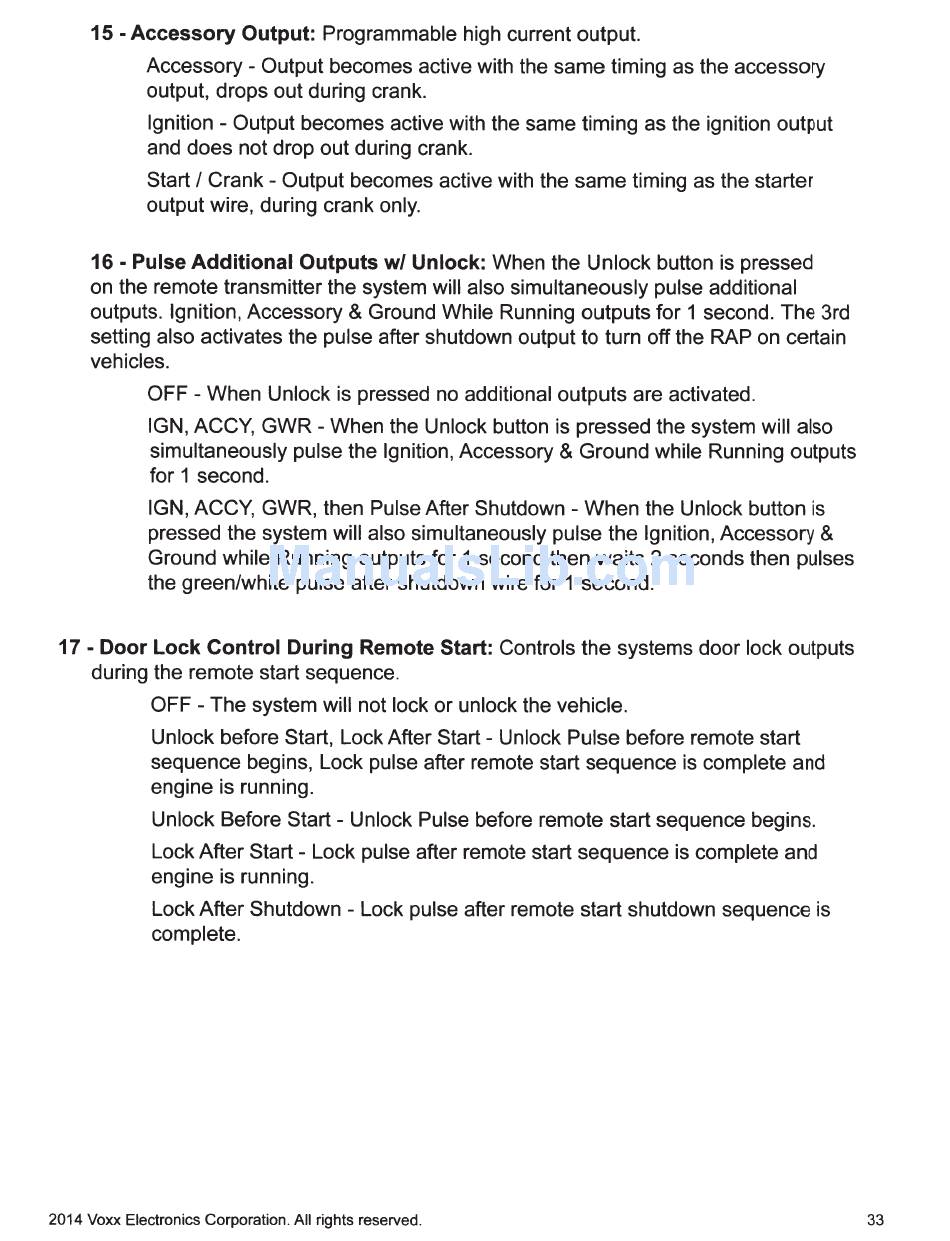

Code Alarm ca6554 Professional Series Installation Manual page 33

15 -Accessory Output: Programmable high current output.
Accessory - Output becomes active with the same timing as the accessory
output, drops out during crank.
Ignition - Output becomes active with the same timing as the ignition output
and does not drop out during crank.
Start
I
Crank - Output becomes active with the same timing as the starter
output wire, during crank only.
16- Pulse Additional Outputs w/ Unlock: When the Unlock button is pressed
on the remote transmitter the system will also simultaneously pulse additional
outputs. Ignition, Accessory & Ground While Running outputs for 1 second. The 3rd
setting also activates the pulse after shutdown output to turn off the RAP on certain
vehicles.
OFF -When Unlock is pressed no additional outputs are activated.
IGN, ACCY, GWR- When the Unlock button is pressed the system will also
simultaneously pulse the Ignition, Accessory & Ground while Running outputs
for 1 second.
IGN, ACCY, GWR, then Pulse After Shutdown - When the Unlock button is
pressed the system will also simultaneously pulse the Ignition, Accessory &
Ground while Running outputs for 1 second then waits 2 seconds then pulses
the green/white pulse after shutdown wire for 1 second.
17 - Door Lock Control During Remote Start: Controls the systems door lock outputs
during the remote start sequence.
OFF- The system will not lock or unlock the vehicle.
Unlock before Start, Lock After Start- Unlock Pulse before remote start
sequence begins, Lock pulse after remote start sequence is complete and
engine is running.
Unlock Before Start - Unlock Pulse before remote start sequence begins.
Lock After Start- Lock pulse after remote start sequence is complete and
engine is running.
Lock After Shutdown - Lock pulse after remote start shutdown sequence is
complete.
