Summary of Contents for White Knight CL43

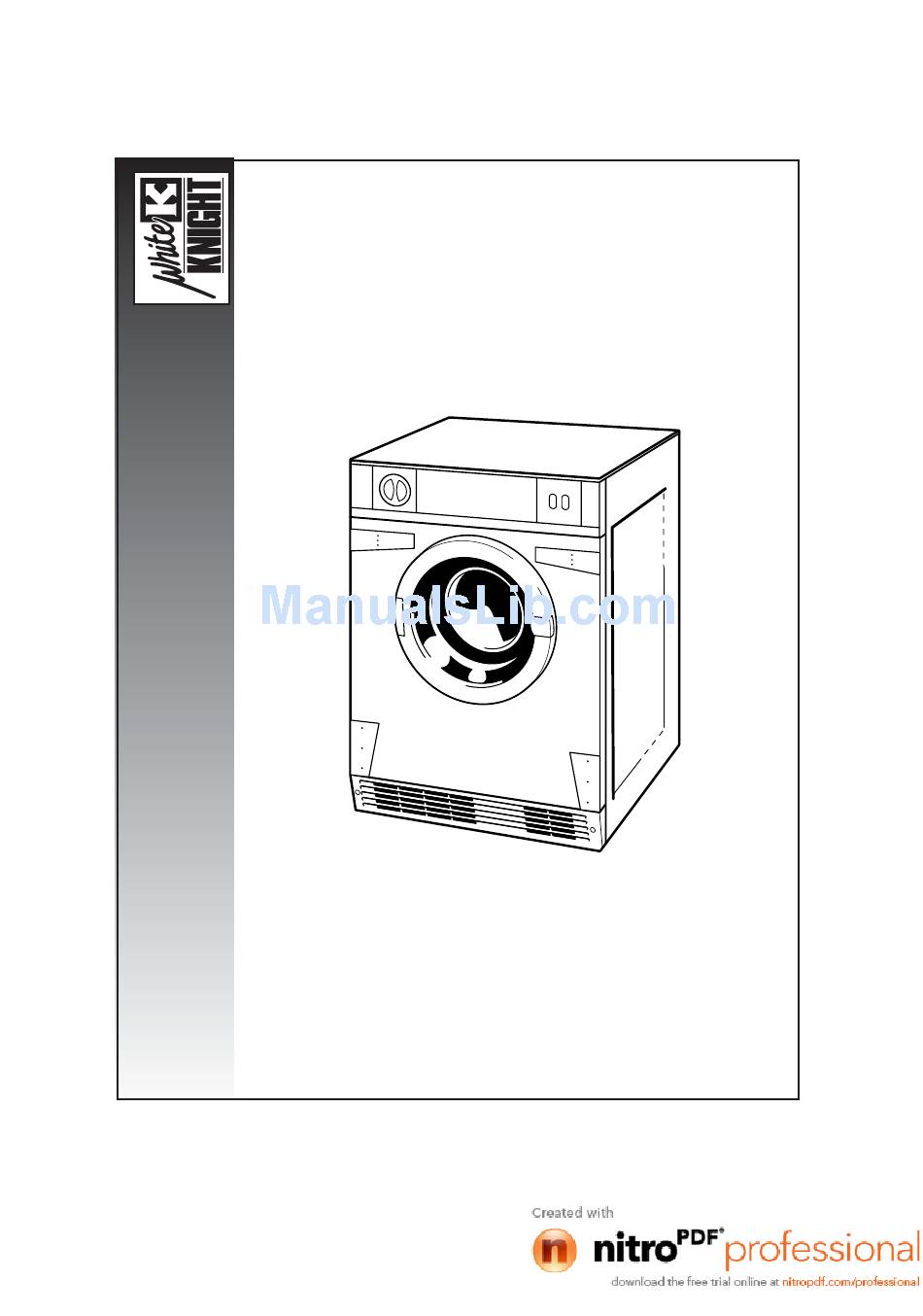

- Page 1 SERVICE MANUAL WHITE KNIGHT CL43 Reversing Integrated Dryer - UK 0312 432 15001 Technical Data Exploded Views Wiring Diagram Parts List January 2003 4213 094 82521...
-
Page 2: Technical Data
Service & Repair Information Tumble Dryer White Knight CL432 Built-in Dryer - UK Technical Data General Front-loading standard door opening built-in tumble dryer model. Forward and reverse tumble. Single or double element heating. Timer control. Induced airflow passes through rear ventilation inlets, over heating element, through drum rear perforations, through laundry load/lint filter, through fan and into the exhaust venting. - Page 3 II Components Drive Motor Permanent split capacitor induction – 4 pole-reversing - ⅛HP with heat and current sensitive overload ° ° ° protection. Trip temperature between 125 C and 155 C. Reset 90 C. Winding resistances 41.08Ω and 43.3Ω. 8µF Capacitor. No Load Full Load Power Consumption...
- Page 4 III General Information To assist with part identification, a key number is stated in parentheses after a specific part is mentioned so that it can be located on the Parts List for this appliance and consequently on the Exploded Views. Basic Programme After loading damp clothes into the dryer, the door must be closed or the programme cannot begin.
- Page 5 IV Adjustments and Recommendations for Dismantling To assist with part identification, a key number is stated in parentheses after a specific part is mentioned so that it can be located on the Parts List for this appliance and consequently on the Exploded Views.
