Synchronous Rectification and microprocessor controlled high performance rapid
charger/balancer for LiPo, LiFe battery packs with cell balancer.
Charge current up to 3A, 50W, for 2-6 LiPo/LiFe cells
Chargery Power Co., Ltd.
Head Office
Add: Room 20B, Haihui building, Nanhai Avenue, NanShan, ShenZhen, China
Zip code: 518054
Tel: +86 755 2643 6165
Fax: +86 755 2641 2865
Email: Jasonwang3a@163.com
Web: www.chargery.com
Operating Instructions
CHARGERY
620B
Advertisement
Related Manuals for Chargery 620B
Summary of Contents for Chargery 620B
-
Page 1: Operating Instructions

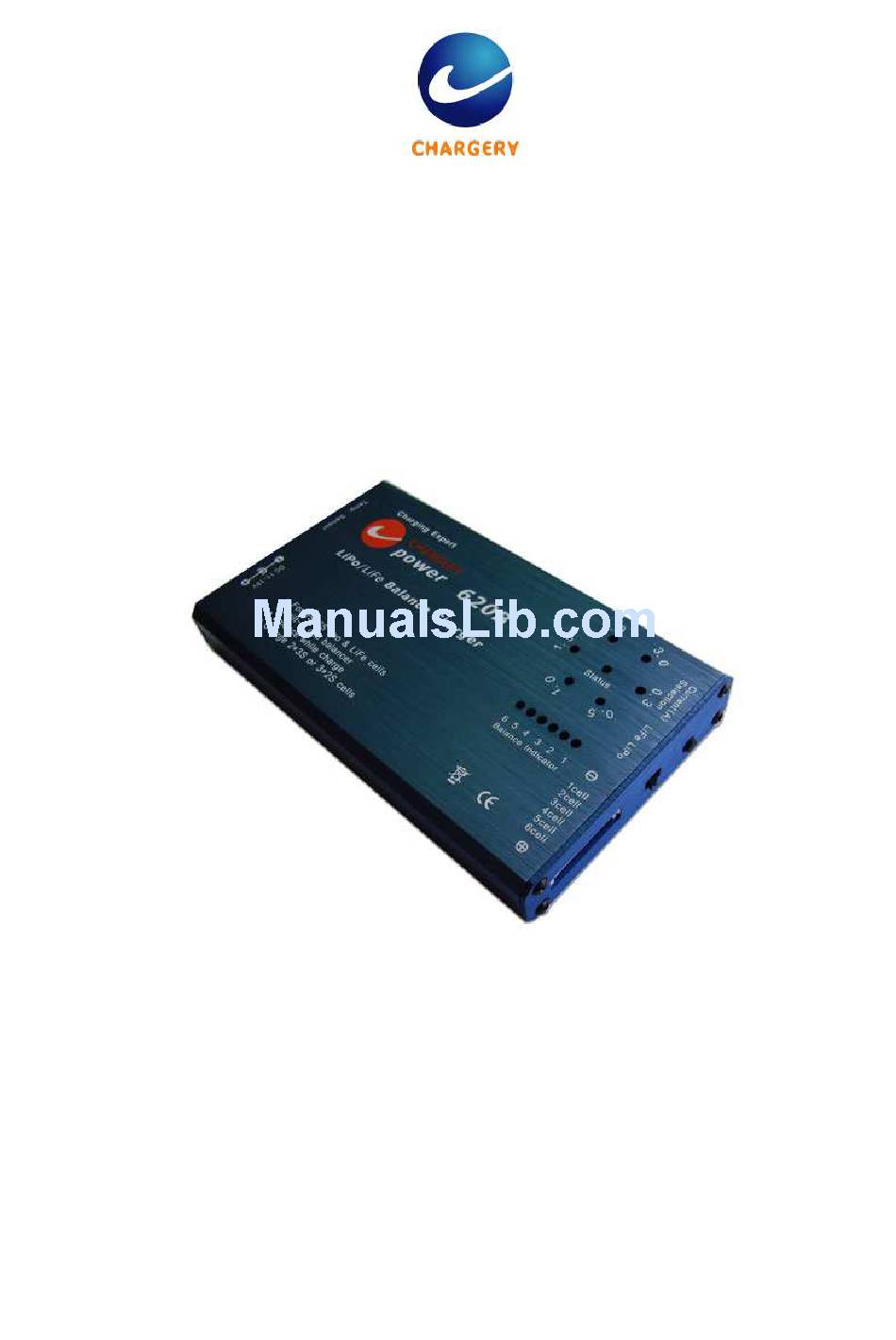

Synchronous Rectification and microprocessor controlled high performance rapid charger/balancer for LiPo, LiFe battery packs with cell balancer. Charge current up to 3A, 50W, for 2-6 LiPo/LiFe cells Chargery Power Co., Ltd. Head Office Add: Room 20B, Haihui building, Nanhai Avenue, NanShan, ShenZhen, China... - Page 2 High power and high performance circuit CY-620B employs the high efficiency circuit. As a result it can charge 6 series of LiPo batteries with maximal current of 3. 0A. and the case is only 110*68*15. Perfect safety design Battery temperature limit The battery temperature will rise by its internal chemical reaction.
- Page 3 Weight:130g Operating instructions Connect the DC power or AC Adapter (12V, up to 5A) to the CY-620B. The charging Current LED (0.3A) will be on. All LEDs turns on and then off. The beeper will sound. The charger finished initializing.
- Page 4 If you need charge the lipo battery to be stored, please choose LiFe battery mode. This is a very useful feature. Warning and error message During charge, do not unplug the battery pack from the CY-620B, if you want to stop charging, please disconnect the DC POWER or adapter firstly, and then unplug the battery pack.
- Page 5 6S Kokam, Graupner, XH for CW9: temperature sensor Polyquest, Hyperion batteries pack Align, Chargery batteries pack Warnings and safety information Never leave the charger unattended when it is connected to its power supply. If any malfunction is observed immediately terminated charging and refer to the operation instructions.
- Page 6 Warranty and Service Chargery Power Co., Ltd. as manufacture of R/C model power warrants its CHARGERY charger and battery pack to be free of defects in material and workmanship. This warranty is effective for 18 months from date of purchase.
- Page 7 LiPo and LiFe Smart Balance Charger CY- 620B. Balance charging connection Diagram 620B 2 cells DC IN CCB-7KT 3 cells 620B DC IN CCB-7KT 4 cells 620B DC IN CCB-7KT 5 cells 620B DC IN CCB-7KT 6 cells 620B DC IN CCB-7KT www.chargery.com...
- Page 8 LiPo and LiFe Smart Balance Charger CY- 620B. Charge 2*3S or 3*2S battery packs 620B 3*2S DC IN CCB-723 2* 3S 620B DC IN CCB-723TPQF www.chargery.com page 8 total 9...
- Page 9 LiPo and LiFe Smart Balance Charger CY- 620B. Maximum circuit power chart When the battery voltage is more than 25V, the actual charging current delivered to the battery will be automatically limited so as not to exceed the charger’s rated charging power of 50 watts.
