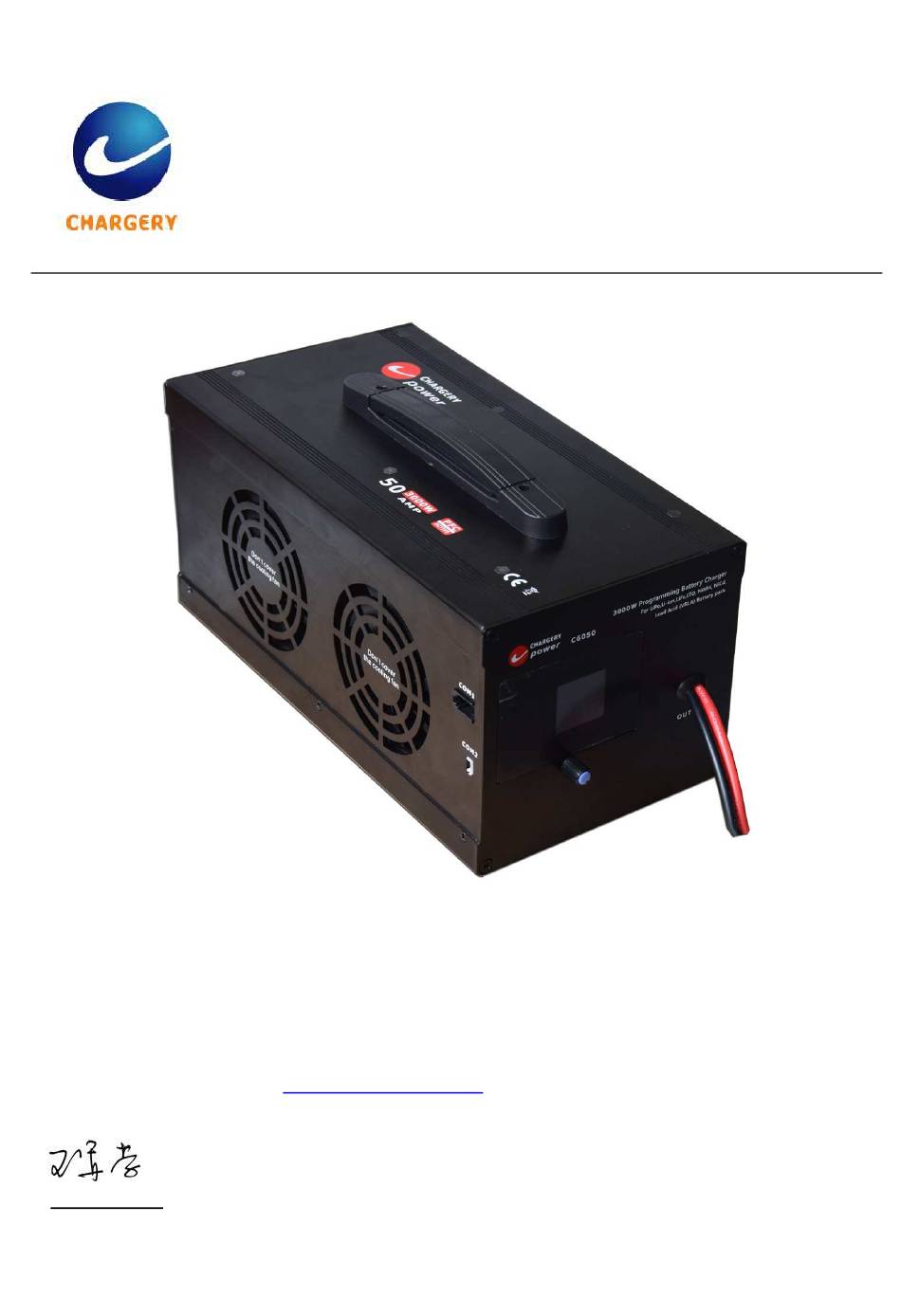

C6050A, C6050B
v2.0
PFC programmable charger
High efficiency wide input voltage
90V~265VAC Input
For 4S~15S LiPo/LiFe battery
1~55Amps 3050W max.
T
hanks for your purchasing the intelligent and powerful charger.
R
ead the ENTIRE instruction manual to become familiar with the features/functions of the device
before operating.
F
eel free to send an email to
jasonwang3a@163.com
or call at 86 755 2643 6165 should you have
any questions and suggestions.
Jason Wang
©
2018 Chargery Power Co., Ltd.
Mar. 31, 2018
Add: 212-216, Building 9#, ZhongXing Industrial Zone NanShan 518052 ShenZhen, China
Tel: +86 755 2643 6165, Fax: +86 755 2641 2865, Email: Jasonwang3a@163.com
Advertisement
Table of Contents
Related Manuals for Chargery C6050A
Summary of Contents for Chargery C6050A
- Page 1 86 755 2643 6165 should you have any questions and suggestions. Jason Wang © 2018 Chargery Power Co., Ltd. Mar. 31, 2018 Add: 212-216, Building 9#, ZhongXing Industrial Zone NanShan 518052 ShenZhen, China Tel: +86 755 2643 6165, Fax: +86 755 2641 2865, Email: Jasonwang3a@163.com...
- Page 2 C6050A, C6050B v2.0 High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. Features The Battery Charger has been designed to provide reliable, quality charging for battery systems in electric drive vehicles. It is a high efficiency wide input voltage charger, the charger can output 3000W at AC90V~265V in a smaller size.
-
Page 3: Protection Functions
Over temperature protection Anti spark on battery connection Reverse polarity protection of battery connection Prevent any cell from over charging, adjust charge current automatically fit with Chargery BMS Main battery type and cell count Terminal charge Voltage per cell Terminal... - Page 4 C6050A, C6050B v2.0 High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. 3. Please connect the charger to AC power source carefully. There two sockets on the C6050 charger, one is normal 3pin socket, another is large current terminal blocks.
- Page 5 AWG must be AWG14 at least. 2. Connect battery to charger. 3. Connect Chargery BMS24T to charger if possible. 4. 2 seconds later, the idle interface is displayed; the charger is ready to charge. Actual output voltage, current and internal temperature is also displayed, but C6050 is at idle mode (no output) to save power consumption.
- Page 6 C6050A, C6050B v2.0 High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. 7. Setup the charger work at Auto mode (only for C6050B), Finish all charge settings, set up Auto Charge is YES and press Knob for 3 seconds, the charger will start to charge, and work at Auto mode next time till disable it.
- Page 7 C6050A, C6050B v2.0 High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. Tips All parameters will be remembered by the C6050 till next change. Choose battery type, and press knob for 3 seconds start to charge at last setup, save operating time.
- Page 8 1KHz 5V or 3.3V square wave. Note: 1. To realize remote control charge by external device, please purchase C6050A. 2. If don’t connect external device, the charger can be operated by manual, if connect the external device on COM2, and send a suitable signal, after press Knob for 3 seconds start to charge, the charge current will be adjusted according to external signal.
- Page 9 C6050A, C6050B v2.0 High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. Remote control operation instructions 1. Connect to AC source, turn on the charger 2. After LCD initialize, the C6050 enter into idle model 3.
-
Page 10: Program Setup
5min, LCD back-light will be off to save the power, press knob resume the back-light. Temp. Unit Setup the Temperature unit, default ℃ or ℉, ---> ℃ ℃ C6050A or B V2.0 Software Version Note: All parameters will be remembered by the C6050 till next change. www.chargery.com page total... - Page 11 C6050A, C6050B v2.0 High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. As power supply On Battery type interface, choose “power supply” , the charger will work as a programmed power supply; you can set up the output voltage...
-
Page 12: Environment Requirements
Anti spark when connect battery to charger Reverse polarity protection of battery connection Prevent any cell from over charging, adjust charge current automatically fit with Chargery BMS Mechanical Characteristics Size：268*147*127 (L*W*H, mm) or 10.55 * 5.8 * 5.0 (L*W*H, inch) Weight: 4.3Kg without input cable... -
Page 13: Packaging Information
High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. Packaging Information C6050 base unit: 1pcs Power cable: 1pcs Communication wire: black, 1pcs XT-90 female conntor:1pcs, EHR-2P wire: 1pcs, only for C6050A. www.chargery.com page total... - Page 14 Total solution (C6050A and C6050B) on E-Vehicle application Chargery BMS is a successful combination with the charger. When all cell voltage reach setup value, the BMS will communicate with the charger, the charger will continue to charge at a smaller current rather than stopping charging.
-
Page 15: Error Information
C6050A, C6050B v2.0 High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. Error Information When the following error events trigged, the beeper will sound for 10 seconds and error information will be displayed, you can press... -
Page 16: Related Parts
C6050A, C6050B v2.0 High efficiency wide input voltage PFC programmable Charger 90V~265VAC input For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. Related parts The following parts are similar to the C6050 and maybe of interest: MODEL DESCRIPTION COMMENTS BMS16T 2-16S battery management system... -
Page 17: Application Notes
Application Notes. Storage Energy System If C6050 charger applied to large capacity energy System such as PV system, C6050A is suggested, the charge current can be controlled by remote device. The C6050A can receive PWM signal and adjust charge current. -
Page 18: Version History
Normal charge mode, Setup battery type, cell count and all charge √ √ parameters Power supply mode, 12-55V adjusted, 1-55A adjusted √ √ BMS control charge, Charge current controlled by Chargery BMS, √ √ prevent any cell voltage from over charged www.chargery.com page total... -
Page 19: Warranty And Service
For 4S~15S LiPo/LiFe battery 1~55Amps 3050W max. Warranty and Service Chargery Power Co., Ltd. as manufacture of R/C, E-Vehicle and UAV power warrants C6050 charger to be free of defects in material and workmanship. This warranty is effective for months from date of purchase.
