Microprocessor controlled high performance rapid charger/balancer for LiPo
battery packs with cell balancer.
Charge current up to 2A, 26W, for 2-3 LiPo cells
Chargery Power Co., Ltd.
Head Office
Add: Room 20B, Haihui building, Nanhai Avenue, NanShan, ShenZhen, China
Zip code: 518054
Tel: +86 755 2643 6165
Fax: +86 755 2641 2865
Email: Jasonwang3a@163.com
Web: www.chargery.com
Operating Instructions
CHARGERY
320B
V1.1
Advertisement
Table of Contents
Related Manuals for Chargery 320B
Summary of Contents for Chargery 320B
-

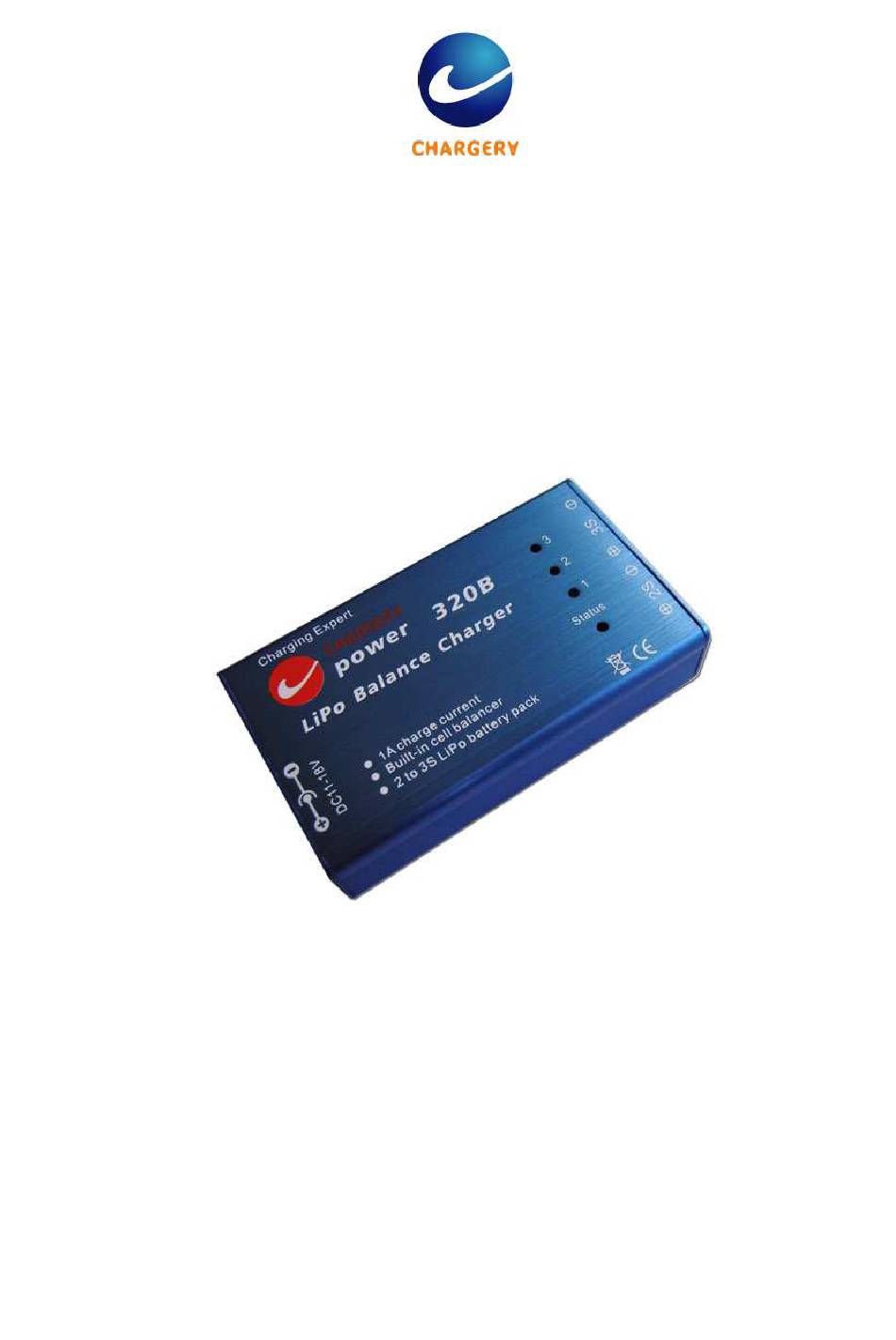

Page 1: Operating Instructions
Microprocessor controlled high performance rapid charger/balancer for LiPo battery packs with cell balancer. Charge current up to 2A, 26W, for 2-3 LiPo cells Chargery Power Co., Ltd. Head Office Add: Room 20B, Haihui building, Nanhai Avenue, NanShan, ShenZhen, China Zip code: 518054... - Page 2 Weight:70g Operating instructions Connect the DC power or AC Adapter (12V, up to 3.0A) to the CY-320B. The charging LED will on for 1 second and then OFF. Connect the 2S or 3S battery pack to the CY-320B, Charging LED should be RED, the charger start to charge.
- Page 3 Green: Fully charged Warning and error message During charge, any cell voltage is lower than 2.7V/cell, CY-320B will charge at 100mA, the charging indictor blinks and the beeper sounds. When any cell voltage is between 2.7-4.2V, the charge will charge at 2.0A (Constant Current mode).
- Page 4 Warranty and Service Chargery Power Co., Ltd. as manufacture of R/C model power warrants its CHARGERY charger and battery pack to be free of defects in material and workmanship. This warranty is effective for 18 months from date of purchase.
