Moniteq Crypto-Lock CC-8521B Instruction Manual page 5

Features:
* 3, 4, 5, or 6-digit
* Adjustable open
PIN
Block after invalid
*
duration
* Door Propped Alarm
PINs
* Forced Door Alarm
* Anti Follow Through
* Built-in lock power supply with
battery back-up capability
* Built in Door Bell function
Alarm and
Annunciator
Output
Release
Button
115/230 VAC,
60Hz

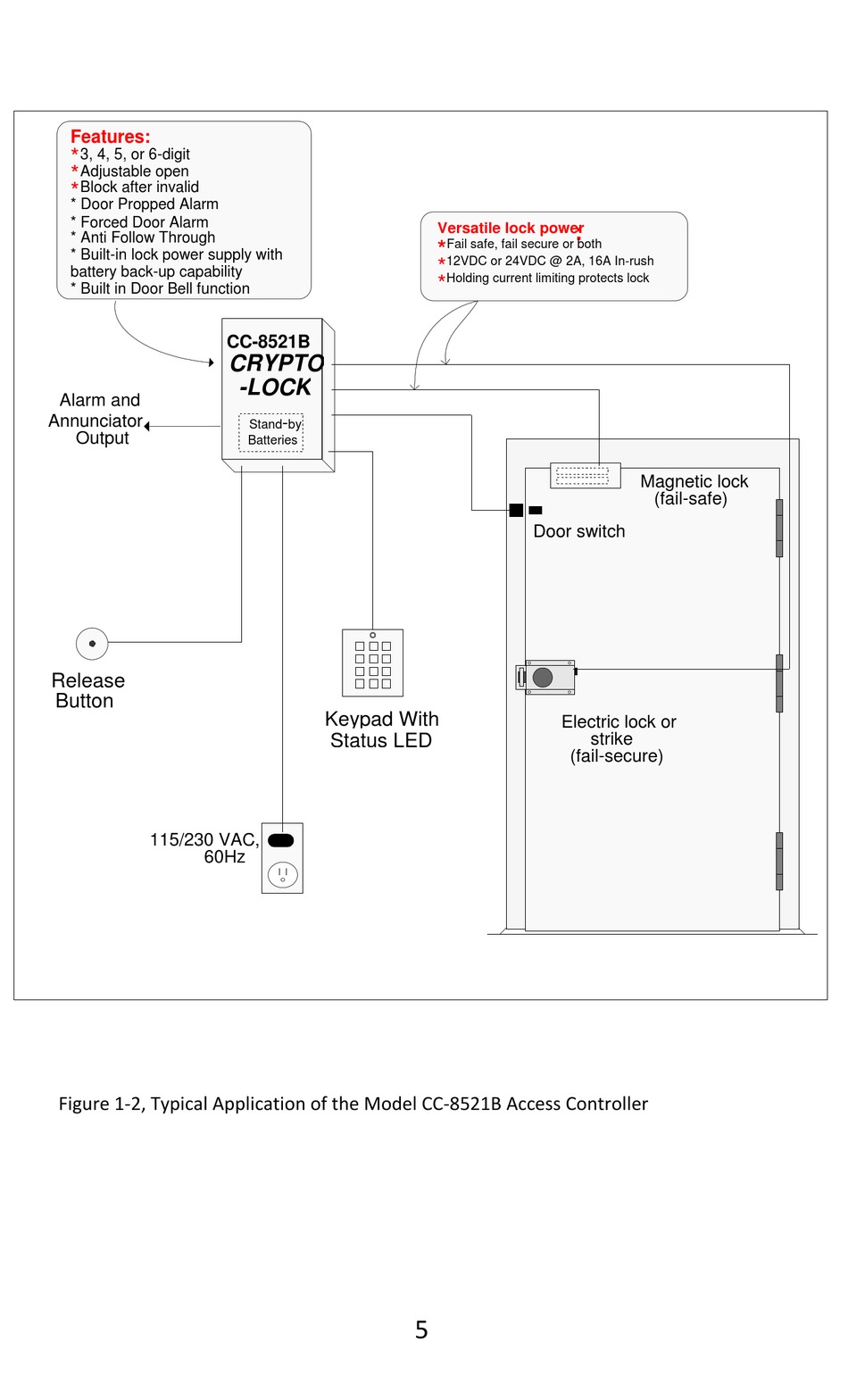

Figure 1-2, Typical Application of the Model CC-8521B Access Controller
CC-8521B
CRYPTO
-LOCK
-
Stand by
Batteries
Keypad With
Status LED
Versatile lock power
Fail safe, fail secure or both
*
12VDC or 24VDC @ 2A, 16A In-rush
*
Holding current limiting protects lock
*
Door switch
Electric lock or
(fail-secure)
5
:
Magnetic lock
(fail-safe)
strike
