Table of Contents Symbols used in the manual..........2 Safety instructions ..............3 Operating elements ..............4 Hot Pod CF - the fast 100 mm tripod........5 Operation of the Hot Pod CF ..........6 5.1 Setting up ..............6 5.2 Dismantling ..............8 5.3 Mounting of the fluid head ..........9 5.4 Dismounting the fluid head ........10...
Page 4
Hot Pod CF Inhaltsverzeichnis Symbolerklärung der Benutzerinformation......15 Sicherheitshinweise............16 Bedienelemente ..............17 Hot Pod CF - das schnelle 100 mm Stativ ......18 Bedienung des Hot Pod CF ..........19 5.1 Aufstellen ..............19 5.2. Abbauen..............21 5.3. Fluidkopf einsetzen.............22 5.4. Fluidkopf entfernen ............24 5.5. Gasfeder wechseln ............25 5.6 Reinigungsempfehlung ..........26...
Hot Pod CF Manual Symbols used in the manual Indicates an immediate danger to the life and health of persons. Non-observance of these instructions will have serious harmful consequences to health and possi- ble fatal injuries. Danger Indicates a possible danger to the life and health of persons.
-> The Hot Pod CF must be placed vertically. Inclined ground has to be compensated with adjusting the length of the tripod legs. -> Place the Hot Pod CF only on ground that is able to support the load. -> Take additional safety actions against hori- Caution zontal force (e.g.
Hot Pod CF Manual Operating elements Transport Lock Column Lock (Lock) to lock the center column Column Hood at bot- tom covering the pneumatic spring - 4 -...

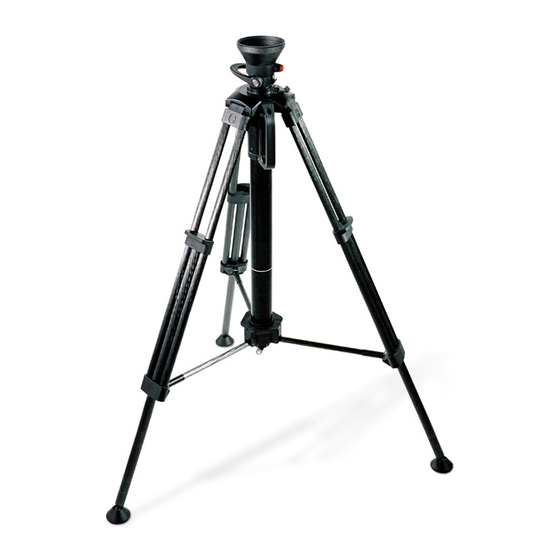

Hot Pod CF Hot Pod CF - the fast 100 mm tripod The 100 mm tripod Hot Pod CF is the perfect addition to the Sacht- ler fluid heads DV8/100, DV 12, Video 15/DV 15 and Video 18. The Hot Pod CF's central locking releases all three legs simulta- neously with one movement making the Hot Pod CF ready to use in no time.
Hot Pod CF Manual Operation of the Hot Pod CF 5.1 Setting up -> While holding Hot Pod CF at it´s transport hand- le 1, transfer grip to two adjacent tripod legs at a position slightly above the centerplate. -> Spread out the tripod legs.
Page 11
-> Push down the head to relieve the hook 6 of the transport lock. -> Disengage the hook 6 of the transport lock. If the Hot Pod CF is supplied with the pneumatic spring, the center column will raise automatically. Risk of injury...
-> The Hot Pod CF is ready to use now. 5.2 Dismantling -> For dismantling the Hot Pod CF proceed in reverse order than for setting up. -> Engage the transport lock first and then lock the center column.
Manual Hot Pod CF 5.3 Mounting the fluid head Note concerning the change of the fluid head -> Compress the center column completely. -> Always lock the center column when changing Important the fluid head. -> Lock the horizontal brake at the fluid head.
Hot Pod CF Manual -> Turn the fluid head and stop turning just before the fluid head is tight. Releasing the red mounting button 2 and the leveling-lever 1, the leveling-lever will rotate to a horizontal position. -> Level the fluid head by pushing down the leveling-lever 1.
Loosen the column lock 1. -> Extend the column completely. -> Lock the column lock 1 again. -> Turn the Hot Pod CF upside down. -> Unscrew and remove the column hood 2. -> Change the pneumatic spring 3. ->...
-> Use a mild detergent only. Note You maintain the full functionality of your Hot Pod CF when you remove dust and grease from the legs and the glossy lathed rim of the tulip 1 on a regular basis. - 12 -...
100 mm Off-ground spreader integrated Rubber feet at the legs integrated Accessories 7.1 Fluid heads The Hot Pod CF supports the following fluid heads: Hot Pod CF 10 Hot Pod CF 14 Video 15 DV 8/100 Video 18 DV 12...
Hot Pod CF Manual 7.2 Pneumatic springs The Hot Pod CF can be equipped with different types of pneumatic springs. Type of pneumatic Code-Number spring Pneumatic spring, ready to mount, 100 N sst13b0201 with hoods 140 N sst13b0301 Pneumatic spring,...
Benutzerinformation Hot Pod CF Symbolerklärung der Benutzerinformation Sie werden auf eine unmittelbar drohende Gefahr hingewiesen. Das Nichtbeachten dieser Hinweise hat schwere gesundheitsschädliche Auswirkungen zur Folge, bis Gefahr hin zu lebensgefährlichen Verletzungen. Sie werden auf eine möglicherweise drohende Gefahr hingewiesen. Das Nichtbeachten dieser Hinweise kann schwere gesundheitsschädliche Auswirkungen zur Folge...
Hot Pod CF Benutzerinformation Sicherheitshinweise Verletzungsgefahr beim Einsatz einer Gasfeder Das Hot Pod CF ist mit einer speziellen Gasfeder in der Mittelsäule ausgerüstet. -> Öffnen Sie keinesfalls die Gasfeder, da diese einen sehr hohen Innendruck hat. Gefahr -> Vor der Entsorgung muss die Gasfeder drucklos sein.
Benutzerinformation Hot Pod CF Bedienelemente Transportsiche- rung Säulenverriegelung (Lock) zum Verriegeln der Mittel- säule Säulenkappe an Unterseite zur Abdeckung der Gasfeder - 17 -...
Hot Pod CF Benutzerinformation Hot Pod CF - das schnelle 100 mm Stativ Das 100 mm Stativ Hot Pod CF ist die perfekte Ergänzung für die Sachtler Fluidköpfe DV8/100, DV 12, Video 15/DV 15 und Video 18. Mit der Zentralverriegelung gibt das Hot Pod CF mit einem Handgriff alle Beine gleichzeitig frei und ist in kürzester Zeit...
Benutzerinformation Hot Pod CF Bedienung des Hot Pod CF 5.1 Aufstellen -> Halten Sie das Hot Pod CF am Transportgriff 1. -> Fassen Sie dann zwei Beine etwas oberhalb der Griffplatte und ziehen Sie die Beine auseinander. Die Griffplatte 2 befindet sich jetzt an der Mittelsäule zwi-...
Page 24
Hot Pod CF Benutzerinformation -> Lösen Sie die Säulenver- riegelung (Lock) 5. -> Drücken Sie auf den Kopf, um den Haken der Transportsicherung 6 zu entlasten. -> Klappen Sie den Haken der Transportsicherung 6 nach außen. Bei eingesetzter Mittelsäulen- Pneumatik fährt die Säule selbsttätig aus.
Die Beine sind entriegelt und bewegen sich frei. -> Halten Sie das Hot Pod CF am Transportgriff und die Griff- platte 1 an der Markierung 2. Schieben Sie die Beine ganz in die Halterung, indem Sie das Hot Pod CF nach unten drücken.
Hot Pod CF Benutzerinformation -> Sie können dann die Griff platte 1 ganz nach oben schieben und die Beine zur Mittelsäule hin schließen. Die Beine sind für den Trans- port verriegelt. 5.3 Fluidkopf einsetzen Hinweis zum Wechsel des Fluidkopfes ->...
Page 27
Benutzerinformation Hot Pod CF Hinweis zur Montage Wichtig -> Prüfen Sie die richtige Position des Kopfes zum Einschrauben. -> Kippen Sie den Fluidkopf leicht hin und her. -> Drehen Sie den Fluidkopf gleichzeitig in kleinen Schritten. In der richtigen Position spüren Sie ein Ein- rasten des roten Montageknopfs.
Hot Pod CF Benutzerinformation 5.4 Fluidkopf entfernen Hinweis zum Wechsel des Fluidkopfes Wichtig -> Verriegeln Sie für das Wechseln des Fluidkopfes immer die Mittelsäule (Lock). -> Stellen Sie die Horizontalbremse am Fluidkopf fest. -> Schwenken Sie den Nivel- lierhebel 1 nach unten und halten Sie ihn gedrückt.
Fahren Sie die Mittelsäule ganz aus. -> Stellen Sie die Säulenverriegelung (Lock) 1 wieder fest. -> Stellen Sie das Hot Pod CF auf den Kopf. -> Drehen Sie die Säulenkappe 2 gegen den Uhrzeigersinn und nehmen Sie sie ab. ->...
Reinigungs- und Pflegehinweise -> Verwenden Sie zur Reinigung nur mildes Reinigungsmittel. Hinweis Sie erhalten die volle Funktions- fähigkeit Ihres Hot Pod CF wenn Sie regelmäßig Beine, Rohre und den blankgedrehten Rand der Tulpe 1 von Staub und Fett befreien. - 26 -...
Mittelspinne Integriert Gummiteller an den Stativfüßen Integriert Zubehör 7.1 Fluidköpfe Das Hot Pod CF eignet sich für die folgenden Fluidköpfe: Hot Pod CF 10 Hot Pod CF 14 Video 15 DV 8 / 100 Video 18 DV 12 - 27 -...
Hot Pod CF Benutzerinformation 7.2 Gasfedern Sie können das Hot Pod CF mit unterschiedlich starken Gasfedern ausrüsten. Typ Gasfeder Code-Nummer Gasfeder, montierfertig, 100 N sst13b0201 mit Abdeckkappen 140 N sst13b0301 Gasfeder, einzeln, 100 N sst13e0202 ohne Abdeckkappen 140 N sst13e0302 7.3 Hot Pod CF Dolly...
