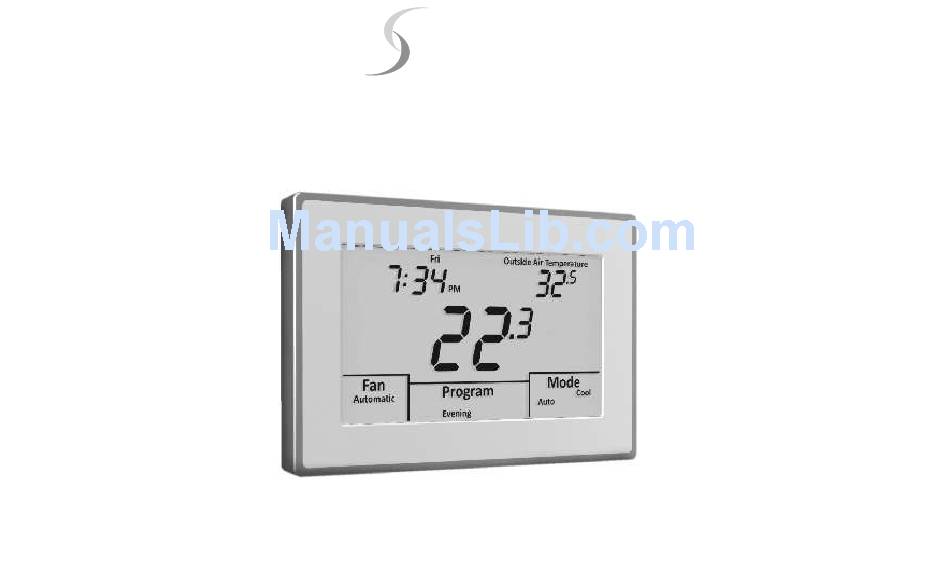

- Page 1 Smart Temp Apollo P/n 44-800 Installation Manual Version 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ......................6 Getting started ....................7 Installing the thermostat ..................8 Disassembly ...................8 Thermostat location ................8 Mounting the subbase .................8, 9 Terminal designations ................10 Installing the batteries ..................11 Setting the system switches ..............12, 13... - Page 3 TABLE OF CONTENTS System switch functions ..............13 Typical wiring diagrams ...............14-24 Heat Only (Gas)..............14 Heat Only (Electric)..............15 Cool Only.................16 2 or 3 Cool ................17 1 Heat / 1 Cool ...............18 2 Heat / 1 Cool................19 1 Heat / 2 Cool................20 1 Heat / 1 Cool Heat Pump.............21 2 Heat / 1 Cool Heat Pump.............22 2 Heat / 2 Cool Heat Pump.............23...
- Page 4 TABLE OF CONTENTS Installer setup menu ...................25-46 Entering the menu ................25 Selecting programmable or non-programmable operation ....26 Selecting program days (programmable mode)........27 Selecting programmable fan option.............28 Selecting mode of operation..............29 Touchscreen lock options..............30 Selecting the cooling setpoint limit............31 Selecting the heating sepoint limit............32 Selecting the temperature display............33 Selecting time format................34 Selecting setpoint display option............35...
- Page 5 TABLE OF CONTENTS Installer setup menu (Continued) Selecting Adaptive Recovery..............37 Filter reminder..................38 Selecting the heating and cooling differential........39 Internal sensor calibration..............40 Remote sensor options................41 Assigning the ‘A’ relay................42 Selecting low balance point..............43 Selecting high balance point..............44 Audible beep option................45 Factory reset..................46 Remote sensor installation.................47-51 Remote sensors....................47...
- Page 6 TABLE OF CONTENTS Remote sensor installation (Continued) Indoor sensor wiring ..................47-48 Using multiple sensors for temperature averaging..........49 Outdoor sensor wiring...................50-51 Temperature sensor calibration chart..............51 Testing ......................52-55 Testing fan operation...................52 Testing conventional heating and cooling operation........52-53 Testing conventional heat pump operation............53 Testing fossil fuel operation................53-54 Testing low balance point (heat pump or fossil fuel)...........54 Testing high balance point (heat pump or fossil fuel).........55...
-
Page 7: Introduction

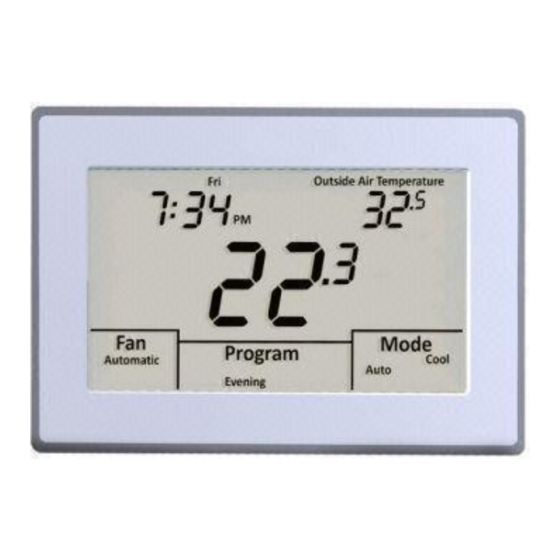

INTRODUCTION The Smart Temp 44-800 “Apollo” is a feature-rich touchscreen thermostat that can be battery powered or hardwired to the HVAC equipment. Using a common sense approach to the installation will ensure this product is installed properly and to the customer’s satisfaction. -
Page 8: Getting Started
GETTING STARTED As with any HVAC project, careful installation is the key to a successful outcome. Time taken during the installation process will be rewarded with fewer call-backs. The steps required to install the 44-800 thermostat are as follows: 1. Read and understand this Installation Manual and Thermostat User Manual. 2. -
Page 9: Installing The Thermostat
INSTALLING THE THERMOSTAT DISASSEMBLY There are two release slots located on the bottom of the thermostat. Gently push the flat blade of a small screwdriver into one slot at a time and pry upward until the catch disengages. Carefully swing the thermostat upward and away from the subbase. (Figure 1) THERMOSTAT LOCATION The 44-800 should be installed in a location that represents the ambient space temperature. - Page 10 (Figure 2) Do not over tighten the mounting screws as the subbase may warp causing the improper seating of the thermostat connecting pins to the terminal blocks. Smart Temp Aust P/L Use a properly sized screwdriver and BATTERY COMPARTMENT back each screw terminal out (counter www.thermostat.com.au...
-
Page 11: Terminal Designations
INSTALLING THE THERMOSTAT TERMINAL DESIGNATIONS Based on the 44-800 slide switch and installer option configurations, some terminals have multiple output functions. TERMINAL DESIGNATION Outside Outdoor Sensor Sensor Common Sensor Common Inside Indoor Sensor W2, Y2, Compressor 2, Aux, EH W1, Y3, Reversing Valve Y1, Compressor 1 24 Volt (Hot) 24 Volt (Common) -
Page 12: Installing The Batteries
Even if the thermostat is hardwired, battery backup is essential to maintain the real-time clock in the event of a power failure. All other memory is non-volatile in the event of battery or primary power loss. (Figure 3) Smart Temp Australia P/L www.thermostat.com.au Y G Com R C... -
Page 13: Setting The System Switches
SETTING THE SYSTEM SWITCHES The 44-800 contains a set of four system switches located on the thermostat printed circuit board. (Figure 4) The switches are used to match the thermostat with the HVAC system requirements. Refer to the system switch functions on the next page to properly configure the thermostat. -
Page 14: System Switch Functions
SYSTEM SWITCH FUNCTIONS SW 1 - Equipment Type Switch 1 sets the equipment type. For heat / cool equipment, set the switch to the OFF position (factory default). For heat pump equipment, set switch 1 to the ON position. SW 2 - Fan or Reversing Valve Heat Cool Logic (SW 1OFF). -
Page 15: Typical Wiring Diagrams
TYPICAL SYSTEM WIRING DIAGRAMS HEAT ONLY (Gas) OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT HEAT 1 FAN 1 OUTDOOR INDOOR SENSOR SENSOR RELAY RELAY Optional 24 V LINE Switch Settings Sw1 = OFF (Heat / Cool) Sw2 = OFF (Equipment controls fan) Sw3 = OFF (No affect on setup) -
Page 16: Heat Only (Electric)
TYPICAL SYSTEM WIRING DIAGRAMS HEAT ONLY (Electric) OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT HEAT 1 FAN 1 OUTDOOR INDOOR SENSOR SENSOR RELAY RELAY 24 V LINE Switch Settings Sw1 = OFF (Heat / Cool) Sw2 = ON (Thermostat controls fan) Sw3 = OFF (No affect on setup) -
Page 17: Cool Only
TYPICAL SYSTEM WIRING DIAGRAMS COOL ONLY OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT FAN 1 OUTDOOR INDOOR SENSOR SENSOR RELAY COOL 1 RELAY 24 V LINE Switch Settings Sw1 = OFF (Heat / Cool) Sw2 = ON (Thermostat controls fan) Sw3 = OFF (No affect on setup) -
Page 18: Or 3 Cool
TYPICAL SYSTEM WIRING DIAGRAMS 2 OR 3 COOL (3 COOL ILLUSTRATED) OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT COOL 3 FAN 1 OUTDOOR INDOOR RELAY SENSOR SENSOR RELAY COOL 2 COOL 1 RELAY RELAY 24 V LINE Switch Settings Sw1 = OFF (Heat / Cool) -
Page 19: Heat / 1 Cool
TYPICAL SYSTEM WIRING DIAGRAMS 1 HEAT / 1 COOL (GAS) OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT HEAT 1 FAN 1 OUTDOOR INDOOR SENSOR SENSOR RELAY RELAY COOL 1 RELAY 24 V LINE Switch Settings Sw1 = OFF (Heat / Cool) Sw2 = OFF (Equipment controls fan) -
Page 20: Heat / 1 Cool
TYPICAL SYSTEM WIRING DIAGRAMS 2 HEAT / 1 COOL (GAS) OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT HEAT1 FAN 1 OUTDOOR INDOOR RELAY SENSOR SENSOR RELAY HEAT 2 COOL 1 RELAY RELAY 24 V LINE Switch Settings Sw1 = OFF (Heat / Cool) Sw2 = OFF... -
Page 21: Heat / 2 Cool
TYPICAL SYSTEM WIRING DIAGRAMS 1 HEAT / 2 COOL (GAS) OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT HEAT 1 FAN 1 OUTDOOR INDOOR SENSOR SENSOR RELAY RELAY COOL 1 COOL 2 RELAY RELAY 24 V LINE Switch Settings Sw1 = OFF (Heat / Cool) Sw2 = OFF... -
Page 22: Heat / 1 Cool Heat Pump
TYPICAL SYSTEM WIRING DIAGRAMS 1 HEAT / 1 COOL HEAT PUMP OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT R/VALVE FAN 1 OUTDOOR INDOOR SENSOR SENSOR RELAY RELAY COMP 1 RELAY 24 V LINE Switch Settings Sw1 = ON (Heat Pump) Sw2 = OFF (OFF=‘O’... -
Page 23: Heat / 1 Cool Heat Pump
TYPICAL SYSTEM WIRING DIAGRAMS 2 HEAT / 1 COOL HEAT PUMP OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT R/VALVE FAN 1 OUTDOOR INDOOR SENSOR SENSOR RELAY RELAY COMP 1 RELAY RELAY 24 V LINE Switch Settings Sw1 = ON (Heat Pump) Sw2 = OFF (OFF=’O’... -
Page 24: Heat / 2 Cool Heat Pump
TYPICAL SYSTEM WIRING DIAGRAMS 2 HEAT / 2 COOL HEAT PUMP (NO AUXILIARY HEAT) OPTIONAL REMOTE SENSOR Factory Link TERMINALS 24C Optional THERMOSTAT EQUIPMENT R/VALVE FAN 1 OUTDOOR INDOOR SENSOR SENSOR RELAY RELAY COMP 1 COMP 2 RELAY RELAY 24 V LINE Switch Settings Sw1 = ON... -
Page 25: Wire - Gas Heating
TYPICAL SYSTEM WIRING DIAGRAMS 2 Wire - Gas Heating OPTIONAL REMOTE SENSOR TERMINALS THERMOSTAT EQUIPMENT OUTDOOR INDOOR SENSOR SENSOR Gas Heater Switch Settings Sw1 = OFF (Heat Cool) Sw2 = OFF (OFF=Fan controlled by Gas Heater) Sw3 = ON (No short cycle protection required) Sw4 = ON (Leave OFF) In Installer Menu, set 4 Fn = H... -
Page 26: Installer Setup Menu
INSTALLER SETUP MENU ENTERING THE MENU Touch and hold both the Clock and Mode section for 5 seconds to enter the Installer Menu. To advance through the menus, touch the Mode section. -
Page 27: Selecting Programmable Or Non-Programmable Operation
INSTALLER SETUP MENU SELECTING THE PROGRAM The first menu 1:PR selects programmable or non-progrmmable operation. Press the UP or DOWN arrows to change the selection. The factory default is 4 (4 schedules per day). Program Morning Day Evening Night Manual Mode (non-programmable) 2 Schedules Per Day (Day / Night) 4 Schedules Per Day (Morning / Day / Evening / Night) -
Page 28: Selecting Program Days (Programmable Mode)
INSTALLER SETUP MENU SELECTING PROGRAM DAYS If menu 1:PR is set to 2 or 4, 2:PD is used to select 5 + 2 programming or 7 day programming. Touch the UP or DOWN arrows to change the selection. The factory default is 52. -
Page 29: Selecting Programmable Fan Option
INSTALLER SETUP MENU SELECTING PROGRAMMABLE FAN OPTION Menu 3:PF is the Programmable Fan option which allows selecting continuous or auto fan operation for each program event when programmable mode is enabled. Program ON = Programmable Fan OFF = No Programmable Fan... -
Page 30: Selecting Mode Of Operation
INSTALLER SETUP MENU SELECTING MODE Menu 4:FN selects the mode of operation. The factory default is FN=A for auto changeover. Touch the UP and DOWN arrows to change the selection. AUTO - = Manual Changeover A = Auto Changeover H = Heat Only C = Cool Only AO = Auto / Off Only... -
Page 31: Touchscreen Lock Options
INSTALLER SETUP MENU TOUCHSCREEN LOCK OPTIONS Menu 5:LC allows you to prevent changes to all or part of the touchscreen functions. The factory default is OFF. Touch the UP and DOWN arrows to the selection. OFF = All Functions Unlocked 4 = UP / DOWN Arrows Locked 8 = Fan / Program / Mode / Clock 1 = Program Locked... -
Page 32: Selecting The Cooling Setpoint Limit
INSTALLER SETUP MENU SELECTING THE COOLING LIMIT Menu 6:CL selects the minimum cooling set point. The factory default is 10° FC. Touch the UP and DOWN arrows to adjust the limit from 6° - 50° C. -
Page 33: Selecting The Heating Sepoint Limit
INSTALLER SETUP MENU SELECTING THE HEATING LIMIT Menu 7:HL selects the maximum heating set point limit. The factory default is 35° C. Touch the UP and DOWN arrows to adjust the limit from 5° - 49° C. Heat... -
Page 34: Selecting The Temperature Display
INSTALLER SETUP MENU SELECTING TEMPERATURE DISPLAY Menu 8:TD selects the temperature to be displayed in Fahrenheit or Celsius. The factory default is C (Celsius). Touch the UP and DOWN arrows to change the display setting. F = Fahrenheit C = Celsius... -
Page 35: Selecting Time Format
INSTALLER SETUP MENU SELECTING TIME FORMAT Menu 9:CL selects the time format which can be 12 hour or 24 hour. The factory default is 12 (12 hour). Touch the UP and DOWN arrows to change the format. 12 = 12 Hour 24 = 24 Hour (Military Time) -
Page 36: Selecting Setpoint Display Option
INSTALLER SETUP MENU SELECTING SETPOINT DISPLAY OPTION Menu 10:ST allows the option of continuously displaying the setpoint temperature with the space temperature. The factory default is OFF (no setpoint displayed). OFF = No Setpoint Displayed ON = Display Setpoint... -
Page 37: Selecting Back Light Option
INSTALLER SETUP MENU SELECTING BACK LIGHT OPTION Menu 11:BL allows you the select the back light option. The factory default is ON (Back light ON). Touch the UP and DOWN arrow to change the option. ON = Back Light On (Light stays on for 10 seconds when screen is touched) OFF = No Back Light All =Back Light on constantly. -
Page 38: Selecting Adaptive Recovery
INSTALLER SETUP MENU SELECTING ADAPTIVE RECOVERY Menu 12:RC allows you the select the Adaptive Recovery option when the thermostat is configured as programmable. Adaptive Recovery compares the space temperature deviation from setpoint and rate of recovery history to bring the equipment on and reach the setpoint at the scheduled time. -
Page 39: Filter Reminder
INSTALLER SETUP MENU FILTER REMINDER Menu 13:FT allows you to select a time when the thermostat will display FLT as a reminder that the HVAC system filters need to be changed. The factory default is OFF. Touch the UP and DOWN arrows to change the filter reminder time. 010 = 100 Hours 100 = 1000 Hours (Up to 9,000 hours in 100 hour steps) -
Page 40: Selecting The Heating And Cooling Differential
INSTALLER SETUP MENU CHANGING THE HEATING AND COOLING DIFFERENTIAL Menu 14:SP allows you to select the temperature differential between the heating and cooling set point. The factory default is 1 (0.5° C) Touch the UP and DOWN arrows to change the differential. 1 = 0.5°... -
Page 41: Internal Sensor Calibration
INSTALLER SETUP MENU INTERNAL SENSOR CALIBRATION Menu 15:CA allows you to re-calibrate the internal temperature sensor. The factory default is 0 (0° C). Touch the UP and DOWN arrows to adjust the calibration from -5 ° to +5° C... -
Page 42: Remote Sensor Options
INSTALLER SETUP MENU REMOTE SENSOR Menu 16:TT allows you to select indoor remote sensor only or remote sensor with internal sensor. The factory default is RS which disables the internal sensor only when an indoor remote sensor is wired. Touch the UP and DOWN arrows to change the option to AU if you want to use the internal sensor with a remote sensor as part of temperature averaging. -
Page 43: Assigning The 'A' Relay
INSTALLER SETUP MENU ASSIGNING THE ‘A’ RELAY Menu 17:R4 allows you to assign the ‘A’ relay based on the specific equipment configuration. The factory default is OFF. Touch the UP and DOWN arrows to change the ‘A’ relay assignment. Note that selections change based on Heat / Cool or Heat Pump (Sw1) configuration. -
Page 44: Selecting Low Balance Point
INSTALLER SETUP MENU LOW BALANCE POINT SELECTION USING OUTDOOR SENSOR Menu 18:LB allows you to select a low balance point setting when the thermostat is configured for Fossil Fuel. When the outdoor temperature falls below the balance point setting, the compressor is locked out and only the fossil fuel furnace is used for heating. -
Page 45: Selecting High Balance Point
INSTALLER SETUP MENU HIGH BALANCE POINT SELECTION USING OUTDOOR SENSOR Menu 19:HB allows you to select a high balance point setting when the thermostat is configured for Fossil Fuel. When the outdoor temperature rises above the balance point setting, the furnace is locked out and only the compressor is used for heating. -
Page 46: Audible Beep Option
INSTALLER SETUP MENU AUDIBLE BEEP Menu 20:BP allows you to turn the audible beep on or off. The factory default is ON. Touch the UP and DOWN arrows to turn the audible beep OFF. -
Page 47: Factory Reset
INSTALLER SETUP MENU FACTORY RESET Menu 21:RS allows you to reset the thermostat to the original factory defaults. To reset the thermostat, touch the UP and DOWN arrows and set to ON. -
Page 48: Remote Sensor Installation
REMOTE SENSOR INSTALLATION REMOTE SENSORS There are two type of remote sensors. The RS-1 is a single sensor that can be used indoors or outdoors. The RS-2 contains two sensors. A combination of both sensors can be used for indoor temperature averaging with or without the onboard sensor. Use separate 18-2 shielded cable when wiring sensors. -
Page 49: Remote Sensor Installation (Continued)
REMOTE SENSOR INSTALLATION Locate the sensor in the same manner as the thermostat. Mount the sensor 300mm away from any outside wall. Do not install the sensor behind doors, in corners or other dead air spaces. Keep the sensor away from direct air flow, supply registers or near sources of heat such as lamps and appliances. -
Page 50: Using Multiple Sensors For Temperature Averaging
REMOTE SENSOR INSTALLATION USING MULTIPLE SENSORS FOR TEMPERATURE AVERAGING Multiple indoor remote sensors can be wired in series/parallel for temperature averaging. The total value of the sensors must equal 10kÙ @ 25° C. The onboard sensor is not part of the equation even if it is configured as part of the averaging circuit. -
Page 51: Outdoor Sensor Wiring
REMOTE SENSOR INSTALLATION OUTDOOR SENSOR WIRING When the RS-1 is used as an outdoor sensor, the 44-800 will display the outside air temperature as well as control high and low balance points for fossil fuel systems. Refer to 16:TT in the installer setup menu to select the proper sensor option. The outdoor sensor wires to the Sensor Common and Outside air terminals. -
Page 52: Temperature Sensor Calibration Chart
REMOTE OUTDOOR SENSOR INSTALLATION Mount the sensor on a vertical exterior surface below an overhang. Choose a location protected from direct sunlight and exposure to excessive moisture. Follow the same wiring procedures as installing an indoor sensor. TEMPERATURE SENSOR CALIBRATION CHART Temperature Resistance Temperature... -
Page 53: Testing
TESTING The 44-800 incorporates a short-cycle timer which can be disabled during testing by setting slide switch 3 to the ON position. Once testing is completed, the timer needs to be re- initiated by setting the switch to OFF. TESTING FAN OPERATION Touch MODE until the word OFF is displayed. -
Page 54: Testing Conventional Heat Pump Operation
TESTING Touch MODE until Cool appears. Touch the DOWN arrow and lower the setpoint a few degrees below the space temperature. After a brief moment, the internal fan ‘G’ and cooling ‘Y’ relay will energize. The word Cool will flash. If the thermostat has been configured for two stage cooling, lower the set point a few degrees and the second stage cooling relay ‘A’... -
Page 55: Testing Low Balance Point (Heat Pump Or Fossil Fuel)
TESTING conventional heat pump system with the exception that the heat pump is never allowed to run when the fossil fuel furnace is energized. Whenever the thermostat calls for second stage (auxiliary) heat, the compressor ‘Y’ relay is de-energized along with the fan ‘G’ relay and the ‘A’... -
Page 56: Testing High Balance Point (Heat Pump Or Fossil Fuel)
TESTING TESTING HIGH BALANCE POINT (Heat Pump or Fossil Fuel) High balance point is designed to prevent the auxiliary heat ‘A’ relay from energizing when the outdoor temperature is above the balance point setting. To test the high balance point setting, set 19:HB below the displayed outdoor temperature and force a call for second stage heating. -
Page 57: Basic Troubleshooting
BASIC TROUBLESHOOTING SYMPTOM POSSIBLE FAULT AND REMEDY No LCD display If thermostat is battery powered only, remove battery compartment and check to see that the positive (+) and negative (-) ends of each battery are oriented properly. If thermostat is hardwired, remove the thermostat from the subbase and check for 24 Volts across terminals ‘C’... - Page 58 BASIC TROUBLESHOOTING SYMPTOM POSSIBLE FAULT AND REMEDY Thermostat not displaying Check wiring at outdoor sensor and sensor terminals on outdoor temperature thermostat subbase. Outdoor sensor wires to terminals Outside sensor and Sensor Common. Heat or Cool is flashing This is not a fault but indicates that the thermostat heating or cooling relay is energized.
-
Page 59: Specifications
SPECIFICATIONS Input Voltage (Hardwired) 20-30 VAC 50/60 Hz Relay Rating 24 VAC @ 1 Amp maximum per relay Battery Power (2) AAA 1.5 V Operating Temperature 0° C to 55° C Operating Relative Humidity 0-95% (non-condensing) Storage Temperature 0° C to 65° C Size: 125 W x 85 H x 25 D mm LCD Display Size... - Page 60 Smart Temp 20/1488 Ferntree Gully Rd Knoxfield Victoria 3180 www.thermostat.com.au...
