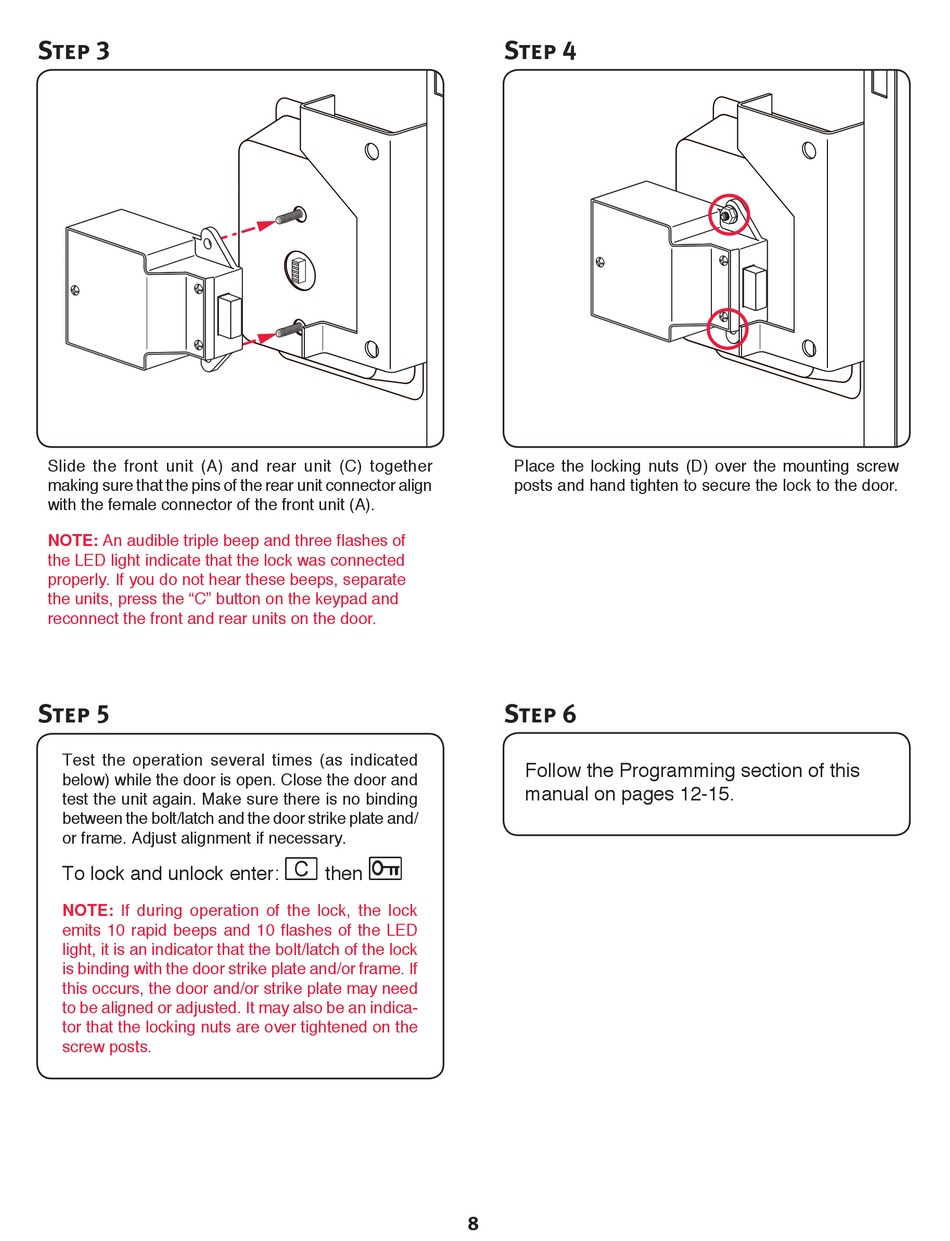

Step 3
Slide the front unit (A) and rear unit (C) together
making sure that the pins of the rear unit connector align
with the female connector of the front unit (A).
NOTE: An audible triple beep and three flashes of
the LED light indicate that the lock was connected
properly. If you do not hear these beeps, separate
the units, press the "C" button on the keypad and
reconnect the front and rear units on the door.
Step 5
Test the operation several times (as indicated
below) while the door is open. Close the door and
test the unit again. Make sure there is no binding
between the bolt/latch and the door strike plate and/
or frame. Adjust alignment if necessary.
To lock and unlock enter:
NOTE: If during operation of the lock, the lock
emits 10 rapid beeps and 10 flashes of the LED
light, it is an indicator that the bolt/latch of the lock
is binding with the door strike plate and/or frame. If
this occurs, the door and/or strike plate may need
to be aligned or adjusted. It may also be an indica-
tor that the locking nuts are over tightened on the
screw posts.
= `
then
Step 4
Place the locking nuts (D) over the mounting screw
posts and hand tighten to secure the lock to the door.
Step 6
Follow the Programming section of this
manual on pages 12-15.
8
