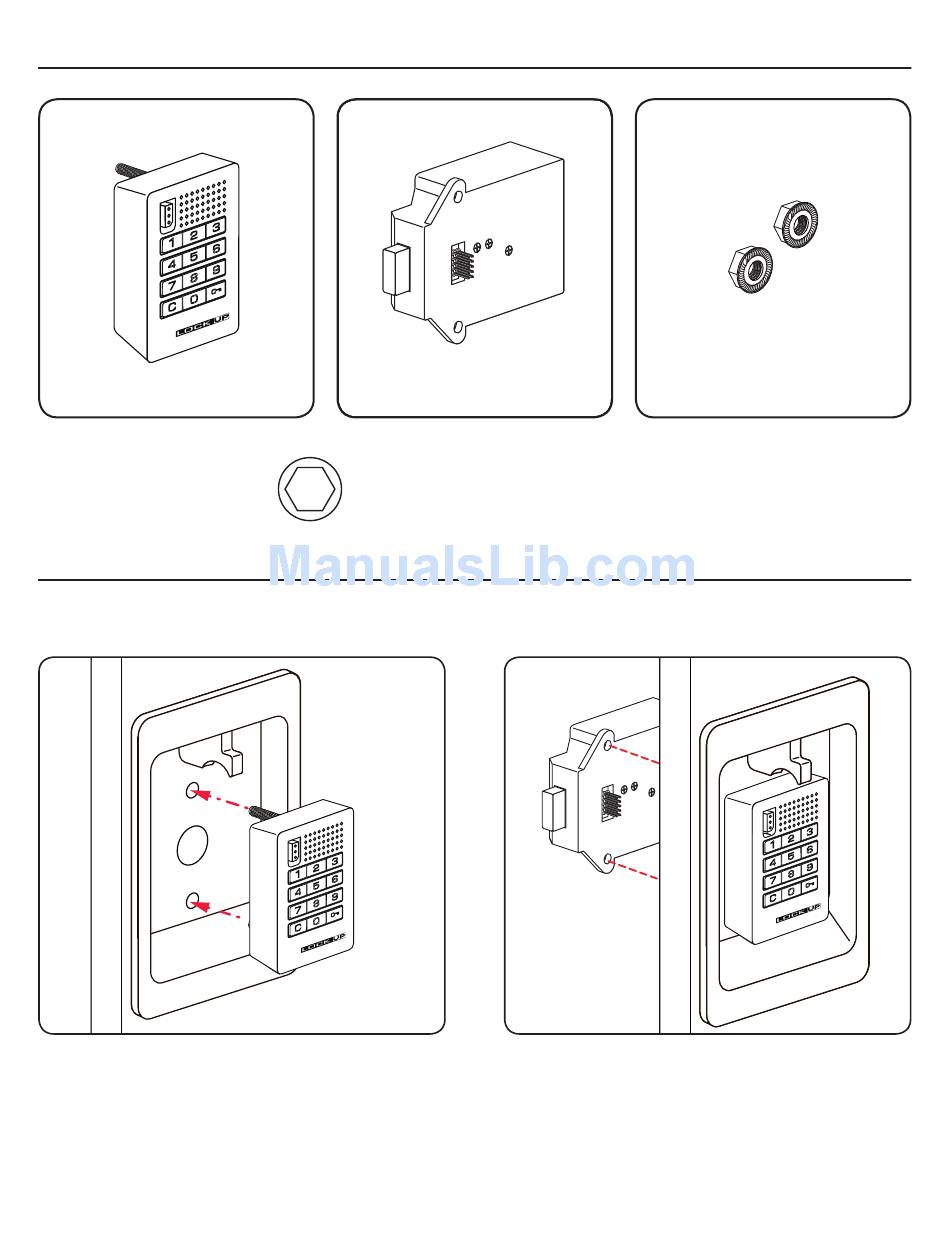

LockUP Employee Lock User Manual page 10

Recessed Cup Metal Door Installation Parts
A
1-Front Unit
Required Tools
Recessed Cup Metal Door Installation Steps
Note: Prior to installation the door must be clear of any obstructions. See page 9 for door prep.
Step 1
Place the mounting screw posts of the front unit (A)
through the lock mounting holes on the front of the
door.
B
1-Rear Unit
3/8" Socket
(deep socket required)
Step 2
While holding the front unit (A) against the front of the
door, place the rear unit (B) against the rear face of the
door. Align the mounting holes with the mounting screw
posts from the front unit (A).
NOTE: Do not touch the rear unit connector pins
(male connector) against any metal or other conductive
surfaces. This may short the batteries and cause
damage to the lock.
7
C
2-Locking Nuts
