AG-268 SIP Gateway User Manual
2.2 WAN
2.2.1

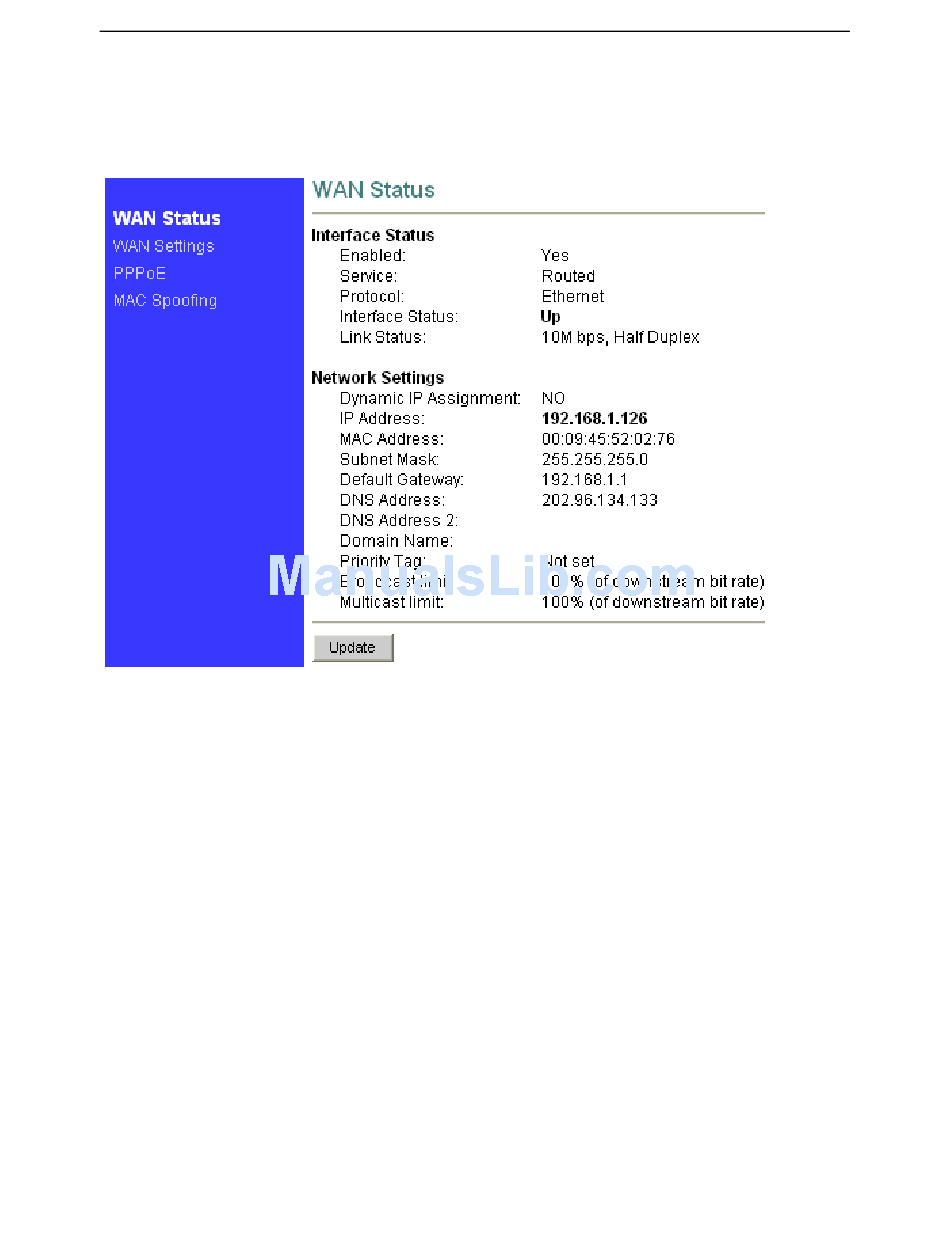

WAN status

1. Enable:
2. Service:
3. Protocol:
4. Interface status: UP or Down
5. Link Status:
6. Dynamic IP
7. IP address:
8. MAC Address:
9. Subnet Mask:
10. Default Gateway:
11. DNS Address:
12. Priority Tag:
outgoing packets.
13. Broadcast
14. Multicast limit:
Yes indicates Wan port is ready for use
indicate use status of Wan port，"Route" or "Bridge"
Ethernet
interface link mode
Assignment: IP type
WAN port IP address
WAN port MAC address
WAN port Subnet Mask
Upper Gateway IP
your local dynamic name server IP
Priority Tag value encoded in the Ethernet header in
limit:
