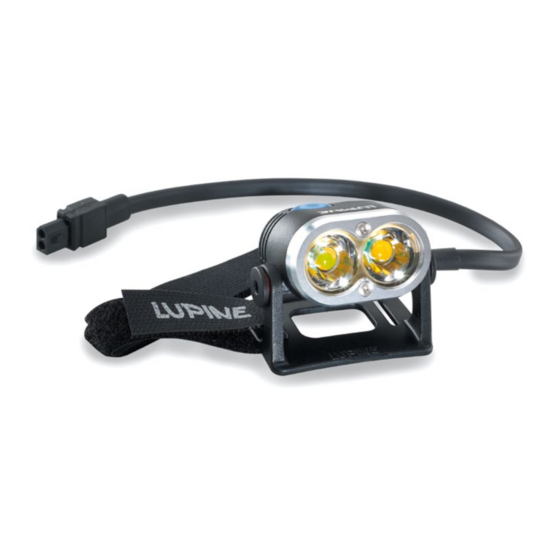

Piko Head Unit
Piko 3
Piko X
Piko U3
OWNERS MANUAL
Piko

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Piko Head Unit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lupine Piko Head Unit

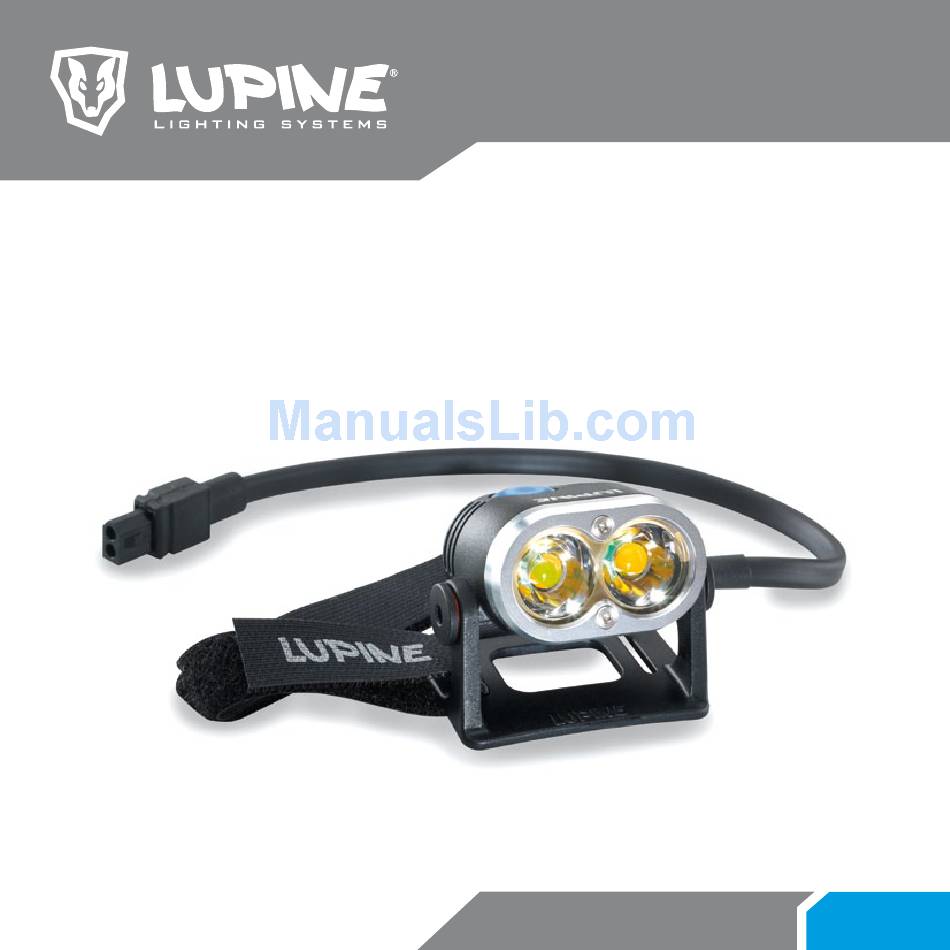

  • Page 1 Piko Head Unit Piko 3 Piko X Piko U3 OWNERS MANUAL Piko...
  • Page 2: Read This Manual Before Using

    Mounting Read this manual before using General: Piko 3 Helmet Light: The light and charger are ready for use when delivered. All you have to do is charge the battery No tools are required for mounting this lamp. The before using the product. ...
  • Page 3 Mounting Helmet mounting the battery: Piko U3 for uvex helmets: With the provided extension, the battery may For further information about available be carried in your jersey or backpack. The flexible uvex helmet models visit www.uvex.de velcro strap also provides the possibility to mount the battery directly on the helmet.
  • Page 4 Note: Basically, you may use the Piko lamp with all Lupine batteries irrespective of the type (NiMH or Li-Ion). Usually, the battery life of old batteries is still accep- table, extraordinary dimming abilities provide good light even in case of a very weak battery.
  • Page 5: Operation

    Operation Initialization & voltage display: Switching on: After connecting the lamp to the battery, the software runs a selftest; the The first press of the button switches on the light with lamp itself as well as the red and blue LEDs in the switch light up once maximum power.
  • Page 6: Battery Warning Indicator

    Operation Battery warning indicator: Note: If the lamp is only used with 0.5 W and 1 W, reserve power is not available. The red LED indicates the state of the battery. If the battery voltage de- creases below a certain value, first the red LED is illuminated (the lamp itself also flashes once) and additionally, shortly before the capacity is Warning: Do not switch on the light when the battery is...
  • Page 7 Programming „Power Control System“ provides the possibility for individual programming. The knowledge of whether „red" means that only for example 50 % or 25 % of the By default, the Piko is set so that usually no changes are necessary. capacity remain can only be gained from the experience of using the light.
  • Page 8: Programming Scheme

    Programming scheme Charger/ Wiesel Note: The numbers provided below assume that the lamp is switched on. When starting with the lamp switched off, the lamp will flash once after approx. 2 seconds - lamp on/off. Components: Wiesel charger and three plug adapters Light levels (for continental Europe, UK, and the USA).
  • Page 9: Product Care And Storage

    Opening the Screw Top:  Unsuitable battery.  Use original Lupine battery. Important! Because of the delicate sealings, we do not recommend to open the lamp. A leakage in consequence of opening the light is excluded from warranty! 16 Piko...
  • Page 10: Technical Data

    Miscellaneous Technical data The laws governing the allowable application domain for this lighting system may vary from one Weight: country to another. We recommend that you inform yourself about the relevant laws in this domain Piko lamp: 55 g in your country. Piko 3 with battery: 180 g Piko X with battery:...
  • Page 11 Lupine Lighting Systems GmbH Winnberger Weg 11 92318 Neumarkt Germany Phone: +49 (0) 91 81 - 50 94 90 Fax: +49 (0) 91 81 - 50 94 915 E-mail: info @lupine.de...
