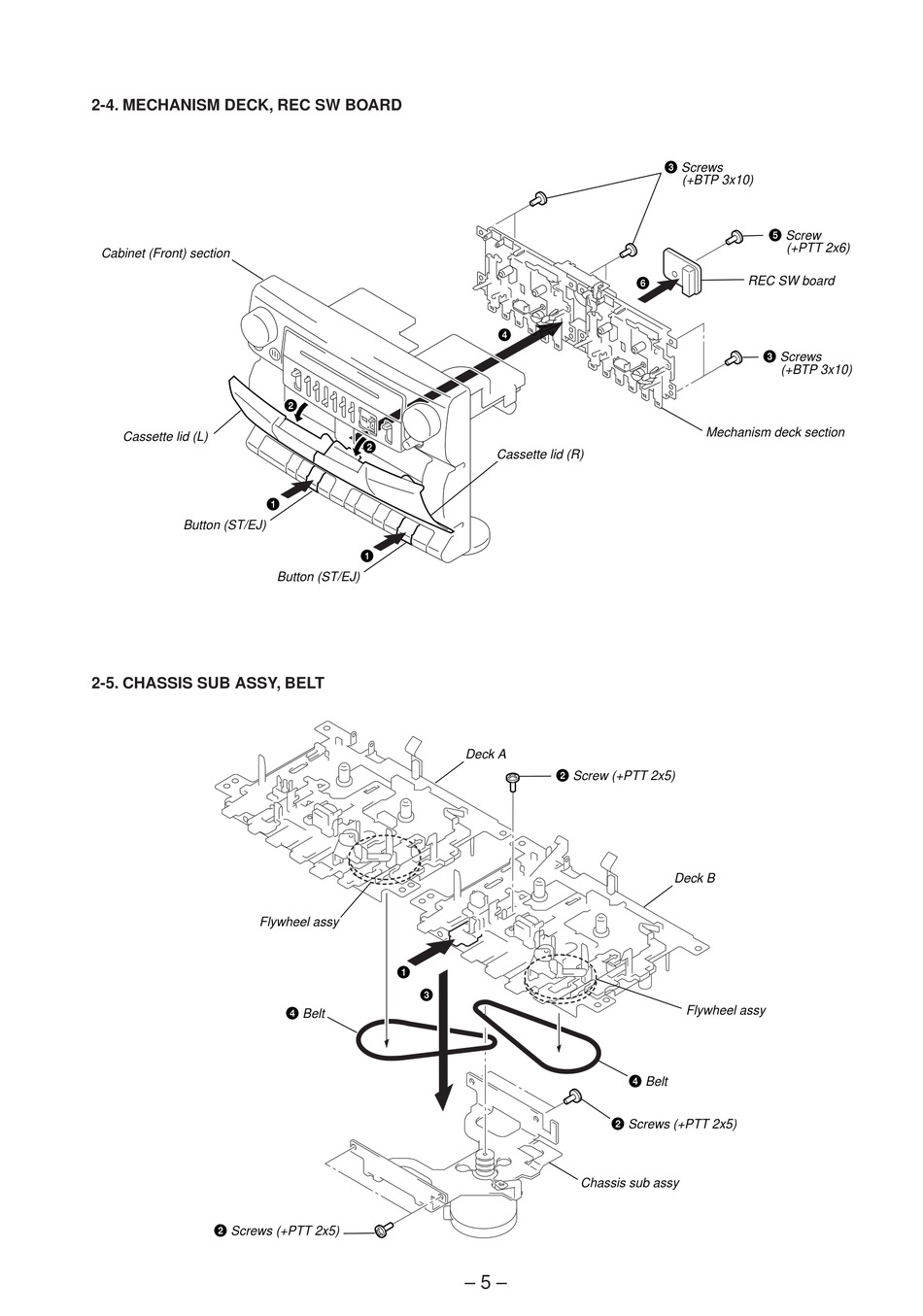

2-4. MECHANISM DECK, REC SW BOARD
3 Screws
(+BTP 3x10)
5 Screw
(+PTT 2x6)
Cabinet (Front) section
REC SW board
6
4
3 Screws
(+BTP 3x10)
2
Mechanism deck section
Cassette lid (L)
2
Cassette lid (R)
1
Button (ST/EJ)
1
Button (ST/EJ)
2-5. CHASSIS SUB ASSY, BELT
Deck A
2 Screw (+PTT 2x5)
Deck B
Flywheel assy
1
3
Flywheel assy
4 Belt
4 Belt
2 Screws (+PTT 2x5)
Chassis sub assy
2 Screws (+PTT 2x5)
