r
The equipment can be removed using the following procedure.

Cabinet (Front) section

Set

Cabinet (Rear) section

Note : Follow the disassembly procedure in the numerical order given.
2-1. CABINET (FRONT) SECTION, CABINET (REAR) SECTION
2-2. BATT (–) BOARD, BATT (+) BOARD
Cabinet (Rear) section
BATT (+) board
4
1 Screws (+BTP 3x10)

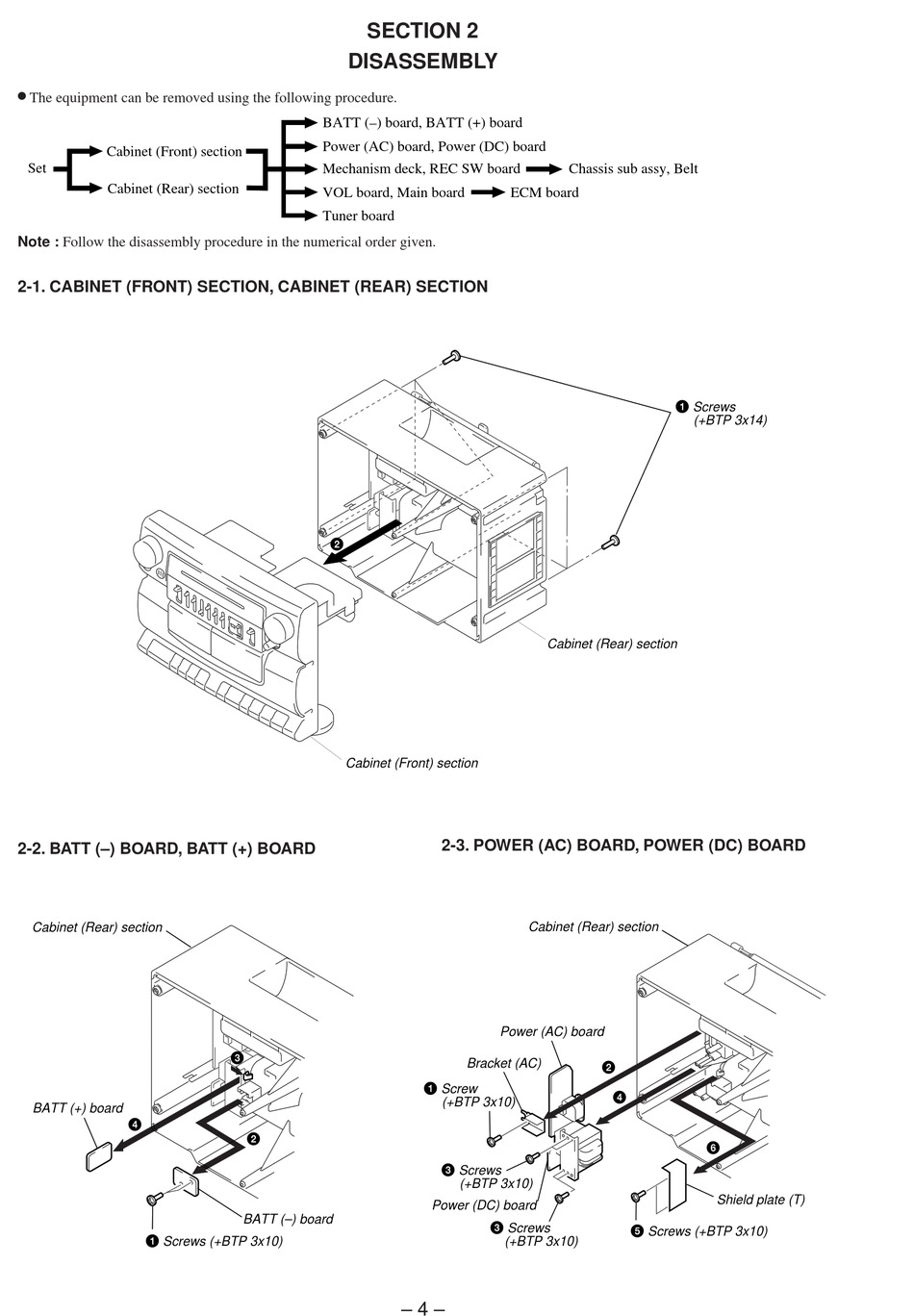

SECTION 2

DISASSEMBLY

BATT (–) board, BATT (+) board

Power (AC) board, Power (DC) board

Mechanism deck, REC SW board
VOL board, Main board
Tuner board
2
Cabinet (Front) section
3
2
BATT (–) board
– 4 –
Chassis sub assy, Belt
ECM board
Cabinet (Rear) section
2-3. POWER (AC) BOARD, POWER (DC) BOARD
Cabinet (Rear) section
Power (AC) board
Bracket (AC)
1 Screw
(+BTP 3x10)
3 Screws
(+BTP 3x10)
Power (DC) board
3 Screws
(+BTP 3x10)
1 Screws
(+BTP 3x14)
2
4
6
Shield plate (T)
5 Screws (+BTP 3x10)
