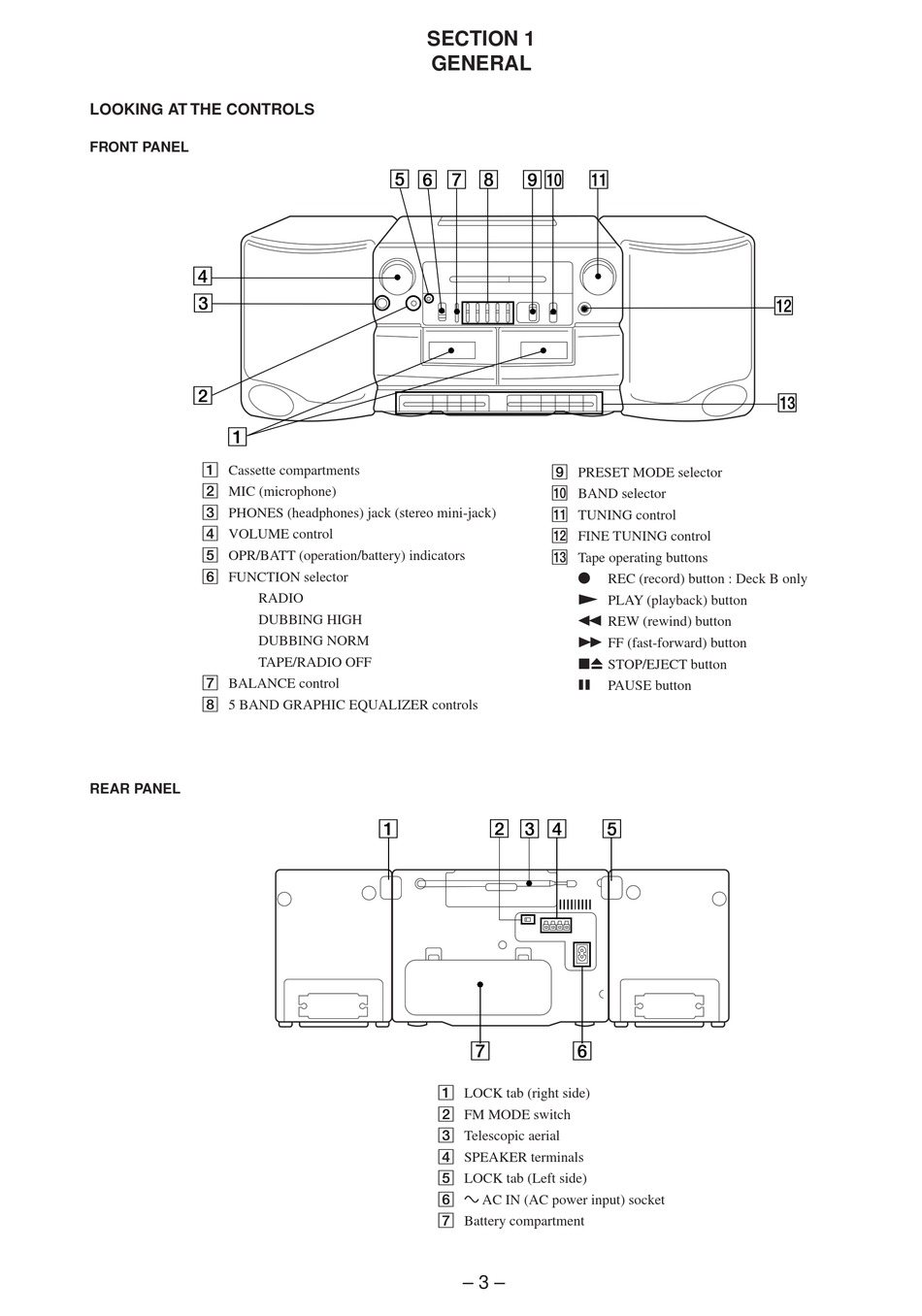

LOOKING AT THE CONTROLS

FRONT PANEL
4
3
2
1
1 Cassette compartments
2 MIC (microphone)
3 PHONES (headphones) jack (stereo mini-jack)
4 VOLUME control
5 OPR/BATT (operation/battery) indicators
6 FUNCTION selector
RADIO
DUBBING HIGH
DUBBING NORM
TAPE/RADIO OFF
7 BALANCE control
8 5 BAND GRAPHIC EQUALIZER controls
REAR PANEL
SECTION 1

GENERAL

5 6 7
8 9!º
1 2 3 4
7
1 LOCK tab (right side)
2 FM MODE switch
3 Telescopic aerial
4 SPEAKER terminals
5 LOCK tab (Left side)
6 ⁄ AC IN (AC power input) socket
7 Battery compartment
– 3 –
!¡
9 PRESET MODE selector
!º BAND selector
!¡ TUNING control
!™ FINE TUNING control
!£ Tape operating buttons
r
REC (record) button : Deck B only
( PLAY (playback) button
0 REW (rewind) button
) FF (fast-forward) button
p6 STOP/EJECT button
P
PAUSE button
5
6
!™
!£
