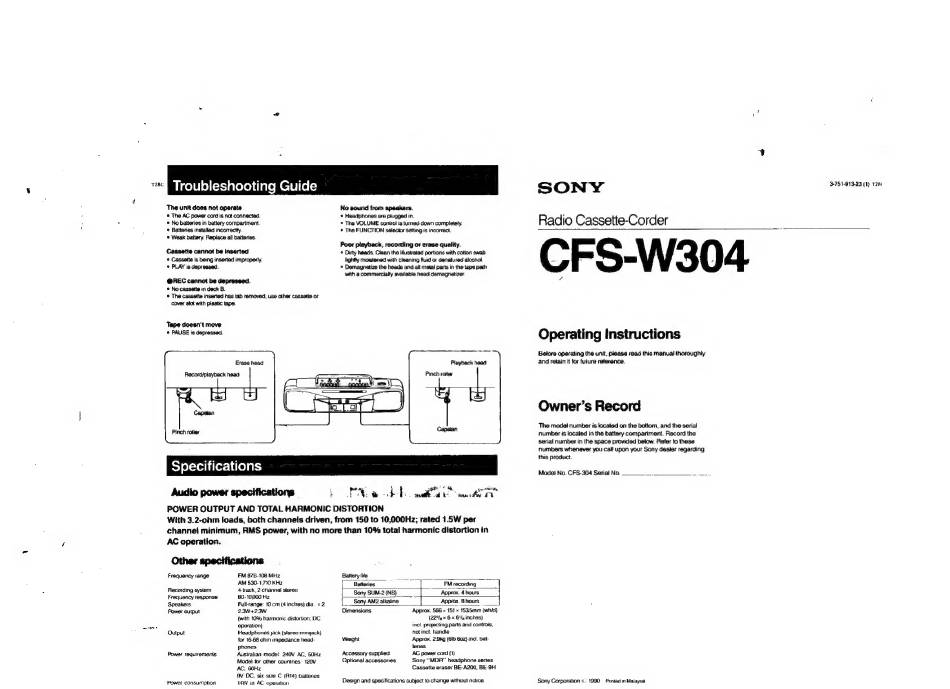

Sony CFS-W304 Operating Instructions

72a
The unit does not operate
+ The AC power cord is not connected.
+ No batteries in battery compartment
+ Batteries installed incorrectly.
'* Weak battery. Replace all batteries.
Cassette cannot be inserted
* Cassette is being insertad improperly.
* PLAY is depressed.
@REC cannot be depressed.
* No cassette in deck B.
« The cassette inserted has tab removed, use other cassette of
cover slot with plastic tape.
Tape doesn't move
* PAUSE is depressed.
No sound from speakers.
'+ Headphones are plugged in.
* The VOLUME control is tuned down completely.
¢ The FUNCTION selector setting is incorrect
Poor playback, recording o+ erase quality.
* Dirty heads. Ctean the illustrated portions with cotton swab
lightly moistened with cleaning fluid or denatured alcohol
© Demagnetize the heads and all metal parts in the tape path
with a commercially available head demagnatizer
Specifications
Audio power specifications
A... nin,
eae 2
ae ee
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 3.2-ohm loads, both channels driven, from 150 to 10,000Hz; rated 1.5W per
channel minimum, RMS power, with no more than 10% total harmonic distortion in
AC operation.
Other specifications
Frequency range FM 876-108 MHz
AM 530-1710 KHz
Recording system track, 2-channel stareo
Frequency response B0-10,000 Hz
Speakers Fullrange: 10 cm (4 inches} dia. x 2
Power output 23W+23W
(with 10% harmonic distartian; DC
operation)
Output Headphones jack {stereo mingack)
tor 16-68 ohm impedance head-
phones.
Power requirements Australian model: 240V AC, 50Hz
Modal for other countries: 120¥
AC, 60Hz
9v DC. six size C (A14) batenes
Power consumption 14W in AC operation
Battery | {ite ies fo A
Batteries FM recording ]
Sony SUM-2(NS) Approx. 4 hours
'Sony AM2 alkaline Approx. Bhours |
Dimensions Approx. 565 = 151 « 153.5mm (what)
(22% x 6 x 6% inches)
incl. projecting parts and controls,
not incl. handle
Weight Approx. 2.9kg (6b 602} incl. bat-
tenes
Accessory supplied AG power cord (1)
Optional accessories Sony "MDA" headphone series
Cassette eraser BE-A200, BE-SH
Design and specifications subject 10 change without notice.
$-751-919.23(1) T260
SONY
Radio Cassette-Corder
CFS-W304 _ _
Operating Instructions
Betore operating the unit, please read this manual thoroughly
and retain it for future reference.
Owner's Record
The model number is located on the bottom, and the serial
number is located in the battery compartment. Record the
serial number in the space provided betow. Refer to these
numbers whenever you call upon your Sony dealer regarding
this product.
Modet No. CFS-304 Serial No.
Sony Corporanon 1990 Prinied io Malaysia
