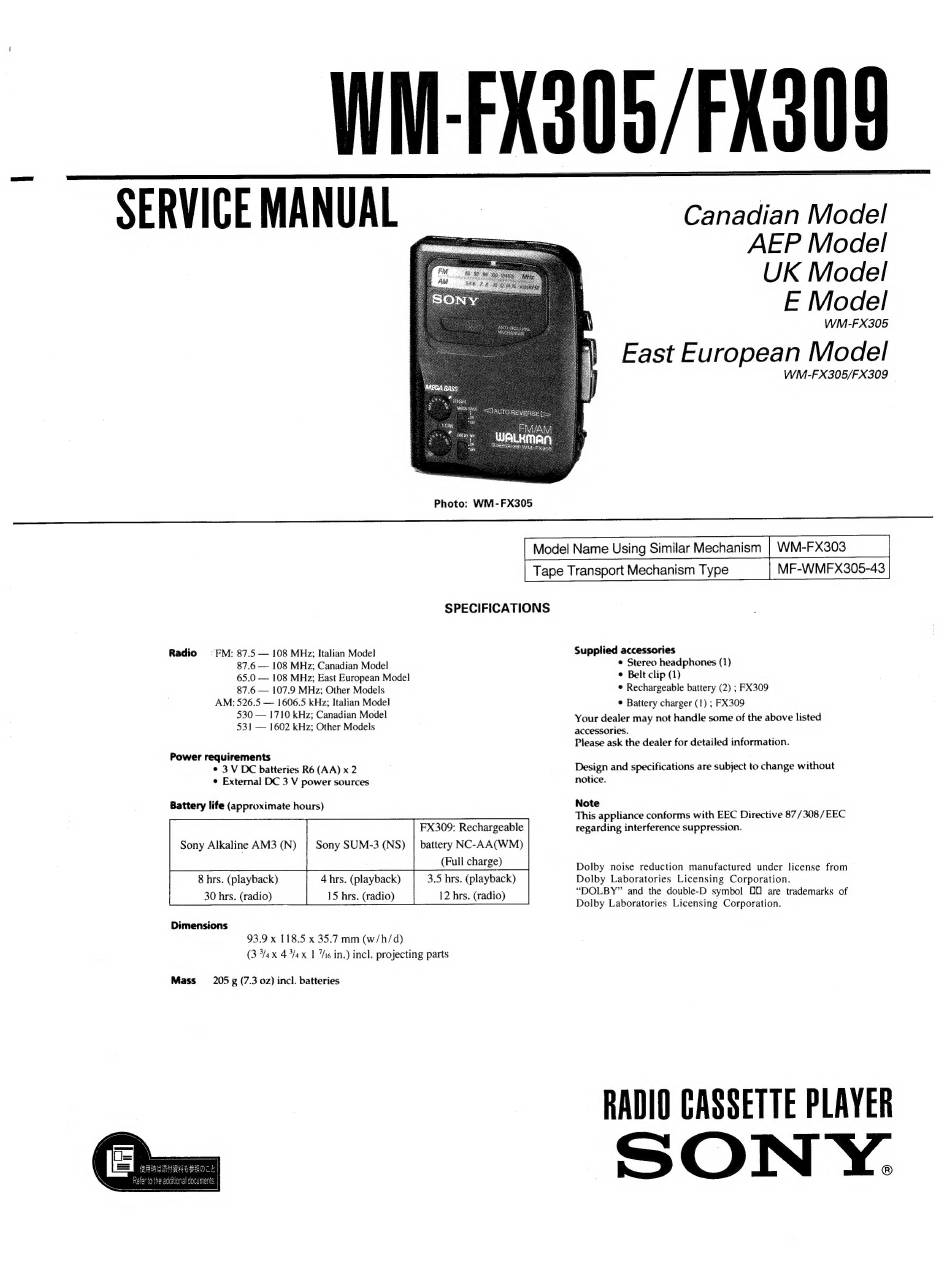

Sony WM-FX305 Service Manual

RRBIAYRASSROCE |
Refer to the additiona! documents.
SERVICE MANUAL
Photo: WM-FX305
Radio — FM: 87.5 — 108 MHz; Italian Model
87.6 — 108 MHz; Canadian Model
65.0 — 108 MHz; East European Model
87.6 — 107.9 MHz; Other Models
AM: 526.5 — 1606.5 kHz; Italian Model
530 — 1710 kHz; Canadian Model
531 — 1602 kHz; Other Models
Power requirements
© 3 V DC batteries R6 (AA) x 2
¢ External DC 3 V power sources
Battery life (approximate hours)
FX309: Rechargeable
battery NC-AA(WM)
Sony Alkaline AM3 (N) | Sony SUM-3 (NS)
(Full charge)
8 hrs. (playback) 4 hrs. (playback) 3.5 hrs. (playback)
30 hrs. (radio) 15 hrs. (radio) 12 hrs. (radio)
Dimensions
93.9 x 118.5 x 35.7 mm (w/h/d)
(3 "/4x 4 %/4x 1 "/ in.) incl. projecting parts
Mass 205 g (7.3 02) incl. batteries
Model Name Using Similar Mechanism
Tape Transport Mechanism Type MF-WMFX305-43
SPECIFICATIONS
Canadian Model!
AEP Model
UK Model
E Model
WM-FX305
East European Model
WM-FX305/FX309
WM-FX303
Supplied accessories
e Stereo headphones (1)
© Belt clip (1)
¢ Rechargeable battery (2) ; FX309
© Battery charger (1) ; FX309
Your dealer may not handle some of the above listed
accessories.
Please ask the dealer for detailed information.
Design and specifications are subject to change without
notice.
Note
This appliance conforms with EEC Directive 87/308/EEC
regarding interference suppression.
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol OO are trademarks of
Dolby Laboratories Licensing Corporation.
RADIO CASSETTE PLAYER
SONY.
