Stereo cassette deck

Advertisement

Quick Links

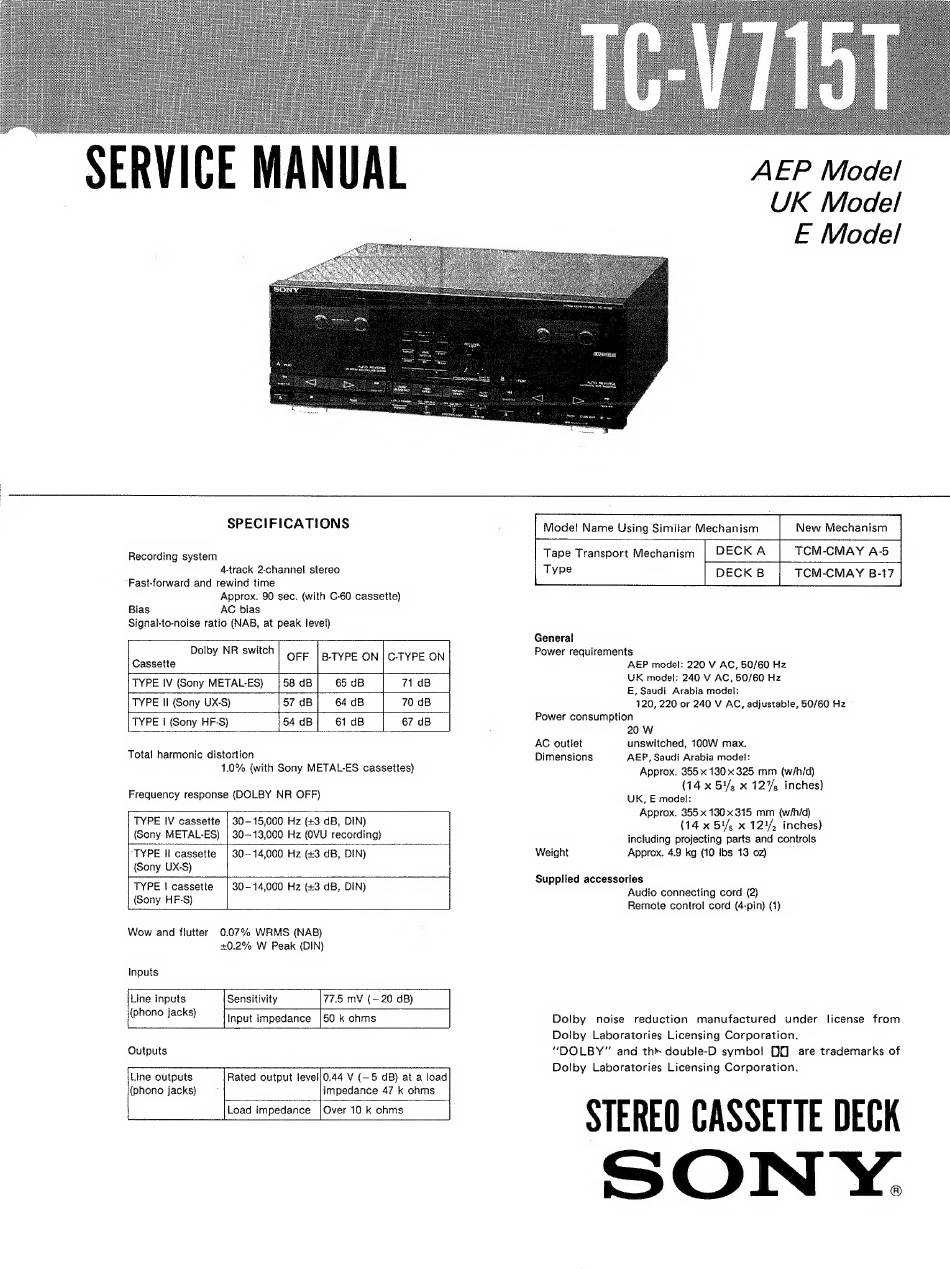

SERVICE MANUAL
SPECIFICATIONS
Recording system
4-track 2-channel stereo
'Fast-forward and rewind time
Approx. 90 sec. (with C-60 cassette)
Bias
AC bias
Signal-to-noise ratio (NAB, at peak level)
Dolby NR switch
OFF
|В-ТҮРЕ ОМ | C TYPE ОМ
Cassette
[TYPE | (Sony HF-S)
Total harmonic distortion
1.0% (with Sony METAL-ES cassettes)
Frequency response (DOLBY NR OFF)
TYPE IV cassette | 30—15,000 Hz (+3 dB, DIN)
(Sony METAL-ES) | 30-13,000 Hz (OVU recording)
'TYPE il cassette
| 30—14,000 Hz (+3 dB, DIN)
(Sony UX-S)
TYPE i cassette
(Sony HF-S)
30-14,000 Hz (+3 dB, DIN)
Wow and flutter
0.07% WRMS (NAB)
+0.2% W Peak (DIN)
Inputs
Line inputs
| Sensitivity
(phono jacks)
77.5 mV (-20 dB)
{input impedance
|50 k ohms
Outputs
Line outputs
Rated output level|0.44 V (—5 dB) at a load
(phono jacks)
`
impedance 47 k ohms
[Load impedance
|Over 10 k ohms
|
AEP Model
UK Model
E Model
Model Name Using Similar Mechanism
New Mechanism
TCM-CMAY A-5
Tape Transport Mechanism
Type
DECK B
TCM-CMAY B-17
General
Power requirements
AEP model: 220 V AC, 50/60 Hz
UK model: 240 V AC, 50/60 Hz
E, Saudi
Arabia model:
120, 220 or 240 V AC, adjustable, 50/60 Hz
Power consumption
20W
AC outiet
unswitched, 100W max.
Dimensions
AEP, Saudi Arabia model:
Approx. 355 х 130 x 325 mm (w/hi/d)
(14 x 5Y; х 127% inches)
UK, E model:
Approx. 355 х 130 х 315 mm (w/h/d)
(14 x 57; x 127, inches)
including projecting parts and controls
Weight
Approx. 4.9 kg (10 105 13 oz)
|
Supplied accessories
Audio connecting cord (2)
Remote control cord (4-pin) (1)
Dolby
noise
reduction
manufactured
under
license
from
Dolby
Laboratories Licensing Corporation.
"DOLBY"
and th» double-D symbol
ПП
are trademarks of
Dolby Laboratories Licensing Corporation.
STEREO CASSETTE DECK
SONY.
