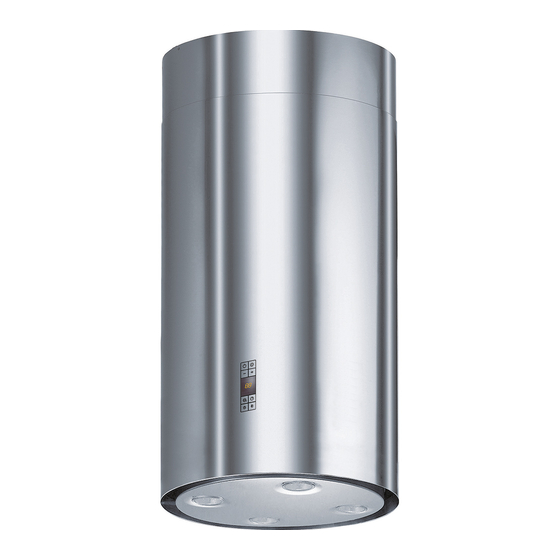

Franke FTU 3807 I XS 77H Tube Island Handbook

Hide thumbs Also See for FTU 3807 I XS 77H Tube Island:

Advertisement

Quick Links

Download this manual See also: Use and Installation Instructions

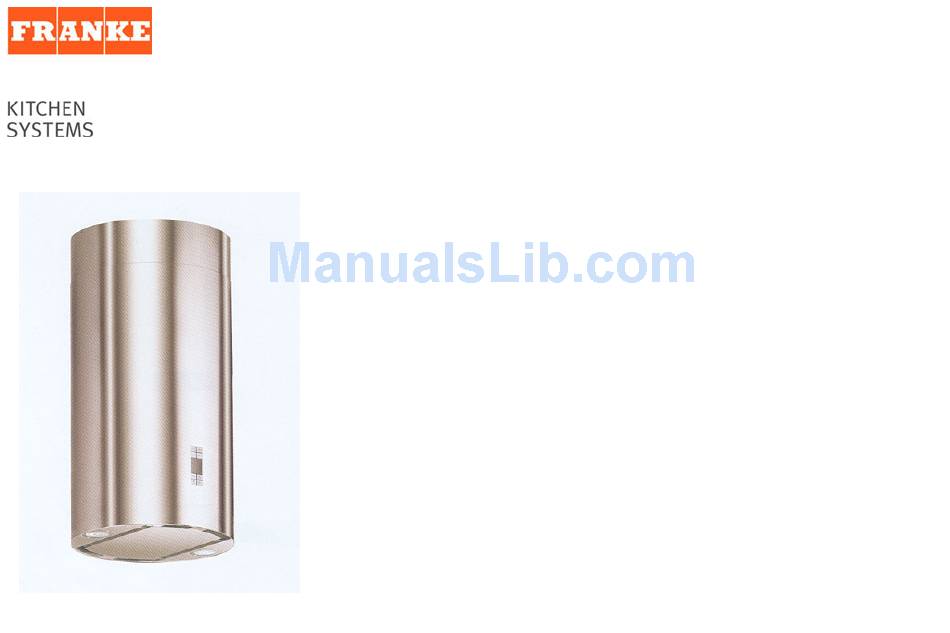

HANDBOOK HOOD FTU 3807 I XS 77H 9925289 110.0018.185
UPDATED JANUARY 2010
4 SPEED + INTENSIVE
ELECTRONIC PUSH- BUTTONS 4 SPEED + INTENSIVE+ DELAY TIMER+ TO SET UP THE MOTOR
TO A SUCTION SPEED AT 100 M3/H LASTING 10 MINUTES EVERY HOUR+ TURNS LIGHT ON AND
OFF AT REDUCED INTENSITY.
M3/H800 -
DBA 67 -
W 370 -
2 HALOGEN LAMPS X 20 W = TOTAL POWER 40 W

Advertisement

loading
Need help?

Need help?

Do you have a question about the FTU 3807 I XS 77H Tube Island and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franke FTU 3807 I XS 77H Tube Island

Summary of Contents for Franke FTU 3807 I XS 77H Tube Island

  • Page 1 HANDBOOK HOOD FTU 3807 I XS 77H 9925289 110.0018.185 UPDATED JANUARY 2010 4 SPEED + INTENSIVE ELECTRONIC PUSH- BUTTONS 4 SPEED + INTENSIVE+ DELAY TIMER+ TO SET UP THE MOTOR TO A SUCTION SPEED AT 100 M3/H LASTING 10 MINUTES EVERY HOUR+ TURNS LIGHT ON AND OFF AT REDUCED INTENSITY.
  • Page 4 Key Function Display Switches the extractor motor on and off at the Indicates the selected speed. latest selected speed Decreases the suction speed. Increases the suction speed. By pressing this key it is possible to activate the HI appears. The spot down on the right side flashes intensive speed from any previously selected once a second.

  • Page 5: Metal Grease Filters

    Metal grease filters Filters can be washed in the dish machine. They need to be washed when FF-sign appears on the display or in any Alarm reset case every 2 months, or even more frequently in case of particularly intensive use of the hood. •...
  • Page 6 LIGHTING 20 W halogen light. • Remove the 2 screws fixing the Lighting support, and pull it out of from the Hood. • Extract the lamp from the Support. • Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
  • Page 7 PREPARATION OF THE FRAME FOR THE HOOD IN RE-CYCLING VERSION In case the hood is used in recycling version it is necessary to prepare the frame with all the necessary connection pieces. In order to make the installation easier it is necessary to lengthen the frame: •...
  • Page 8 • Lift the frame up, making sure that the index over the frame plate is turned forwards. • Fit the frame slots onto the two screws inserted in the ceiling as above, and turn until reaching the centre of the adjustment slot. •...
  • Page 9 Installing of the chimney and fixing of the hood When the hood is installed in recycling version the chimney has to be positioned with the slots upwards. When the hood is installed in ducting version it has to be positioned in the opposite way. •...
  • Page 10 Position Spare part fun number description quantity date in code 1960200 133.0016.959 SPIGOT 120-150 9925289 1961142 133.0041.779 TOP FILTERING BENT CHIMNEY X 9925289 1961143 133.0036.538 LOWER CHIMNEY X D370 F770 9925289 1960325 133.0017.598 SELF-SUPPORTING FILTER 9925289 1960084 133.0017.669 BRILLIANT LINE SPOT LIGHT PRO 20W 9925289 1960905 133.0021.010...
  • Page 11 1960080 133.0017.670 FLAT CABLE F. CONTROL (10) 9925289 1960020 133.0016.849 CAPACITOR 10MF 9925289 1961530 CONDENSER 10MF 400V 9925289 1961274 133.0051.414 SET CONNECTION FOR MOTOR 9925289 1961397 133.0017.045 KIT MOTOR ASSEMBLY PRO 220-240V 9925289 1961278 133.0051.413 SET CONNECTION FIXING 9925289 1960014 133.0016.843 ELECTRIC CABLE 9925289...
