  • Page 1: Customer Support

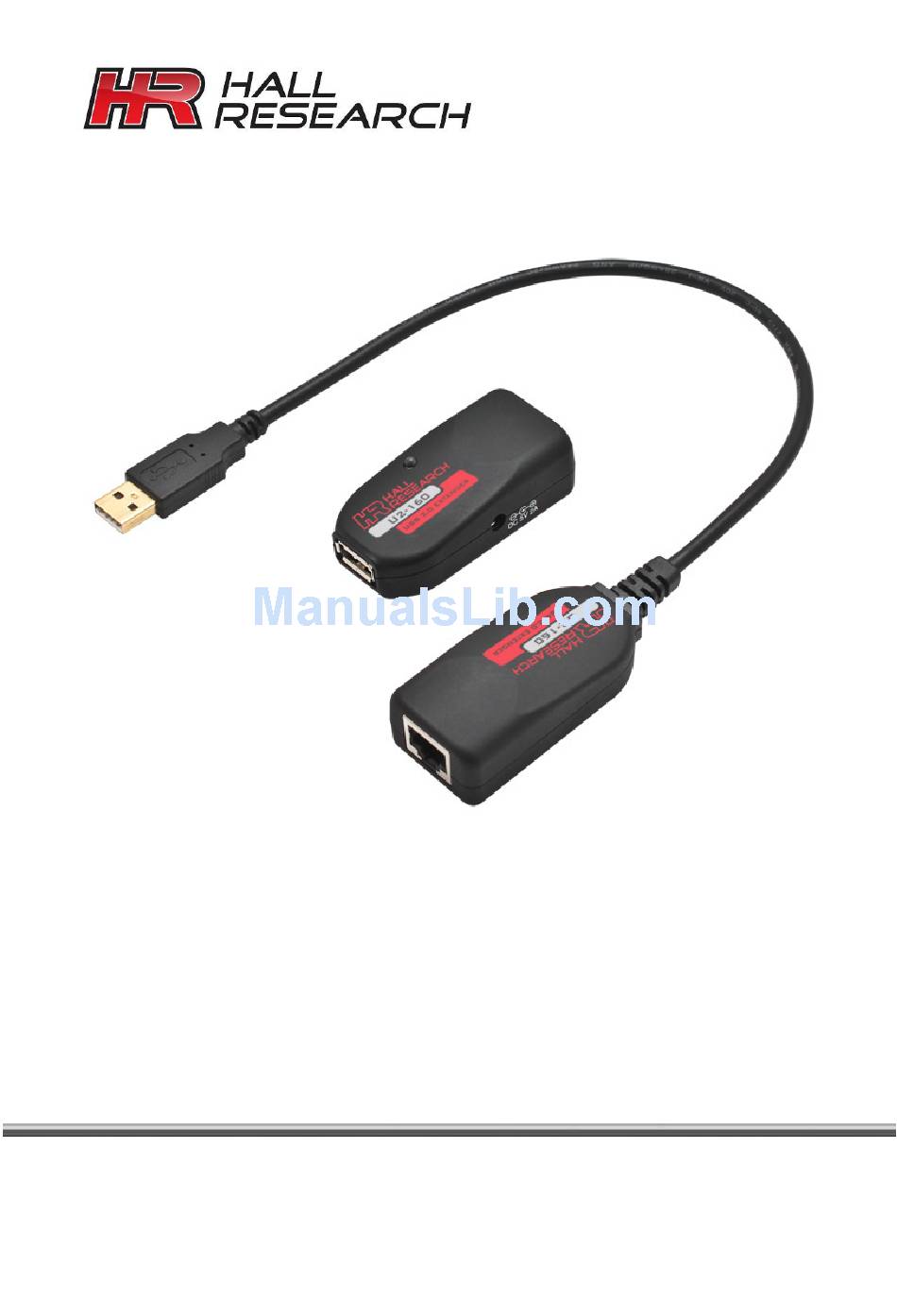

    User’s Manual U2-160 USB 2.0 over UTP Extender USB 2.0 Extender on Single UTP Cable To 165 ft (50 m) UMA1198 Rev. N/C Order toll-free in the U.S. 800-959-6439 CUSTOMER Technical support, Call 714-641-6607 SUPPORT 1163 Warner Ave. Tustin, CA 92780 INFORMATION www.hallresearch.com...

  • Page 3: Troubleshooting

    USB 2.0 Cat6 Extender Contents 1. Introduction 1.1 General 1.2 Features 2. Installation 4. Troubleshooting 5. Specifications FCC STATEMENT This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
  • Page 4 U2-160 1. Introduction 1.1 General Thank you for purchasing the USB 2.0 Extender. This USB 2.0 Extender is capable of sending USB signals across a Cat5/5e/6 cable up to 50 meters at data rate of High Speed (480 Mb/s), Full Speed (12Mb/s) and Low Speed (1.5 Mb/s). Only one power supply is required for operation.
  • Page 5 USB 2.0 Cat6 Extender 2. Installation Before installation please check items in the package. • Local Unit with 1 ft cable attached. • Remote Unit with LED Indicator & DC jack • Universal Power Adapter Input Output Connections • Connect the Local Unit to the Host System (or PC) via the built-in molded USB cable on Local Unit.
  • Page 6 U2-160 4. Troubleshooting If host PC fails to detect USB device, check the LED status on the Remote unit. Make sure LED is illuminated. CAT6 cable is recommended particularly if the length is longer than 100 ft. Reboot the Host PC. Unplug the local unit from the Host PC and connect it to a different USB port if available.
  • Page 7 Using the Multi Country Power Adapter USB 2.0 Cat6 Extender Identify the plug that you need for your country. Insert the required plug into the adapter. The plugs are keyed to avoid Incorrect Insertion. Push the plug firmly towards the housing, twist and allow the latch on the adapter to click into place.
  • Page 8 © Copyright 2013. Hall Research, Inc. All rights reserved.
