HR HBX User Manual

Hdmi extender over hdbaset with ultra-hd av, ir, rs232 control, and ethernet over a single cat6 cable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

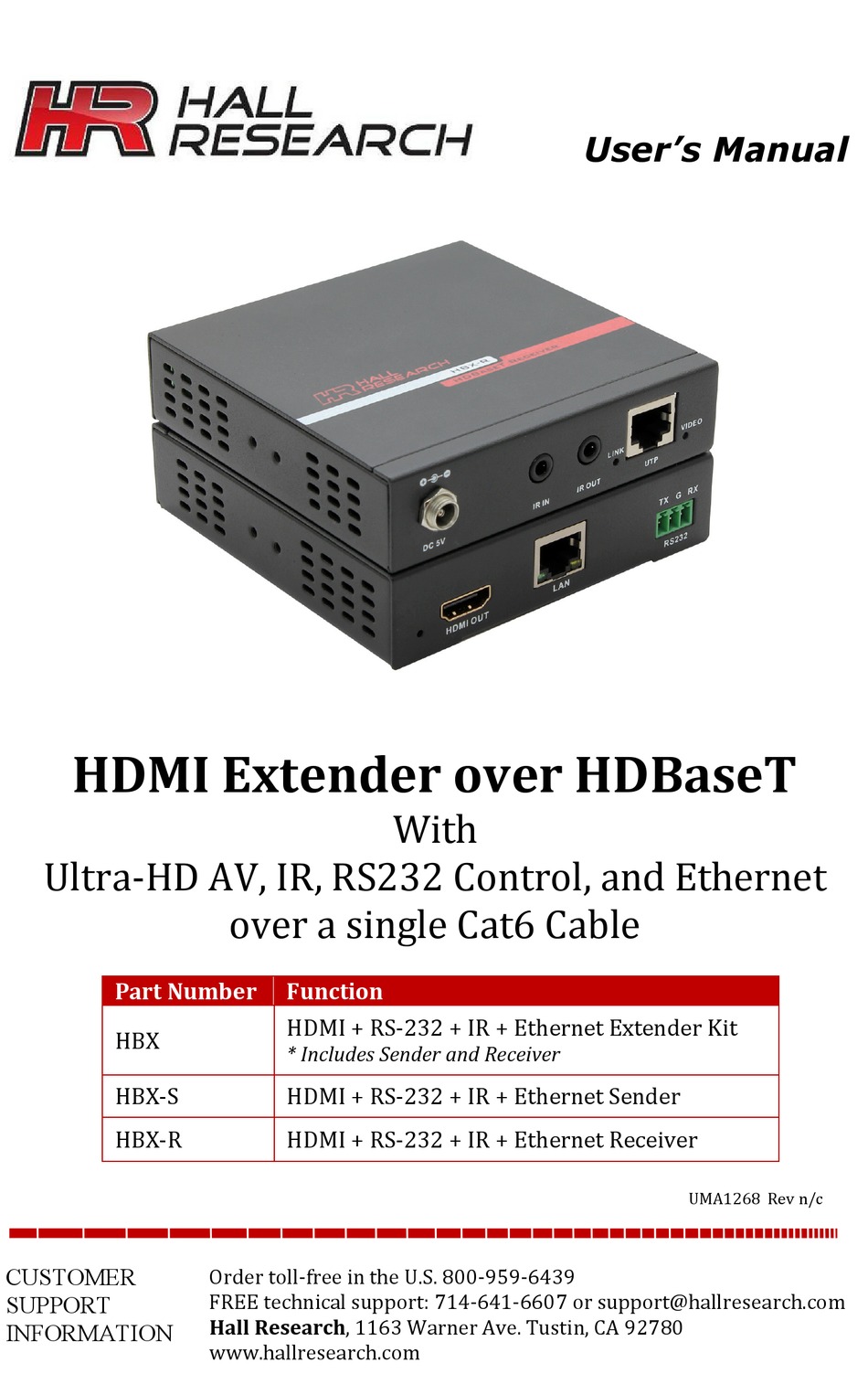

HDMI Extender over HDBaseT
Ultra-HD AV, IR, RS232 Control, and Ethernet
HBX
Part Number
HBX-S
HBX-R
CUSTOMER
SUPPORT
INFORMATION
over a single Cat6 Cable
HDMI + RS-232 + IR + Ethernet Extender Kit
Function
HDMI + RS-232 + IR + Ethernet Sender
* Includes Sender and Receiver
HDMI + RS-232 + IR + Ethernet Receiver
Order toll-free in the U.S. 800-959-6439
FREE technical support: 714-641-6607 or support@hallresearch.com
Hall Research, 1163 Warner Ave. Tustin, CA 92780
www.hallresearch.com
With
User's Manual
UMA1268 Rev n/c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBX and is the answer not in the manual?

Questions and answers

Related Manuals for HR HBX

Summary of Contents for HR HBX

  • Page 1 Cat6 Cable HDMI + RS-232 + IR + Ethernet Extender Kit Part Number Function HBX-S HDMI + RS-232 + IR + Ethernet Sender * Includes Sender and Receiver HBX-R HDMI + RS-232 + IR + Ethernet Receiver UMA1268 Rev n/c Order toll-free in the U.S.

  • Page 2: Table Of Contents

    1.0 Introduction ................. 3 Features ....................3 2.0 Package Contents ................ 4 3.0 Installation ................... 4 4.0 Connector and Indicator Functions ......... 5 HBX-S ....................5 HBX-R ....................6 5.0 Troubleshooting ................6 Contacting Hall Research ..............6 6.0 Specifications ................7 This device complies with Part 15 of the FCC Rules.

  • Page 3: Introduction

    Class A HDBaseT Extender 1.0 Introduction The HBX HDMI extender kit is comprised of a compact Sender (HBX-S) and corresponding Receiver (HBX-R). The kit is used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters (328 feet) using a single Cat6 cable.

  • Page 4: Package Contents

    Please see the note below about cable requirements. • Plug the provided 5v DC power supply to the Sender and Receiver. The HBX-R Receiver does not need power supply when connected to specific • HDBaseT sources such as Hall Research HSM-44-BX Matrix Switch.

  • Page 5: Connector And Indicator Functions

    HBX-S Power input. Please use the supplied 5V, 2A power supply. DC 5V: Connect to a video source to the Sender. The HBX series supports all HDMI resolutions up to UHD 4K30 4:4:4 or 4K60 4:2:0. HDMI IN: Used to extend an existing Ethernet connection between HBX-S and HBX-R.

  • Page 6: Hbx-R

    HBX Series HBX-R Functions are analogous to the HBX-S as described above. The HBX-R can get power using PoC (power over cable 9~24vDC) from compatible Senders such as HSM-44-BX. However, HBX-S does not provide PoC. 5.0 Troubleshooting If you are experiencing problems getting the Extender to work properly, please use the following troubleshooting suggestions.

  • Page 7: Specifications

    Class A HDBaseT Extender 6.0 Specifications Video Standards DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support) Signal type TMDS Resolutions DVI signal VGA (640x480) thru WUXGA (1920x1200) HDTV signal 480i through 1080p Digital Cinema 4K30 4:4:4 or 4K60 4:2:0 (4096x2160) up to 60 m...
