- Page 1 FlameWheel550 User Manual V 1.7 www.dji-innovations.com ©2012 DJI Innovations. All Rights Reserved.
-
Page 2: Disclaimer
This product and manual are copyrighted by DJI Innovations with all rights reserved. No part of this product or manual shall be reproduced in any form without the prior written consent or authorization of DJI Innovations. No patent liability is assumed with respect to the use of the product or information contained herein. -
Page 3: Table Of Contents
Check whether all parts of multi-rotor are in good condition before flight. Do not fly with old or broken parts. Use DJI parts as much as possible. If you have any problem you cannot solve during installation, please contact our customer service. -
Page 4: In Box
10in Propeller Pairs 550P10×4 8in Propeller Pairs 550P08×4 Motors 550MOT ×6 ESC 550ESC ×6 OPTO Screws 550-M3×8 ×24 Screws 550-M2.5×6 ×36 Magic Strap 550MSX ×1, Battery Band 550BBX ×1， Power Line Pair 550PLP ×1 ©2012 DJI Innovations. All Rights Reserved. -
Page 5: Tools Needed
Make sure the rotation direction of each motor is the same as the way in the figure of “ ” shows. If not, switch any of two wire connections of the incorrect motor to change Assembly its rotation direction. ©2012 DJI Innovations. All Rights Reserved. -
Page 6: Assembly

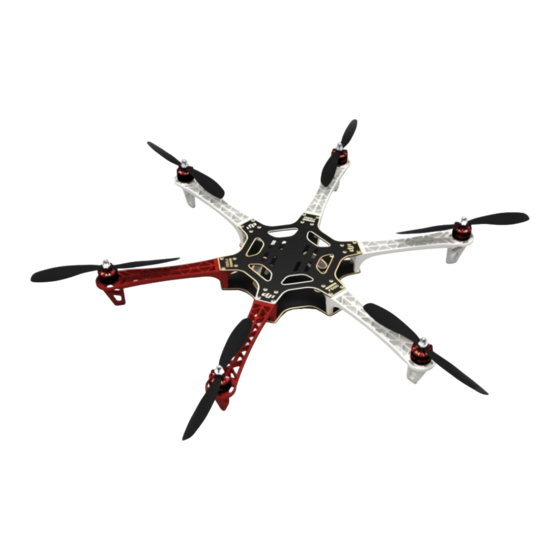

In up figure, arms ①② front of craft, arms ④⑤ are back of craft. See from top, motors on arms ①③⑤ rotate counter-clock wise, use propellers 1045; motors on arms ②④⑥ rotate clock wise, use propellers 1045R. ©2012 DJI Innovations. All Rights Reserved. -
Page 7: Esc Sound Introduction
Throttle stick is not at bottom Input signal abnormal B--------B--------B… Input voltage abnormal BB---BB---BB---BB… Tips: DJI ESCs are specially designed for multi-rotors. When use with DJI autopilot systems, you do not have to setup any parameters or calibrate travel range. Specifications Frame 550mm Diagonal Wheelbase...
