User Manual
Preparing Aircraft and Battery
Exiting Packing Mode
The aircraft enters Packing Mode to enable easy packing during transportation. It is
required to disable Packing Mode when using the aircraft on its first use.

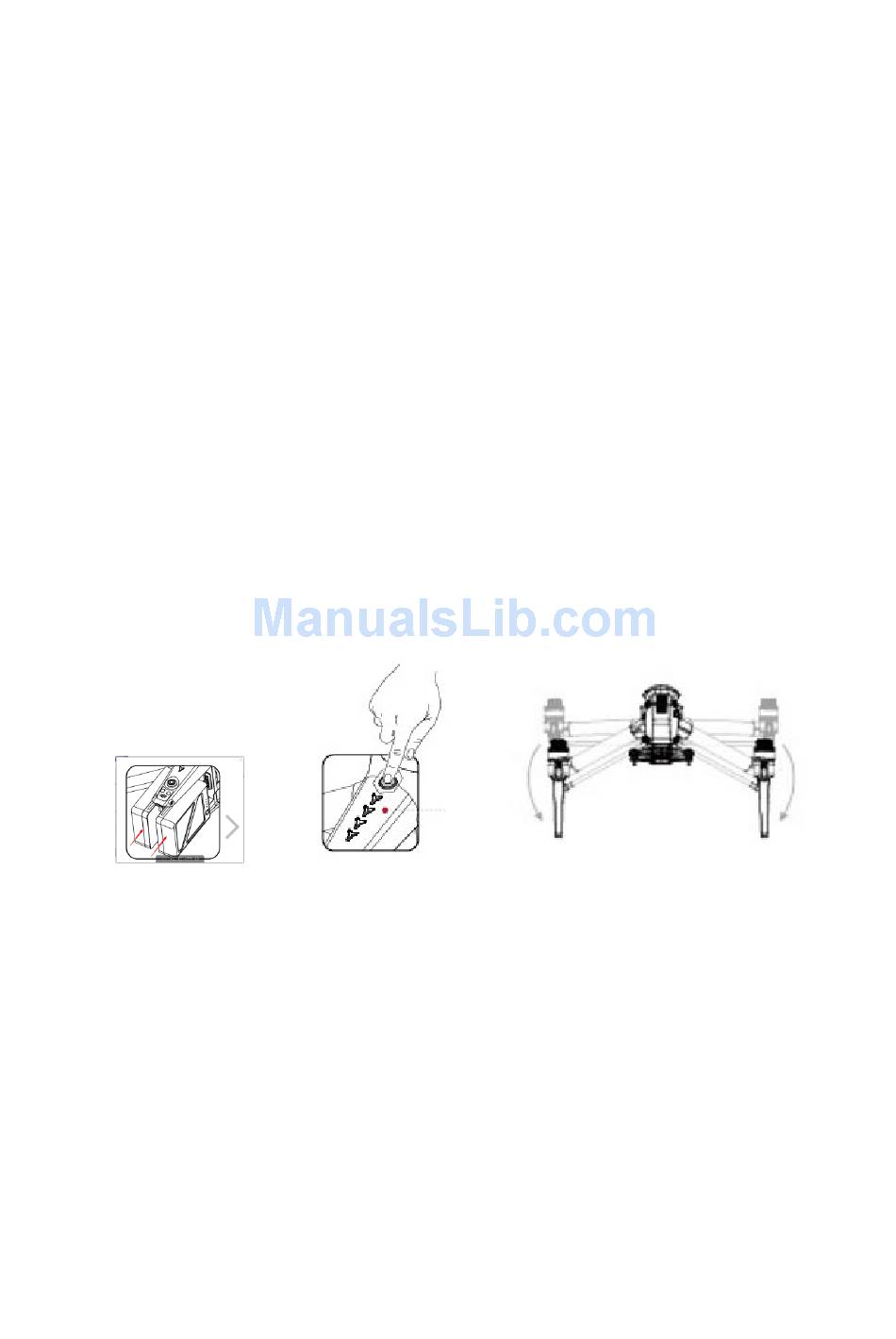

1. Plug in both Intelligent Flight Batteries onto the aircraft. Powering on to exit
Packing Mode.
2. Press and release on the power button on the Intelligent Flight Batteries for up to
5 times to exit Packing Mode.
Installing Camera and Gimbal
Power off the aircraft.
1. Press and hold the mounting button on the gimbal mount.
2. Align the white dot on the camera connector with the red dot on the gimbal mount,
follow by mounting the camera onto the gimbal mount.
3. Rotate the locking ring on the camera so that the red dot on the camera is aligned with
the red dot on the gimbal mount.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T650A and is the answer not in the manual?

Questions and answers

Related Manuals for dji T650A

Summary of Contents for dji T650A

  • Page 1 User Manual Preparing Aircraft and Battery Exiting Packing Mode The aircraft enters Packing Mode to enable easy packing during transportation. It is required to disable Packing Mode when using the aircraft on its first use. 1. Plug in both Intelligent Flight Batteries onto the aircraft. Powering on to exit Packing Mode.

  • Page 2: Using The Remote Controller

    Using the Remote Controller Press and release the power button on the remote controller, wait for 3 seconds then press and hold the power button to power on the remote controller. Aircraft Diagram 1. FPV (First Personal View) Camera 2. Obstacle Sensing System 3.

  • Page 3: Remote Controller Diagram

    [2] Mobile Device Holder Securely mounts your mobile device to the remote controller. [3] Control Stick Switch between Mode 2 and Mode 1 by using the DJI GO app. [4] RTH Button Press and hold the button to initiate Return to Home (RTH).
  • Page 4 [5]Transformation Switch This switch comprises of two options. Toggle this switch to lower or retract the landing gear. [5] Battery Level LEDs Displays the battery level of the remote controller. [7]Status LED Displays the remote controller's system status. [7] Power Button Used to turn the remote controller on and off.
  • Page 5 Reserve for future use. [18] CAN Port Reserve for future use. [19] USB Port Connect to mobile device for running the DJI GO app. [21] C1 Button [22] Power Port Connect to the Charging Hub to charge the battery of the remote controller.

  • Page 6: Turning On/Off

    to turn on your remote controller: 1. The Battery Level LEDs will display the current battery level. 2. Press once, then again and hold to turn on/off Remote Controller. 3. Repeat Step 2 to turn off the remote controller. Battery Turning ON/OFF Slide both the batteries into the battery slots on the rear of the aircraft until it is securely attached on the slots.

  • Page 7: Charging The Batteries

    The charger will stop charging the battery if the battery cell’s temperature is not within the operating range (5°C to 40°C ). Powering on aircraft and remote controller 1. Power on the remote controller before powering the aircraft. 2. Launch the DJI GO app and enter “Camera” view.

  • Page 8: Starting/Stopping The Motors

    , then conduct the same CSC that was used to start the motors, as described above . Release both sticks once motors stop. When the aircraft has landed, push and hold the left stick down. Specifications T650A Model Aircraft Weight (Battery &...
  • Page 9 Diagonal Distance 605mm (Propellers Excluded) Max Ascent Speed 6 m/s ( Sport mode ) Max Descent Speed 4 m/s descending / 7m/s(diving) Max Speed 20 m/s ( Sport mode ) Max Service Ceiling 6000m Above Sea Level Flight Time 25miin Operating -10°C to 40°C Temperature...
  • Page 10 —Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information T650A complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation.
  • Page 11 This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. T650A should be installed and operated with minimum distance 20cm between the radiator& your body. Cet appareil est conforme aux limitesd'exposition de rayonnement RF IC établiespour un environnement non...
  • Page 12 應改善至無干擾時方得繼續使用 前項合法通信，指依電信法規定作業之無線電通信 低 率射頻電機須忍受合法通信或工業 科學及醫療用電波輻射性電機設備之干擾 EU Compliance Statement: SZ DJI TECHNOLOGY CO., LTD. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive. A copy of the EU Declaration of Conformity is available online at www.dji.com/euro-compliance...
