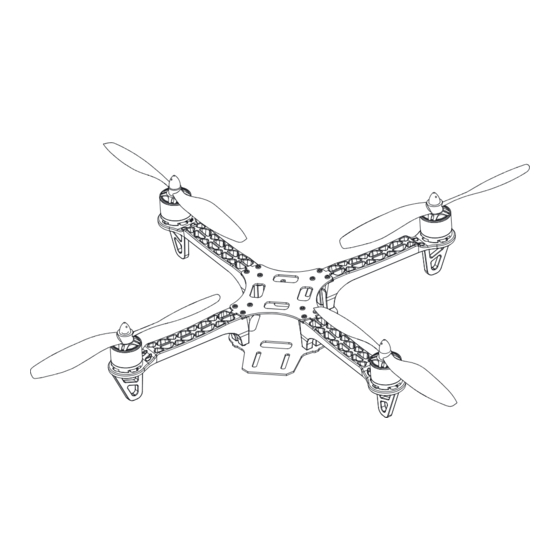

    F330 Profile FlameWheel330 (F330) is a multi-rotor designed for all pilots for fun or AP. With DJI Naza autopilot system, it can achieve hovering, cruising, even rolling and other flight elements. It can be applied for entertainment, aerial photography, FPV and other aero-modeling activities.
  • Page 3: Table Of Contents

    Check whether all parts of multi-rotor are in good condition before flight. Do not fly with old or broken parts. Use DJI parts as much as possible. If you have any problem you cannot solve during installation, please contact our customer...
  • Page 4: Table Of Contents

    In Box Top Board 330FBT ×1 Bottom Board 330FBB ×1 Arms 330FAW ×2 330FAC ×2 8in Propeller Pairs 330P08×2 Motors 330MOT ×4 ESC 330ESC ×4 OPTO Screws 330-M3×8 ×16 Screws 330-M2.5×5 ×20 Magic Strap 330MSX ×1, Battery Band 330BBX ×1...
  • Page 5: Tools Needed

    Tools Needed 2.0mm Hex Wrench For frame and motors installation. Screw Glue For fastening screws. Nylon Cable Tie Scissors For binding devices and wires. Diagonal Cutting Pliers Foam Double Sided Adhesive Tape For fixing receiver, controller and other modules. Soldering-iron & wires For connecting ESCs’...
  • Page 6: Assembly

    Assembly Screws M2.5×5 Board ① ② Motor Motor ③ ④ Make sure use the washers to install motors as the figure shows, otherwise the screw will touch the motor coil. Screws M3×8 Bottom Board Step 1 Step 2 Step 3 Step 4 Step 5 Install bottom board...
  • Page 7: Esc Sound Introduction

    Throttle stick is not at bottom Input signal abnormal B---------B---------B… Input voltage abnormal BB----BB----BB----BB…. Tips: DJI ESCs are specially designed for multi-rotors. When use with DJI autopilot systems, you do not have to setup any parameters or calibrate travel range. Specifications Frame Diagonal Wheelbase 330mm...
