HD IP
PRO

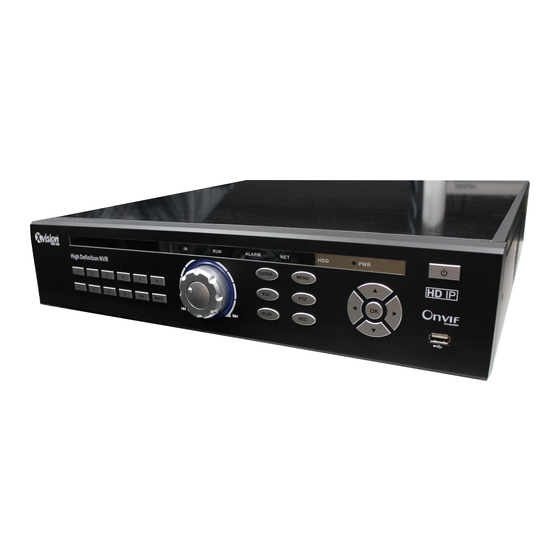

Professional HD IP NVR
8 Camera
8 Camera
16 Camera
20 Camera
36 Camera
User Guide
Thank you purchasing the XRN HD IP NVR from Xvision Pro HD.
Please ensure that you read and understand this User Guide before operating the camera.
Please store this User Guide in an easily accessible location.
Version 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for XVision XRN0808E
Summary of Contents for XVision XRN0808E
- Page 1 36 Camera User Guide Thank you purchasing the XRN HD IP NVR from Xvision Pro HD. Please ensure that you read and understand this User Guide before operating the camera. Please store this User Guide in an easily accessible location.
-
Page 2: Table Of Contents
4.3.2 Advanced Setting .............. 4.3.3 DDNS Setting ..............4.3.4 NTP Setting ............... 4.3.5 Email Setting ..............4.4 Alarm & Exception ................4.4.1 Alarm Input ..............4.4.2 Alarm Output ..............4.4.3 Exception ................4.4.4 Management Platform ............. 4.5 Account Setting ................4.5.1 User Information Setting ..........4.5.2 User Online Checking ............4.6 System Admin ................. 4.6.1 Device Log ................ 4.6.2 Stream Info ............... 4.6.3 HDD Setting ..............4.6.4 System Update ..............www.xvision.com... - Page 3 7. PTZ Control ....................8. Capture ....................9. Alarm Setting (Event Log) ................ 10. File Manage ................... 11. Manual Record ..................12. Screen Display Setting ................13. Image Setting ..................14. Screen Aspect Ratio ................15. Start/Shutdown System ................. 16. FAQ’s ..................... www.xvision.com...
- Page 4 7. When installing the camera, please make sure that it does not face any objects giving out strong lights as this will damage the CCD of the camera. 8. Please do not use the camera in an environment where temperatures that exceed either -20°C to +55°C. www.xvision.com...
-
Page 5: Introduction
It is recommended that the units are setup and tested before being mounted or installed. Please note that as of February 2014 all of the XRN/XC units only support Internet Explorer and the CMS software. New firmware is in in the final beta stages to support all browsers, this will be available on website and will already be loaded to cameras purchased in May 2014. These instructions are for guidance only detailed information is in accordance with the product. The instructions may include some technical inaccuracies or typographical errors, these will be corrected in future updates. The product or procedures described in the instructions may be changed or updated at any time without prior notice. Screenshots used in the instruction are only for indications and explanations. 1.1 Package Contents XRN0808E/XRN0808P XRN0808E NVR or XRN0808P NVR Software CD 5V PSU www.xvision.com... - Page 6 XRN User Guide XRN1609/XRN2016/XRN3625 XRN1609 NVR or XRN2016 NVR or XRN3625 NVR Software CD USB Mouse SATA Cables Remote Control Rack Mount Mounting Accesories www.xvision.com...
-
Page 7: Wizard Setup
XRN User Guide 1. Product Overview 2. Wizard Setup After applying power to the XRN and having a monitor connected, you will see the main screen. Right click on your mouse and select Start > Login. The default user name is ‘admin’ and there is no password. Next, select the desired language. Then, change your video format and resolution (please make sure your monitor can support the resolution that you have selected). www.xvision.com... - Page 8 XRN User Guide When the format and resolution has been selected, click ‘Next’ to begin setting up the IP address, subnet and default gateway. 1. Change the IP address to 192.168.1.100 as below. IP address change 2. When finished, click the ‘OK’ button. You will be asked to ‘Set up the IP camera manually’, please select ‘Cancel’. www.xvision.com...
-
Page 9: Menu Operation
Once you have completed the wizard you can now right Click and you will get the menu as shown below, we will run through all the options and start with adding an IP camera. 3.2 Auto Add IP Camera When the IP has been set up on the XRN, you will be able to use the Auto IP feature. The Auto IP function will take the XRN IP address and automatically add IP address to the XC IP cameras starting from the next IP. For example, if the XRN IP is 192.168.1.100, the first XC IP camera will have the address 192.168.1.101 and the second 192.168.1.102 and so on. 1. To set up the Auto IP function, firstly right click the mouse and go to the ‘IP Channel Setting>Auto’. 2. Confirm that you wish to set up an IP channel automatically. www.xvision.com... -
Page 10: Manually Adding A Camera
XRN User Guide 3. When you click ‘OK’ you will see a progress bar (below). When finished you will be able to see the image from the camera you have added. (Onvif) 3.3 Manually Adding a Camera To manually add a camera, right click the mouse and navigate to the ‘IP Channel Setting’ option, then ‘Manual’. 3.3.1 Search IP Camera To search for an IP camera manually, click the ‘Search’ button and all the IP cameras on your LAN will appear. 3.3.2 Add Found IP Cameras You can also add IP cameras automatically from this section. To do this, Click “√” next to the IP Camera you want to add. This will add the IP Camera to the window on the left. This means it is now added to the XRN. To finish, click save in the top right and close the window. To add all cameras, click the ‘ALL’ option on the left hand side of the window. www.xvision.com... -
Page 11: Manual Add
• Enable: Select the relevant channel, check “Enable” • Protocol: ONVIF Standard protocol/ I8 Private protocol/ I9 Private protocol/ RTSP Standard protocol for selection • IP Add: Edit and modify the IP address manually • Port: Edit and set the relevant port number • Stream Type: Select “Main Stream” or “Sub Stream” • Network Type: Select “TCP” or “UDP” • User: Input the user name • Password: Fill the password in the password field www.xvision.com... -
Page 12: Changing Ip Camera Settings
XRN User Guide 3.6 Changing IP Camera Settings Double-click the channel parameters which you want to modify on the “ Channel menu”, then fill in the relevant parameters, click “Modify”, as shown below. 3.7 Delete IP Camera Mark the IP Camera parameters which you want to remove, then click “Delete”, as shown below. www.xvision.com... -
Page 13: System Configuration
1. Product Overview 4. System Configuration 4.1 Device Parameters Set Click “Device parameters” on the “Device Info.” interface. Then you can view and modify the relevant basic information, as shown below. 1. Device Info: Check and modify the basic information 2. System Version: Edit the system version number 3. PTZ Setting: Modify the access dome cameras parameters 4. DST Setting: Enable and set DST parameters www.xvision.com... -
Page 14: Channel Parameters Set
Select the relevant channel and modify the parameters on the “Display Setting” interface, as shown below. 1. Channel: Modify the specified IP Cameras channel name 2. Local Camera Name: Modify the IP Cameras channel name 3. Time Format: Select time display mode for the IP Camera 4. Date Format: Select date display mode for the IP Cameras Channel 5. OSD Position: If you have selected to show date and time, you can select where they are displayed on the IP Cameras channel screen. 6. Image Setting: Adjust the IP Cameras brightness/ contrast / Saturation and Hue www.xvision.com... -
Page 15: Video Parameters
1. Channel: Select the channel number 2. Encoding Type: Main stream/ Sub stream/ Main stream (Event) 3. Stream Type: Audio & Video /Video optional 4. Resolution: Set the resolution of the IP cameras 5. Bit Rate Type: CBR/VBR optional 6. Bit Rate: Select relevant bit rate which needed 7. Frame Rate: Select different frame rate from the drop-down list, “FULL “default. 8. Video Quality: Different level video quality optional, “Highest” default. Please Note These settings are only available for our Protocols I8 and I9 not Onvif 4.2.3 Encoding Type & Resolution If you have added your IP camera but are getting no live image or a frozen image you may need to change the Sub Stream resolution and the Stream type on the XRN. The table on the following page will show you all the supported stream types on your XRN unit. www.xvision.com... - Page 16 XRN User Guide 8x[1920*1080]+Sub stream [640*480] + 2Ref. + 1Play XRN0808E 8x[1280*720]+Sub stream [640*360] + 1Ref. + 4Play 16x[1280*960]+sub stream[640*480]+4Ref.+4Play XRN1609 9x[1920*1080]+sub stream[960*576]+4Ref.+1Play 20x[1280*960]+sub[640*480]+4Ref.+4Play 16x[1920*1080]+sub[640*480]+4Ref.+4Play XRN2016 8x[1920*1080]+8x[1280*960]+sub[640*480]+4Ref.+4Play 4x[2048*1536]+sub[960*576]+4Ref.+4Play 36x[1280*960]+sub[720*576]+4Ref.+8Play 25x[1920*1080]+sub[960*576]+4Ref.+4Play 16x[1920*1080]+16x[1280*960]+sub[960*576]+4Ref.+4Play XRN3625 8x[2048*1536]+sub[960*576]+4Ref.+8Play 4x[2592*1920]+sub[960*576]+4Ref.+4Play The values above signify the maximum amount of channels, the maximum supported Main Stream resolution, the maximum supported Sub Stream resolution and the maximum amount of channels that are shown in playback.
- Page 17 Up to 4 Cameras All 8 Cameras All 8 Cameras All 8 Cameras Up to 4 Cameras 8 Cameras 8 Cameras All 16 Cameras Up to 4 Cameras To configure the above settings, please follow the steps below: On the main screen, right click and choose the ‘Setting’ option. Then, select the ‘Device’ option and ‘Device Info’ as shown in the right hand image above. www.xvision.com...
- Page 18 XRN User Guide On the ‘Device Info’ page at the bottom you will find Stream Type, select the drop down list and pick the required Stream. When you have selected the stream type, the XRN unit will reboot. When rebooted, navigate to the main menu and go the ‘Setting-Channel-Video Parameters’. Then, you can change your main stream and sub stream to match the new stream settings. Under video parameters, change between main stream and sub stream settings for each channel. The XRN1609, XRN2016 and XRN3625, when in 1 or 4 screens use the main stream to display. If the display is set to 9/16/25/36 screens, the sub stream is used. For the XRN0808E, in single view the main stream is used and when display is set to 4/9 split view, the sub stream is used. The recommended Bit rate for main stream is the following: For 720P IP camera: 3072Kbps For 1080P IP camera: 4096Kbps For example, if the XRN2016 is in the mode of 16x [1920*1080] +sub [640*480] +4Ref. +4Play, it supports a sub stream of 640x480 maximum, so the correct resolution of the sub stream you have to setup is 640x480 (VGA), or Q720P/QVGA/CIF. If the resolution is set to higher, there will be no image displayed through HDMI and VGA output when the XRN displays in multi-screens (9/16/25/36 screens). The recommended bit rate under Sub stream is 512Kbps or less. The example below shows live image support for XRN2016.
-
Page 19: Schedule Record
XRN User Guide 4.2.4 Schedule Record Here you can set the schedule recording for each channel. Remove the tick from “All day recording” to set your own date, time and method of recording. Simply select the method of recording Schedule/ Motion/ Alarm/ Motion\Alarm/ Motion & Alarm. Then left click the mouse over the time and date frame you want the selected recording method. To change this time, double click the coloured area, as shown below. 4.2.5 Record Time Remove the tick from “All day recording” now you can select “Setting” next to “Record Time” to do period time recording on the “Schedule “ interface, as shown below. www.xvision.com... -
Page 20: Advance Record
XRN User Guide 4.2.6 Advance Record Set Pre and Post Recording by selecting the advanced button. as shown in the picture below. 4.2.7 Motion Detection Please Note The IP camera must support motion detection to use this function. Modify each video channel parameters on the “Motion” interface, as shown below. 1. Click “√” in front of “Enable Motion Detection 2. Set motion areas, Left click and drag on your mouse to select the motion area, you will be left with squares as shown below. To remove an area use the right button and drag on your mouse. The motion area us enabled across all the XR cameras by default. www.xvision.com... -
Page 21: Video Lost
XRN User Guide 3. Adjust the Sensitivity of the motion detection. 4. Set an alarm schedule 5. Select trigger mode, as shown in the picture below. 4.2.8 Video Lost Modify each video channel parameters on the “Video lost” interface, as shown in the picture below. 1. Click “√” in front of “Enable Video Lost” 2. Set arm schedule, you will see a graph, select the required date and time. 3. By default this is all selected. You can Right click on your mouse and de-select time and date intervals, or select “Setting” and you will get a full date and time table to change more preciously. This is shown below. www.xvision.com... -
Page 22: Tampering Alarm
XRN User Guide 4. Select Linkage to change the Trigger mode, as shown in the picture below. 4.2.9 Tampering Alarm Please Note Your IP camera must support tampering alarm. Modify each video channels parameters on the “Tampering Alarm” interface, as shown below. 1. Click “√” in front of “Enable Video Tampering” 2. To set an area, Left click and drag on your mouse to select the Alarm area (you can only have one area). You will be left with a clear box with a red outline shownon the next page. To remove an area use the Right button and drag on your mouse inside the box. www.xvision.com... - Page 23 XRN User Guide 3. Set Arm Schedule: You will see a graph, select the required date and time. By default this is all selected. You can Right click on your mouse and de-select time and date intervals, or select “Setting” and you will get a full date and time table to change more preciously, as shown below. 4. Next select trigger mode, as shown in the picture below. www.xvision.com...
-
Page 24: Video Mask Setting
XRN User Guide 4.2.10 Video Mask Setting Modify each video channel parameters on the “Video Mask” interface, as shown below. 1. Click “√” in front of “Enable Video Mask” 2. To set mask areas, Left click and drag on your mouse to select the Alarm area (you can have eight areas). You will be left with a clear boxes with a red outline. To remove an area use the Right button and drag on your mouse inside the box. www.xvision.com... -
Page 25: Network Parameters
XRN User Guide 4.3 Network Parameters Below is an image of the Network settings tab. 4.3.1 Network Setting Modify the basic network parameters on the “Network setting” interface, as shown in the picture below. 1. NIC (Network Interface Card) Type: This will always be a value of 1 unless you have more than one NIC adapter. 2. IP: Input the relevant IP address number (IP:192.168.1.188 default for all our IP Hardware) www.xvision.com... - Page 26 6. Default Gateway: Input relevant LAN default gateway, this is usually your routers IP address. 7. MAC: Display present MAC address 8. HTTP Port: Input relevant port number (Default 80) 9. Multicast: Edit relevant multicast address 10. WIFI (Not supported on all models): Click “√” in front of “Enable Wi-Fi” after link Wi-Fi external attachment and then click “Refresh”. The device will then search wireless automatically, input the relevant parameters and click “OK” to save it, as shown in the below picture. 11. 3G (Not support on all models): Click “√” in front of “Enable 3G” after link 3G external attachment, relate device type, edit relevant phone number and select work state. Click “OK” after setting, as shown in the picture below. www.xvision.com...
-
Page 27: Advanced Setting
XRN User Guide 4.3.2 Advanced Setting Set advanced configuration parameters on the “Advance” interface, as shown below. 4.3.3 DDNS Setting DDNS is used when you do not have a static IP address from your ISP to access your XRN remotely. This is sometimes a free service but some will charge, the Xvision XRN supports the following DDNS websites: IP Server / DynDns / PeanutHull / No-IP and 3322. Once you have registered with one of these companies you can fill in the below DDNS page with the account you created. www.xvision.com... -
Page 28: Ntp Setting
5. Input the password 6. Confirm the password 7. Input the domain name 4.3.4 NTP Setting 1. Server Address: Input the IP of the NTP server 2. NTP Port: Only supports TCP transmission, default 123 3. Update Frequency: Input the time interval needed to be adjusted 4. Select Time Zone: Select the time zone of different places 5. GMT: Adjust time www.xvision.com... -
Page 29: Email Setting
XRN User Guide 4.3.5 Email Setting If you selected email as the trigger alert in any of the previous sections for alarm etc, then you will need to fill in the email section. These details can be obtained from your email provider or your network administrator. To set up email alerts, you will need to enter: • Email Address • Password • SMTP Server address • SMTP port • Now you can enter the preferred email address to receive alerts in the box in the middle (shown below). DDNS is used when you do not have a static IP address from your ISP to access your XRN remotely. This is sometimes a free service but some will charge, the Xvision XRN supports the following DDNS websites: IP Server / DynDns / PeanutHull / No-IP and 3322. Once you have registered with one of these companies you can fill in the below DDNS page with the account you created. www.xvision.com... -
Page 30: Alarm & Exception
XRN User Guide 4.4 Alarm & Exception Set the relevant parameters according to the need on the “Alarm” interface, as shown below. 4.4.1 Alarm Input (Not supported on all models) Set alarm input parameters on the “Alarm Input” interface, as shown in the picture below. 1. Enable alarm processing 2. Set arm schedule 3. Select trigger mode, as shown in the picture on the following page. www.xvision.com... -
Page 31: Alarm Output
XRN User Guide 4.4.2 Alarm Output (Not supported on all models) Set alarm output parameters on the “Alarm Output” interface, as shown below. 1. Set alarm output delay 2. Set alarm schedule www.xvision.com... -
Page 32: Exception
XRN User Guide 4.4.3 Exception Set abnormality on the “Exception” interface, as shown below. 4.4.4 Management Platform This section is for future development, you will see other supported client software protocol’s with future firmware updates. Currently there is only our Cloud function (P2P), you can select it ON or OFF. There will be more information on this feature in future manual updates, www.xvision.com... -
Page 33: Account Setting
XRN User Guide 4.5 Account Setting Here you can set the allowed users, change their access priority and passwords. 4.5.1 User Information Setting This option allows you to Modify, Add or Delete users or distribute user permission on the “Account Setting” interface. www.xvision.com... -
Page 34: User Online Checking
XRN User Guide 4.5.2 User Online Checking Check the current user connection status of the connected online user “User Online” interface (shown below). www.xvision.com... -
Page 35: System Admin
XRN User Guide 4.6 System Admin Here you can check system logs, Stream info, HDD settings, Firmware and Recovery configuration. This option allows you to Modify, Add or Delete users or distribute user permission on the “Account Setting” interface. 4.6.1 Device Log Click “Device Log” on the “System” interface, here you can search and export system logs. 1. Main Type of Log: All Type / Alarm / Exception / Operation for selection 2. Sub Type: According to the different main types, you have corresponding sub types for selection. 3. From: Select a start time for log query 4. To: Select an end time for log query 5. Export: Export and display all query results www.xvision.com... -
Page 36: Stream Info
XRN User Guide 4.6.2 Stream Info View the stream information of each connected IP Camera on the ‘Stream Info.’ interface, as shown below. 4.6.3 HDD Setting The ‘HDD Setting’ allows you to check HDD capacity / free space. You can also format by click “√” in front of HDD No and then selecting format at the bottom of the page. Please note that the XRN will reboot after this to complete the format. Please Note Please Note on the XRN8080E, you have to use the E-SATA port for HDD larger than 2TB as your HDD capacity will not be fully detected. www.xvision.com... -
Page 37: System Update
XRN User Guide 4.6.4 System Update The system update option allows you to apply new firmware to the XRN, put the firmware on a USB dongle and then insert to one of the available USB ports. Select browse and locate the file, select it and then select ‘Upgrade’ to complete the firmware update. 4.6.5 Auto Reboot Select your required maintenance mode: Disable/ Every Day/ Every week/ Once options for selection, now you can select the schedule as shown below. The device will restart according to the maintenance mode. 4.6.6 Recovery Configuration This option allows you to ‘Export Configuration’, ‘Import Configuration’ and ‘Default’ to factory reset the XRN. www.xvision.com... -
Page 38: Video Playback
5. Snapshot: Can be snapshot for any playback channel 6. Frame play: Single frame to play 7. Backup: Make video backup for any channel 8. Full Screen: Video image playback with full screen 9. Volume: Adjust the volume of playback audio Double-click channel bar or click “Play” button to play the backup video, double-click single channel screen to get full screen display. www.xvision.com... -
Page 39: Backup Setting
XRN User Guide 1. Product Overview 6. Backup Setting In the backup setting option, you can either search and playback the footage as per the Video Playback section and then click on the backup button or Connect your chosen backup device. To do this select ‘Backup’ in the main menu, click” Refresh” and when found, the device will appear in the drop down box next to refresh. 1. Channel: Select relevant channel in the drop-down list 2. From: Select a start time for video backup 3. To: Select an end time for video backup Click” Start” to start the backup, the process bar at the bottom will show the completion percentage. Once complete press the unmount button to safely remove the USB. www.xvision.com... -
Page 40: Ptz Control
XRN User Guide 1. Product Overview 7. PTZ Control 1. Preset Setting: Rotate the camera to the appropriate angle and position by PTZ directional buttons, select a preset number in the drop-down list, and click the ‘ ‘ button. 2. Call Preset: Select a needed preset number in the drop-down list, and click the ‘ ‘ button. 3. Cruise Setting: Select a cruise number in the drop-down list, and click ‘ ‘ button, the below interface will pop-up. On the ‘Cruise’ interface you can set preset, residence time, cruise speed, and click “Add” to add new cruise preset (support multiple presets). To clear the preset, click ‘Delete’. Call cruise: Select a needed cruise number in the drop-down list, and click the ‘ ‘ button. Cruise delete: Select a needed cruise number in the drop-down list, and click ‘delete’ to clear the cruise. 4. Track” Setting: Select a track number in the drop-down list, click track start buttons to make PTZ operation. Then, click again to finish, track memory operate successfully. Call track: Select a needed track number in the drop-down list, and click the ‘ ‘ button. www.xvision.com... -
Page 41: Capture
Select ‘Capture’ on the main menu and press the lower right corner of the screen to get a snapshot of the preview channel. To check the stored image go to file manager in the main menu. 1. Product Overview 9. Alarm Setting (Event Log) Select ‘Alarm’ in the main menu, all the devices alarm information will appear on the list (shown below). 1. Product Overview 10. File Manage Select ‘File Manager’ in the main menu, the file list column will show an external storage device backup files and local capture image. www.xvision.com... -
Page 42: Manual Record
Manual recordings have the highest priority, whatever state of each channel at present. Click ‘Manual’ and then all of the corresponding channels will be set to ordinary record. 1. Product Overview 12. Screen Display Setting Select ‘Display Setting’ in the main menu, the following interface will pop-up. 1. Resolution: Select different resolution. Please check your monitor supports the resolution you are changing to. 2. Display: Adjust the brightness, contrast, saturation and hue of the video screen display. 3. Language: Different kinds of languages for selection (English, Simple Chinese, French, etc.) 4. Screen Mode: 1 /4 / 9 / 16 Screen for section. 5. Auto Logout: The XRN will log the user out when no user interaction has taken place. 6. Rotation Interval: Set rotation interval time (seconds). Click “√” in front of ‘Enable SEQ’ to make video image rotate automatically. www.xvision.com... -
Page 43: Image Setting
XRN User Guide 1. Product Overview 13. Image Setting Adjust the video image brightness, sharpness, saturation and tone volume on the ‘Image Setting’ interface per channel. 1. Product Overview 14. Screen Aspect Ratio To set the aspect ration, select ‘4:3’ on the main menu, the video image will display at 4:3. According to the XRN version there are 4 screen, 9 screen, 16 screen, 25 screen, 36 screen for selection. www.xvision.com... -
Page 44: Start/Shutdown System
XRN User Guide 1. Product Overview 15. Start/Shutdown System Main menu-Start (Wizard setup, Power off, Reboot, Login, Logout). 1. Wizard Setup: Click to run the Wizard at any time. 2. Power Off: Click ‘Power off’, to shutdown the XRN 3. Reboot: Click ‘Reboot’, the XRN will reboot automatically 4. Logout: Click ‘Logout’, the XRN will logout, you will now see the main OSD menu greyed out. www.xvision.com... -
Page 45: Faq's
16. FAQ’s 1. I am missing items? Please contact your supplier immediately and report this. 2. No output on XRN NVR? Please check the PSU and monitor out cables (VGA/HDMI). Also, check the power button is pressed down on the XRN0808E. 3. I can’t find any IP cameras? Check the cables, confirm you are only connecting one camera at a time, remember all devices share the same default IP address (192.168.1.188). 4. I can’t backup to my USB? Make sure the USB is formatted as FAT32. - Page 46 XRN User Guide 1. Product Overview Notes www.xvision.com...
- Page 47 XRN User Guide 1. Product Overview Notes www.xvision.com...
- Page 48 In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase. Xvision UK, Unit 2 Valley Point, Beddington Farm Road, Croydon, Surrey CR0 4WP www.xvision.com...
