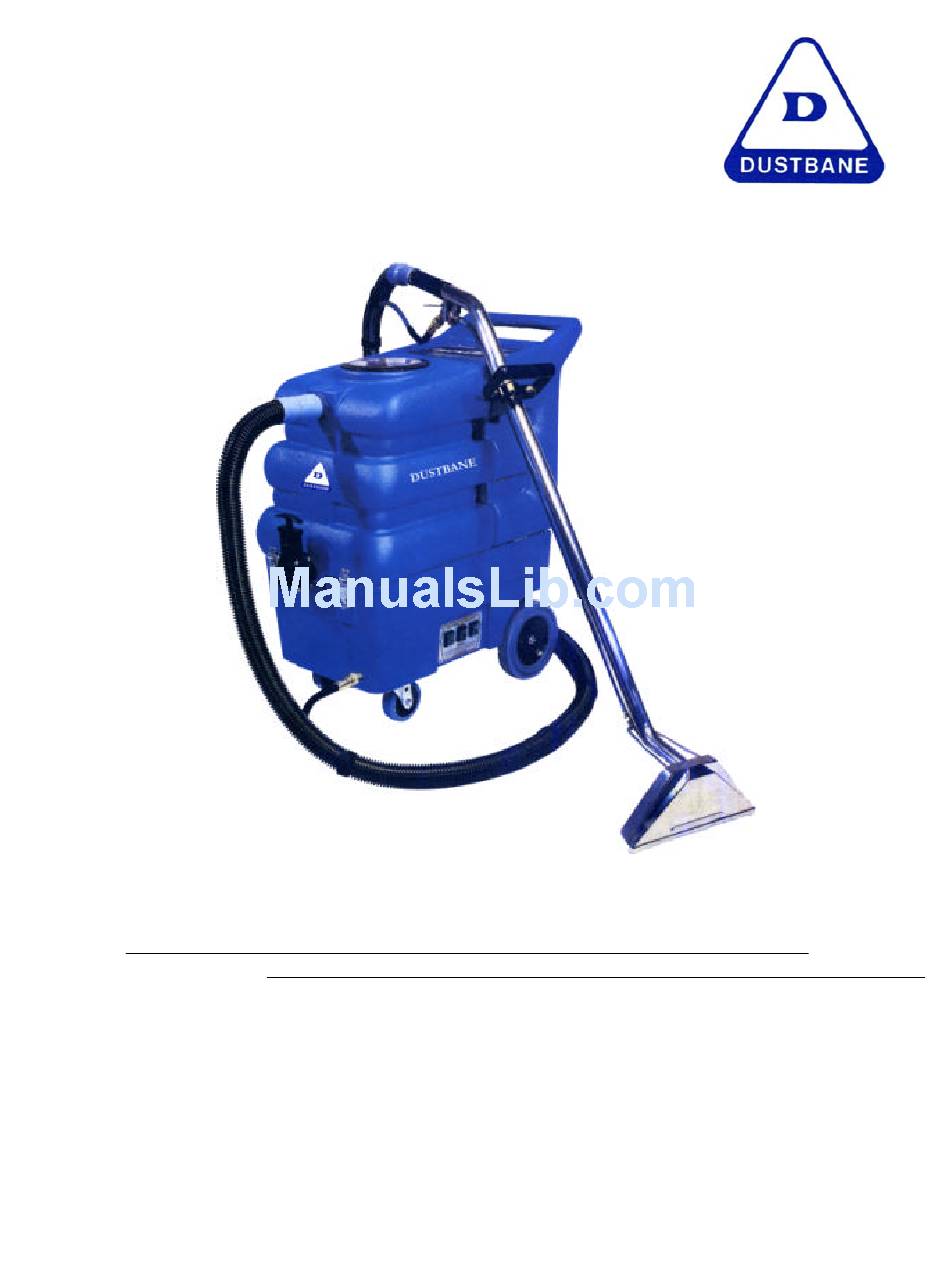

- Page 1 OPERATION MANUAL POWER CLEAN 1000 XT POWER CLEAN 1000 XT CARPET EXTRACTOR Item Code 19382 Edition 02 03 27...
-
Page 2: How To Use This Manual
NOTE: If a service or option kit is installed on your machine, be sure to keep the KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts. Dustbane Products Limited... - Page 3 DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ DEALER NAME ________________________________ OPERATIONS GUIDE NUMBER ___________________ PUBLISHED ______________________________________ ____ YOUR DEALER Name: _______________________________________________________________________ ___________________________ Address: _______________________________________________________________________ ________________________ For the name and address of your dealer contact: Windsor Industries Dustbane Products Limited...
-
Page 4: Important Safety Instructions
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not pull/run machine over cord. Keep cord away from heated surfaces. Connect to a properly grounded outlet. See Grounding Instructions. SAVE THESE INSTRUCTIONS Dustbane Products Limited... -
Page 5: Hazard Intensity Level
Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. Dustbane Products Limited... -
Page 6: Grounding Instructions
Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Dustbane Products Limited... -
Page 7: Table Of Contents
Solution Pump Replacement ......4-2 Vacuum Motor Replacement......4-2 Pump Replacement Kits ........4-3 Pressure Regulator........4-3 Machine Troubleshooting.......4-4 GROUP PARTS LIST Base Group...............5-1 Label Group...............5-3 Pump Group..............5-5 Recovery Tank Group...........5-7 Solution Tank Group............5-9 Vacuum Group..............5-11 Wiring Group..............5-13 Suggested Spare Parts/Notes........5-14 Warranty................5-15 Dustbane Products Limited... -
Page 8: Technical Specifications
10 gal. (38L) Recovery Capacity 10 gal. (38L) Dimensions – Weight (Empty) 81 lbs. (37kgs) Dimensions - Length 31 in. (78.7cm) Dimensions - Height 35.5 in. (90.2cm) Dimensions - Width 17 in. (43.2cm) Power Cable 25 ft. (7.6M) Dustbane Products Limited... -
Page 9: Machine Operation
MACHINE OPERATIONS Solution Tank Solution Tank lid Vacuum Tank Vacuum Tank lid Heater (Optional Vacuum Inlet Accessory) Base Assembly Dump Valve Vacuum #2 Water Pump Vacuum #1 Solution Outlet Dustbane Products Limited... -
Page 10: Pre-Run Machine Inspection
Chlorinated Hydrocarbons one area. Sta-Puf Fabric D-Limonene Softener* Lysol* Vinegar Methyls (MEK) WARNING Perchlorethylene (perc) Before making any adjustments or performing Phenols any maintenance to your machine, disconnect Trichlorethylene the power cord from the electrical source. *Registered Trademark Dustbane Products Limited... -
Page 11: Shut Down And Storage
5. Remove as much moisture from system before storing in cold climates. Excess water may freeze during storage and crack internal components, causing damage to the unit. Dustbane Products Limited... -
Page 12: Maintenance
2. If spray jet becomes clogged, remove the spray tip, wash it thoroughly, and blow dry. NOTE: D O NOT USE PINS WIRE CLEAN NOZZLE AS THIS COULD DESTROY THE SPRAY PATTERN 3. Apply silicone lubricant to solution nipple. Dustbane Products Limited... -
Page 13: Solution Pump Replacement
Spring inside brush housing will damage motor if brushes are allowed to wear away completely. Periodically check the length of the carbon brushes. Replace both carbon brushes when either is less than 3/8" long. Dustbane Products Limited... -
Page 14: Pump Replacement Kits
5. Lubricate the piston and u-cup with Superlube. 6. Reassemble regulator. 7. With pump ON, re-adjust pressure regulator for normal operation. LUBRICATE U-CUP WITH SUPERLUBE MONTHLY. U-CUP SPRING RETAINER PLATE PISTON SPRING (GOLD - 125 PSI) Dustbane Products Limited... -
Page 15: Troubleshooting
Light carpet with no Go over carpet with browning prevent only brown prevention Solution hose connection Check for positive connection Solution not flowing Faulty pump Repair or replace properly Faulty floor tool valve Repair or replace Faulty pump switch Repair Dustbane Products Limited... -
Page 16: Base Group
BASE GROUP Dustbane Products Limited... - Page 17 PL, EXTRACTOR 3 DWITCH BI 3-70532 SCR, 10-32 X 1/2 PPHMS BLK NP 3-08070 BASE, CM DK BLUE 3-20008 CLAMP, 5/8 NYLON UL/CSA 3-280-03 RIVET ALUMINUM 3/16 X 3/4 3-46-802536 HING, SOL & VAC TANK 4" X 8" Dustbane Products Limited...
-
Page 18: Label Group
LABEL & STRAP GROUP Dustbane Products Limited... - Page 19 LABEL GROUP PARTS LIST SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 3-320-05 VELCRO STRAP 3-500009 LABEL, WARNING Dustbane Products Limited...
-
Page 20: Pump Group
PUMP GROUP TO SOLUTION TANK Dustbane Products Limited... - Page 21 SCR, 10-32 X 1 PPHMS BLK 3-73505 STRAIN RELIEF, 1/2 NPT TRUMPET 3-060-04A CORD ASM, 14/3 SJT X 25' BLK 3-57040 NUT, 1/2 NPT CONDUIT WASHER, .765 ID X 1.31 OD X .09T 3-87173 3-84181 VALVE, BPR 125 PSI Dustbane Products Limited...
-
Page 22: Recovery Tank Group
RECOVERY TANK GROUP Dustbane Products Limited... - Page 23 ELBOW, 1.5 FPT X FS PVC 3-81491 SET SCR, 5/16-18 X 1.5 CP SS 3-75403 TANK, CM RECOVERY DK BLUE 3-35255 GASKET, TANK LID 3-260-64A ACCESS COVER CLEAR 6" W/RIM 3-70546 SCR, 8 X 3/4 PFHT/S BLK ZINC Dustbane Products Limited...
-
Page 24: Solution Tank Group
SOLUTION TANK GROUP Dustbane Products Limited... - Page 25 HING, SOL & VAC TANK 4" X 8" 3-70020 SCR, 1/4-20 X 1/2 HHCS SS 3-87013 WASHER, 1/4 ID X 5/8 OD SS 3-56-502143 BRKT, CORD WRAP NO HEATER 3-70384 SCR, 1/4-20 X 1/2 PHTR BLK 5-10 Dustbane Products Limited...
-
Page 26: Vacuum Group
VACUUM MOTOR GROUP 5-11 Dustbane Products Limited... - Page 27 VAC SPACER 2 1/4 3-35011 GASKET, 3/8T 5.7 VAC FAN SEAL 3-70663 SCR, 1/4-20 X 3 1/4 HHCS PLT 3-57245 NUT, 1/4-20 HEX NYLOCK SS 3-56-502084 BRKT, VAC MOUNT, DUAL 2 STG VACUUM 110V TWO STAGE 3-360-04A 116392-0 5-12 Dustbane Products Limited...
-
Page 28: Wiring Diagram
WIRING DIAGRAM 5-13 Dustbane Products Limited... -
Page 29: Suggested Spare Parts/Notes
PART NO. DESCRIPTION REF/PAGE 3-250-64A SHURFLO 100PSI PUMP DEMAND pg. 5-5 3-090-12A FLOAT CAGE ASM COMPLETE pg. 5-7 3-31032 ELBOW, 1.5 FS X FS 45D PVC pg. 5-7 3-360-04A VACUUM 110V TWO STAGE 116392-0 pg. 5-11 NOTES: Dustbane Products Limited 5-14...
