Dustbane 19315 Parts & Operation Manual

Propane high speed burnisher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Parts & Operations Manual
Manuel de pièces et d'opérations

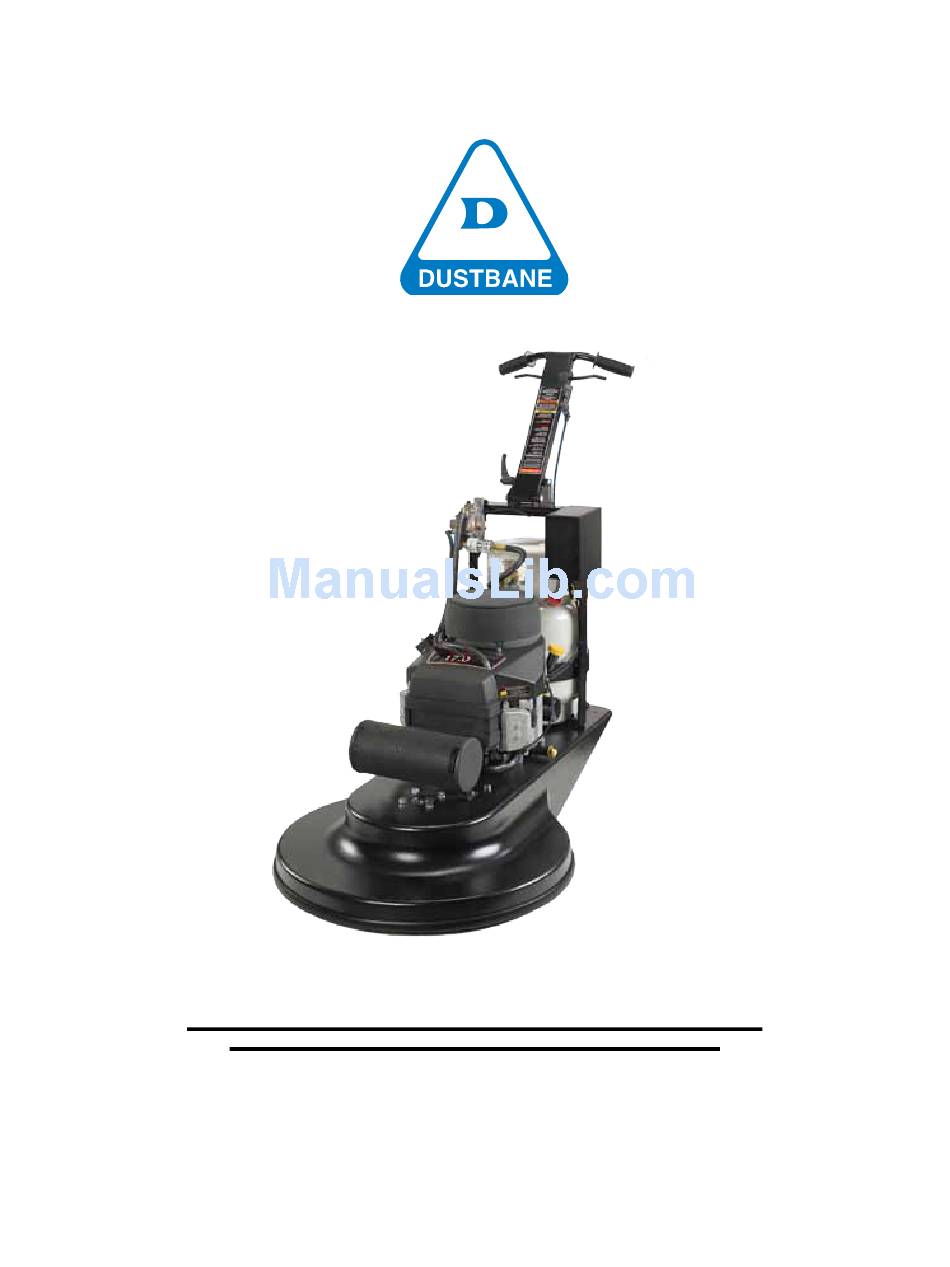

Propane High Speed Burnisher
Floor Machine / Machine à préparation de surface
Serial Number:
Numéro de série : _____________________
Code: 19315/19317/19318
More info / Plus d'info : www.dustbane.ca
2015-06
Date of Purchase:
Date d'achat : ________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 19315 and is the answer not in the manual?

Questions and answers

Related Manuals for Dustbane 19315

Summary of Contents for Dustbane 19315

  • Page 1 Manuel de pièces et d’opérations Propane High Speed Burnisher Floor Machine / Machine à préparation de surface Code: 19315/19317/19318 Serial Number: Date of Purchase: Numéro de série : _____________________ Date d’achat : ________________________ More info / Plus d’info : www.dustbane.ca 2015-06...

  • Page 3: Engine Emissions And Co Safety

    Engine Emissions and CO Safety The purpose of this document is to provide information on: • The potential effects of CO exposure; • The methods to reduce the risk of CO poisoning; • The methods used to determine the amount of potential exposure to CO produced by equipment. DANGER: All LPG (Liquid Propane Gas) powered engines, including this engine, produce Carbon Monoxide (CO).

  • Page 4: Document Overview

    Document Overview The information provided in the following overview has been condensed to provide the reader with a summary of the material presented. Potential Effects of CO Exposure • Work place/industry guidelines for CO exposure limits vary substantially from region to region (OSHA) Permissible Exposure Limit (PEL) for CO is 50 ppm, as an 8-hour time weighted average.
  • Page 5 Engine Emissions - and CO Safety Potential Effects of CO Exposure • Work place/industry guidelines for CO exposure limits • Definition of CO effects Work place/industry guidelines for CO exposure limits Limits for permissible exposure to CO vary substantially from region to region. City, State, and Industry requirements should be consulted prior to use of any equipment.
  • Page 6 Methods to Reduce the Risks of CO Poisoning • Air Exchange and CO Diffusion • Application Considerations (Burnishing versus Stripping) • Air Quality Monitoring • Room Size and Time Estimations • Maintenance of Equipment • Safety Equipment Available Air Exchange and CO Diffusion The most reliable method to prevent CO Poisoning is to ensure all the CO produced is vented outside.
  • Page 7 Notice the CO concentration and the Effective Operating Zone with air exchange. The CO cloud is still concentrated in a small area. Note the "Dividing Zone" shown above; this is the line where airflow changes direction. In Model 2, air changes are cut in Y2 as little or no CO crosses the Dividing Zone to be exhausted.

  • Page 8: Air Quality Monitoring

    Air Quality Monitoring Warning: Deployment of a monitor/detector is essential for the safe operation of any equipment that has the potential to produce CO. CO sensors/detectors became available on the mass market around 1978. The main differences between the technologies involved are battery or electric and Semiconductor or Biomimetic types.
  • Page 9 8 Hour Time Weighted Average (OSHA Method) 1.5%CO 100,000cf Hours Operation TWA (OSHA Method) 0 change/hr 1232 1/2 change/hr 1 change/hr 2 changes/hr Based on the CO production rates shown above the TWA would be exceeded in a 100 x 100 x 10 foot (empty) space after 3 hours with 2 air changes per hour.

  • Page 10: Maintenance Of Equipment

    1.5% CO Emission in 750,000 cubic feet with 480 cc 14 HP Engine and complete air/CO mixing 0 change/hr 1/2 change/hr 1 change/hr 2 changes/hr Time (hours) The Graph above depicts the relationships of air exchange to time and CO ppm with cubic feet area and percent CO emissions remaining constant.

  • Page 11: Operator Safety Instructions

    OPERATOR SAFETY INSTRUCTIONS WARNING AVERTISSEMENT ADVERTENCIA DANGER means: Severe bodily injury or death can occur to you or other personnel if the DANGER statements found on this machine or in this Owner‘s Manual are ignored or are not adhered to. Read and observe all DANGER statements found in this Owner's Manual and on your machine.
  • Page 12 WARNING: Long or continuous exposure to high noise levels may cause permanent hearing loss. Always wear hearing protection while using this machine. WARNING: Injury to the eyes and/or body can occur if protective clothing and/or equipment is not worn while using this machine.

  • Page 13: Propane Safety Information

    Propane Safety Information Facts About LP Gas - Propane As a fuel, Propane gas is unmatched for both safety and dependability. It has been used as a domestic household fuel for over half a century, and for over thirty years as an internal combustion engine fuel. Propane is a highly flammable fuel that is contained under pressure as a liquid.
  • Page 14 OVERFILLING PROPANE TANKS IS HAZARDOUS. The tank should NEVER be completely filled with liquid propane. 80% of the total tank volume is to be considered at ALL times as full. EXPANSION MUST BE ALLOWED FOR. Propane Buffer tanks are equipped with a fixed liquid level gauge which contacts the liquid level at 80% of container capacity, allowing 20% for expansion.

  • Page 15: How To Operate The Machine

    How to Operate the Machine Preparing The Machine For Use BEFORE using any type of powered equipment, proper safety dictates you should visually inspect it. 1. Adjust the HANDLE to a comfortable height and tighten the bolts. 2. BONNET FILTER - Make sure the bonnet air filter atop the engine is clean. It should be changed hourly and thoroughly cleaned before reuse.

  • Page 16: Emission Control Information

    Maintenance and Adjustments Emission Control Information To protect the environment in which we will live, the manufacturer has incorporated (1) crankcase emission and (2) exhaust emission control systems (EM) in compliance with applicable regulations of the United States Environmental Protection Agency and California Air Resources Board. 1.

  • Page 17: Recommended Oil Change Intervals

    Recommended 25 Hour Maintenance Items >Change engine oil. >Check pad driver for loose parts. >Check belt for wear or slippage. >Check engine pulley for tightness. >Check wheel bolts. >Check engine mount bolts. >Check handle bolts. >Check for leakage of engine oil at the various seals. Recommended Oil Change Intervals Do not exceed the 25 hour oil change interval.
  • Page 18 PROCEDURE FOR CHANGING MODES OF OPERATION FOR STRIPBUFF MACHINE Turn the machine over onto its right side (from the operator’s position) with the carburetor side UP on HONDA models. Remove the pad holder or brush by spinning it off of the shaft. You may have to loosen the belt tensioner by loosening the tensioner bolt about ¾...

  • Page 19: Troubleshooting

    Troubleshooting When troubles occur, be sure to check the simple causes which at first, may seem too obvious to be considered. For example, a starting problem could be caused by fuel starvation due to an empty propane cylinder or an unopened service valve.
  • Page 21 HONDA 12 VOLT BATTERY BUFFER REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1301 Ignition Switch W1302 Ignition Switch Harness N-51-2A-C-3.0 (W2606) Regulator W2649C 12" Hose Assembly w/ Regulator Valve W2608 Electric Fuel Lock-off W3001-B 11 Hp Honda Engine W3002-B 13 Hp Honda Engine W3012...
  • Page 22 24 24...
  • Page 23 HONDA 12 VOLT STRIP/BUFFER REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1301 Ignition Switch W1302 Ignition Switch Harness N-51-2A-C-3.0 Regulator W2649C 12" Hose Assembly w/ Regulator Valve W2608 Electric Fuel Lock-off W3001-B 11 Hp Honda Engine W3002-B 13 Hp Honda Engine W3012...
  • Page 25 HONDA 110 VOLT DC BUFFER REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W2649A 110 V 14" Fuel Hose w/ Swivel N00-0125A (W2607) Vacuum Fuel Lock-off W2649-B 14" Hose Assembly w/ Regulator Valve N-51-2A-C-3.0 (W2606) Regulator W3001-A 11 Hp Honda Engine W3002-A 13 Hp Honda Engine...
  • Page 27 HONDA 110 V DC TRI-STRIP REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W2649A Fuel Hose w/ Swivel N00-0125A Vacuum Fuel Lock-off W2649C 12" Hose Assembly w/ Regulator Valve N-51-2A-C-3.0 Regulator (W2606) W3001-B 11 Hp Honda Engine W3002-B 13 Hp Honda Engine W3011...
  • Page 29 HONDA 12 VOLT TRI-STRIP REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1301 Ignition Switch W1302 Ignition Switch Harness N - 51 - 2A - G - 3.0 Regulator W2649C 12" Hose Assembly w/ Regulator Valve W2608 Electric Fuel Lock-off W3001-B 11 Hp Honda Engine...
  • Page 31 HONDA 110 V DC CARPET-BUFF SOLUTION REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W2608 Vacuum Fuel Lock-off W2649C 14" Hose Assembly w/ Regulator Valve W2649A 110 V 14" Fuel Hose w/ Swivel N-51-2A-C-3.0 Regulator N00 - 0125A Honda Starter 110 V DC W3001-B 11 Hp Honda Engine...
  • Page 33 HONDA 110 VOLT DC STRIP/BUFFER REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W2649A 110 V 14" Fuel Hose w/ Swivel W2608 Vaccum Fuel Lock-off W2649B 14" Hose Assembly w/ Regulator Valve N-51-2A-G-3.0 Regulator W3001-B 11 Hp Honda Engine W3002-B 13 Hp Honda Engine W3011...
  • Page 35 KAWASAKI 12 VOLT BATTERY BUFFER REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1301 Ignition Switch W1302 Ignition Switch Harness N-51-2A-C-3.0 (W2606) Regulator W2649C 12" Hose Assembly w/ Regulator Valve W2608 Electric Fuel Lock-off W3105 13 Hp Kawasaki Twin Engine W3102 17 Hp Kawasaki Twin Engine K21163-7010...
  • Page 37 KAWASAKI 12 VOLT TRI STRIP REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1301 Ignition Switch W1302 Ignition Switch Harness N-51-2A-C-3.0 Regulator (W2606) W2649C 12" Hose Assembly w/ Regulator Valve W2608 Electric Fuel Lock-off W3100 13 Hp Kawasaki Twin Engine W3101 17 Hp Kawasaki Twin Engine K21163-7010...
  • Page 39 KAWASAKI 110 V DC TRI-STRIP REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1309 Kill Switch W2649A 110 V Fuel Hose w/ Swivel N00-0125A Vacuum Fuel Lock-off W2649C 12" Hose Assembly w/ Regulator Valve N-51-2A-C-3.0 Regulator (W2606) W3100 13 Hp Kawasaki Twin Engine W3101...
  • Page 41 KAWASAKI 12 VOLT STRIP/BUFFER REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1301 Ignition Switch W1302 Ignition Switch Harness N-51-2A-C-3.0 Regulator W2649C 12" Hose Assembly w/ Regulator Valve W2608 Electric Fuel Lock-off W3105 13 Hp Kawasaki Twin Engine W3102 17 Hp Kawasaki Twin Engine K21163-7010...
  • Page 43 KAWASAKI 110 VOLT DC BUFFER REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1309 Kill Switch W2649-A 110 V Fuel Hose w/ Swivel N00-0125A (W2607) Vaccum Fuel Lock-off W2649-B 14" Hose Assembly w/ Regulator Valve N-51-2A-C-3.0 (W2606) Regulator W3100 13 Hp Kawasaki Twin Engine W3101...
  • Page 45 KAWASAKI 110 VOLT DC STRIP/BUFFER REF # PART # PART DESCRIPTION W4020 Bottle Carrier Adjustment Handle W1309 Kill Switch W2649-A 110 V 14" Fuel Hose w/ Swivel W2608 Vaccum Fuel Lock-off W2649B 14" Hose Assembly w/ Regulator Valve N-51-2A-C-3.0 Regulator W3100 13 Hp Kawasaki Twin Engine W3101...
