programming. The inputs and 12V output are designed to withstand incorrect connections
including polarity reversal and shorts.

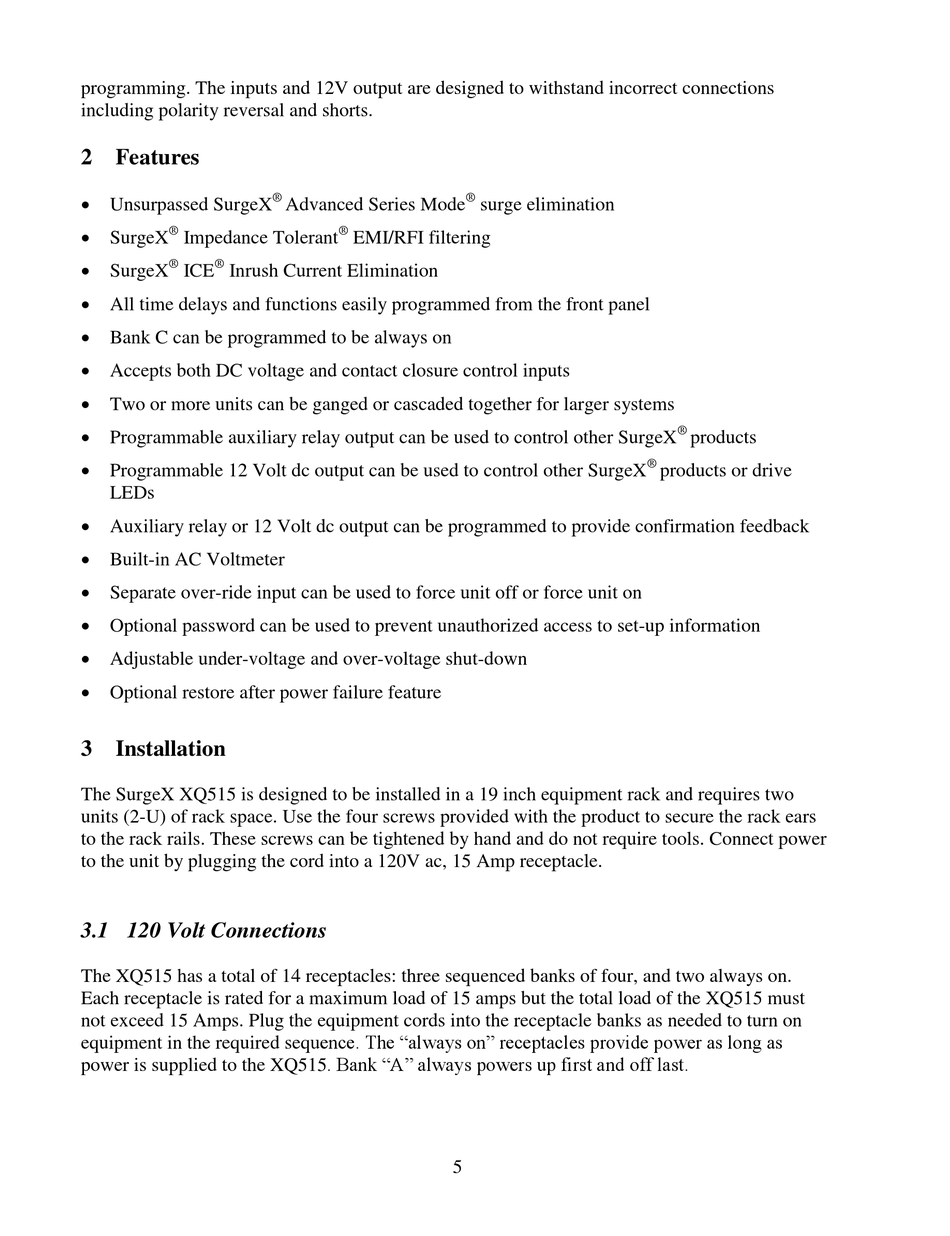

2 Features

 Unsurpassed SurgeX
 SurgeX
®
Impedance Tolerant
 SurgeX
® ®
ICE Inrush Current Elimination
 All time delays and functions easily programmed from the front panel
 Bank C can be programmed to be always on
 Accepts both DC voltage and contact closure control inputs
 Two or more units can be ganged or cascaded together for larger systems
 Programmable auxiliary relay output can be used to control other SurgeX
 Programmable 12 Volt dc output can be used to control other SurgeX
LEDs
 Auxiliary relay or 12 Volt dc output can be programmed to provide confirmation feedback
 Built-in AC Voltmeter
 Separate over-ride input can be used to force unit off or force unit on
 Optional password can be used to prevent unauthorized access to set-up information
 Adjustable under-voltage and over-voltage shut-down
 Optional restore after power failure feature

3 Installation

The SurgeX XQ515 is designed to be installed in a 19 inch equipment rack and requires two
units (2-U) of rack space. Use the four screws provided with the product to secure the rack ears
to the rack rails. These screws can be tightened by hand and do not require tools. Connect power
to the unit by plugging the cord into a 120V ac, 15 Amp receptacle.

3.1 120 Volt Connections

The XQ515 has a total of 14 receptacles: three sequenced banks of four, and two always on.
Each receptacle is rated for a maximum load of 15 amps but the total load of the XQ515 must
not exceed 15 Amps. Plug the equipment cords into the receptacle banks as needed to turn on
equipment in the required sequence. The "always on" receptacles provide power as long as
power is supplied to the XQ515. Bank "A" always powers up first and off last.
®
Advanced Series Mode
®
EMI/RFI filtering
®
surge elimination
5
®
products
®
products or drive
