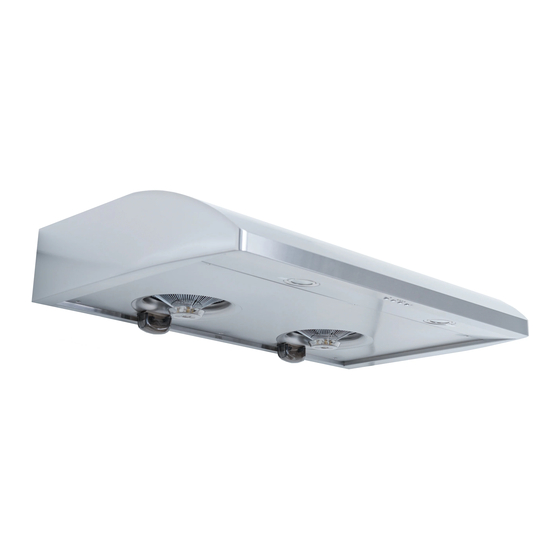

KOBE Brand Range Hood
Model No.
CH2230SQ-1 (30") / CH2236SQ-1 (36")
CH2230SQB-1 (30") / CH2236SQB-1 (36")
CH2730SQB-1 (30") / CH2736SQB-1 (36")
CH2742SQB-1 (42") / CH2748SQB-1 (48")
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH2230SQ-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KOBE CH2230SQ-1

Summary of Contents for KOBE CH2230SQ-1

  • Page 1 KOBE Brand Range Hood Model No. CH2230SQ-1 (30”) / CH2236SQ-1 (36”) CH2230SQB-1 (30”) / CH2236SQB-1 (36”) CH2730SQB-1 (30”) / CH2736SQB-1 (36”) CH2742SQB-1 (42”) / CH2748SQB-1 (48”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
  • Page 2 1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL. 2. Have your original invoice as proof of purchase and product serial number ready. 3. Call 1-877-BUY-KOBE (289-5623); or e-mail to info@koberangehoods.com to report the problem. NO RETURN, NO REFUND, NO EXCHANGE IF: 1.

  • Page 3: Table Of Contents

    [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 6 OPERATING INSTRUCTIONS....................15 MAINTENANCE ........................17 SPECIFICATIONS ........................18 MEASUREMENTS & DIAGRAMS .....................20 PARTS LIST ..........................23 CIRCUIT DIAGRAM ........................31 TROUBLE SHOOTING ......................33 WARRANTY ..........................34 PRODUCT REGISTRATION .....................36 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -...

  • Page 4: Important Safety Instructions

    KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
  • Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

  • Page 6: Components Of Package

    {G} Round Oil Container x 2 {H} Oval Oil Container x 2 3/16” x 3/8” (6 PCS) 4 x 6mm (4 PCS) 2 PCS  FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.
  • Page 7 {H} Stainless Steel Spacer x 2 (30” hood) 3/16” x 3/8” (6 PCS) 4 x 6mm (4 PCS) 2 PCS * Pre-installed * Pre-installed  FOR MORE INFORMATION, PLEASE VISIT OUR W EBS ITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.
  • Page 8 {H} Stainless Steel Spacer x 2 (30”, 42” hood) 3/16” x 3/8” (6 PCS) 2 PCS 4 x 6mm (4 PCS) * Pre-installed * Pre-installed  FOR MORE INFORMATION, PLEASE VISIT OUR W EBS ITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.

  • Page 9: Installation

    INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top...

  • Page 10: Safety Warning

    SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents UNDER THE CABINET WALL MOUNT...
  • Page 11 UNDER CABINET INSTALLATION Preparation before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 1) A straight, short vent run will allow the hood to perform more efficiently.
  • Page 12 Align and secure Top Vent Cover {E} and 3-1/4” x 10” Vent Cover (removed from rear exhaust) Figure 5 using 14 screws (13 screws taken from 6” exhaust. (Figure 5) Attach the 3-1/4” x 10” Exhaust {D} to rear exhaust (located inside hood) using 10 screws taken from rear vent cover.
  • Page 13 Ductwork Installation Figure 7 10. Use steel pipe to connect the exhaust on the hood to the ductwork. Use duct tape to make all joints secure and air tight. Install Accessories (For Baffle Filter models) 11. Place baffle filters & spacers underneath the hood. (Figure 7) Install Accessories (For Oil Container models) 12.

  • Page 14: Wall Mount Installation

    WALL MOUNT INSTALLATION ***This installation requires purchase of duct cover Model No. CH1120DC-1. Figure 10 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
  • Page 15 4. For Rear 3-1/4” x 10” vent installation only: Figure 14 Remove attached 6” exhaust and discard. (Figure 12) Keep 13 screws to install vent covers. Remove duct knockout from back of the hood and discard. (Figure 14) Unscrew 3- 1/4”...
  • Page 16 Figure 18 Wiring to Power Supply CAUTION : If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING RANGE. RISK ELECTRICAL SHOCK.
  • Page 17 Figure 20 Install Accessories (For Baffle Filter models) 15. Place baffle filters & spacers underneath the hood. (Figure 20) Install Accessories (For Oil Container models) 16. Place the oil container (round) into keyhole under each safety screen. Turn clock-wise until firmly in place. (Figure 21) 17.

  • Page 18: Operating Instructions

    OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control The fan will start on Speed #3. Press button to decrease the speed level.
  • Page 19 icon will flash while ECO Mode is operating on QuietMode™. To appear in the LED Display. The deactivate, press and hold control button until icon no longer appears in the LED Display. NOTE: Pressing button while ECO Mode is active will activate the regular fan function and the speed will be displayed in LED Display.

  • Page 20: Maintenance

    MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.

  • Page 21: Specifications

    3-watt LED light x 2 (30” , 36”) 3-watt LED light x 3 (42” , 48”) HOOD DIMENSION (CH2230SQB-1 and CH2230SQ-1) 29-3/4" x 22" x 5-7/8" (W x D x H) (CH2236SQB-1 and CH2236SQ-1) 35-3/4" x 22" x 5-7/8" (CH2730SQB-1) 29-3/4” x 22” x 7”...
  • Page 22 For Baffle Filter Models: QuietMode™ SPEED Air Capacity (cfm) Sone* (dB) 1.0 (40) 1.4 (45) 2.8 (55) 3.5 (58) 4.2 (61) 4.5 (62) For Oil Container Models: SPEED QuietMode™ Air Capacity (cfm) Sone* (dB) 1.0 (40) 1.5 (46) 3.0 (56) 3.5 (58) 4.5 (62) 4.8 (63)

  • Page 23: Measurements & Diagrams

    ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. CH2230SQB-1 (30”) / CH2236SQB-1 (36”) MODEL NO.: CH2230SQ-1 (30”) / CH2236SQ-1 (36”) -FOR UNDER THE CABINET- 30" = Knockout Holes "A" 36" = Knockout Holes "B"...
  • Page 24 CH2730SQB-1 (30”) / CH2736SQB-1 (36”) MODEL NO.: CH2742SQB-1 (42”) / CH2748SQB-1 (48”) -FOR UNDER THE CABINET- 30" = Knockout Holes "A" 36", 42”, 48” = Knockout Holes "A" & "B" - FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -...
  • Page 25 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracke ***Duct Cover Support...

  • Page 26: Parts List

    PARTS LIST For Oil Container models only. CH2230SQ-1 (30”) MODEL NO.: CH2236SQ-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001-A 6” Exhaust Vent Cover (Top) L1-0241-0001-B 3-1/4” x 10” Exhaust L1-0241-0002-A 3-1/4” x 10” Vent Cover L1-0241-0002-B L1-0505-0002 6” Round Plastic Collar...
  • Page 27 For Oil Container models only. CH2230SQ-1 (30”) MODEL NO.: CH2236SQ-1 (36”)
  • Page 28 For Baffle Filter models only. CH2230SQB-1 (30”) MODEL NO.: CH2236SQB-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001-A 6” Exhaust Vent Cover (Top) L1-0241-0001-B L1-0241-0002-A 3-1/4” x 10” Exhaust L1-0241-0002-B 3-1/4” x 10” Vent Cover L1-0505-0002 6” Round Plastic Collar L1-0403-0301 LED Light (3W) Control Unit L1-0501-6001...
  • Page 29 For Baffle Filter models only. CH2230SQB-1 (30”) MODEL NO.: CH2236SQB-1 (36”)
  • Page 30 For Baffle Filters models only. CH2730SQB-1 (30”) MODEL NO.: CH2736SQB-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001-A 6” Exhaust Vent Cover (Top) L1-0241-0001-B 3-1/4” x10” Exhaust L1-0241-0002-A 3-1/4” x10” Vent Cover L1-0241-0002-B L1-0505-0002 6” Round Plastic Collar L1-0403-0301 LED Light (3W) Control Unit L1-0501-6001 Capacitor (1.5uf +2.0uF/ 350V)
  • Page 31 For Baffle Filter models only. CH2730SQB-1 (30”) MODEL NO.: CH2736SQB-1 (36”)
  • Page 32 For Baffle Filters models only. CH2742SQB-1 (42”) MODEL NO.: CH2748SQB-1 (48”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001-A 6” Exhaust Vent Cover (Top) L1-0241-0001-B 3-1/4” x10” Exhaust L1-0241-0002-A 3-1/4” x10” Vent Cover L1-0241-0002-B L1-0505-0002 6” Round Plastic Collar LED Light (3W) L1-0403-0301 Control Unit L1-0501-6001...
  • Page 33 For Baffle Filters models only. CH2742SQB-1 (42”) MODEL NO.: CH2748SQB-1 (48”)

  • Page 34: Circuit Diagram

    CIRCUIT DIAGRAM CH2230SQB-1 (30”) / CH2236SQB-1 (36”) MODEL NO.: CH2230SQ-1 (30”) / CH2236SQ-1 (36”) CH2730SQB-1 (30”) / CH2736SQB-1 (36”)
  • Page 35 CH2742SQB-1 (42”) , CH2748SQB-1 (48”) MODEL NO.:...

  • Page 36: Trouble Shooting

    TROUBLE SHOOTING Issue Possible Cause Solution Make sure the circuit breaker and the unit’s After The power is not on. Installation, power is ON. Use a voltage meter to check the both motors power supply. and lights are The wire connection is not secure. Check and tighten wire connection.

  • Page 37: Warranty

    TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects.
  • Page 38 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...

  • Page 39: Product Registration

    1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact: Tel: 1-626-775-8880 Email: customer.service@koberangehoods.com...
  • Page 40 Arcadia, CA 91006 USA www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
