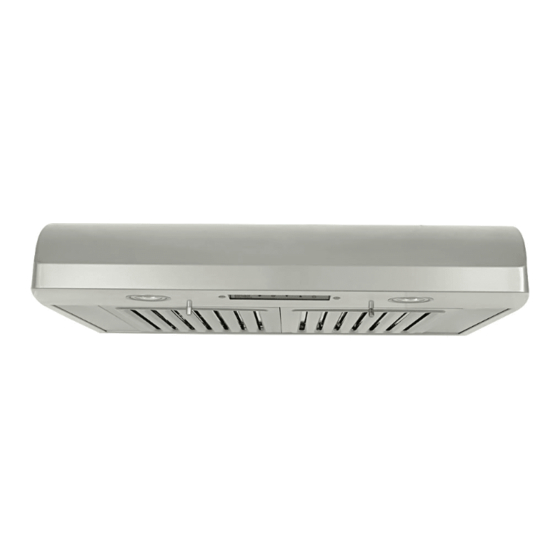

KOBE Brand Range Hood
CH22 Series
Model No.
Under Cabinet: CH2230SQB-1 (30")
CH27 Series
Model No.
Under Cabinet: CH2730SQB-1 (30")
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
CH2236SQB-1 (36")
Wall Mount: CH2230SQB-WM-1 (30")
CH2236SQB-WM-1 (36")
CH2736SQB-1 (36")
CH2742SQB-1 (42")
CH2748SQB-1 (48")
Wall Mount: CH2730SQB-WM-1 (30")
CH2736SQB-WM-1 (36")
CH2742SQB-WM-1 (42")
CH2748SQB-WM-1 (48")

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH2230SQB-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KOBE CH2230SQB-1

Summary of Contents for KOBE CH2230SQB-1

  • Page 1 KOBE Brand Range Hood CH22 Series Model No. Under Cabinet: CH2230SQB-1 (30”) CH2236SQB-1 (36”) Wall Mount: CH2230SQB-WM-1 (30”) CH2236SQB-WM-1 (36”) CH27 Series Model No. Under Cabinet: CH2730SQB-1 (30”) CH2736SQB-1 (36”) CH2742SQB-1 (42”) CH2748SQB-1 (48”) Wall Mount: CH2730SQB-WM-1 (30”) CH2736SQB-WM-1 (36”) CH2742SQB-WM-1 (42”)
  • Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.

  • Page 3: Table Of Contents

    [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 5 OPERATING INSTRUCTIONS....................14 MAINTENANCE ........................16 SPECIFICATIONS ........................17 MEASUREMENTS & DIAGRAMS .....................19 PARTS LIST ..........................22 CIRCUIT DIAGRAM ........................28 TROUBLE SHOOTING ......................30 WARRANTY ..........................31 WARRANTY INFORMATION FORM ..................33 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -...

  • Page 4: Important Safety Instructions

    KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
  • Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

  • Page 6: Components Of Package

    Knob attached to baffle filter Spacer attached to hood (30” only) Wire caps (3) M4 x 1-1/2” (5) M4 x 3/4" (4) M4 x 1-1/4” (4) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.
  • Page 7 M4 x 3/4" (4 for 30” & 36”) M4 x 1-1/4” (4 for 30” & 36”) (8 for 42” & 48”) (8 for 42” & 48”) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.

  • Page 8: Installation

    INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top...

  • Page 9: Safety Warning

    SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents UNDER CABINET WALL MOUNT...
  • Page 10 UNDER CABINET INSTALLATION Preparation before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the vening pipe from the hood to the outside. (Figure 1) A straight, short vent run will allow the hood to perform more efficiently.
  • Page 11 Align and secure Top Vent Cover {E} and 3- Figure 5 1/4” x 10” Vent Cover (removed from rear exhaust) using 14 screws (13 screws taken from 6” exhaust). (Figure 5) Attach the 3-1/4” x 10” Exhaust {D} to rear exhaust (located inside hood) using 10 screws taken from rear vent cover.
  • Page 12 Figure 7 Ductwork Installation 10. Use steel pipe to connect the exhaust on the hood to the ductwork. Use duct tape to make all joints secure and air tight. Install Accessories 11. Place baffle filters & spacers underneath the hood. (Figure 7) Final Assembly 12.

  • Page 13: Wall Mount Installation

    WALL MOUNT INSTALLATION ***This installation required to have Duct Cover Model No. CH1120DC-1. Preparation before Installation Figure 8 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
  • Page 14 4. For Rear 3-1/4” x 10” vent installation only: Figure 12 Remove attached 6” exhaust and discard. (Figure 10) Keep 13 screws to install vent covers. Remove duct knockout from back of the hood and discard. (Figure 12) Unscrew 3-1/4” x 10”...
  • Page 15 Figure 16 Wiring to Power Supply CAUTION: If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
  • Page 16 Figure 18 Install Accessories 15. Place baffle filters & spacers underneath the hood. (Figure 18) Final Assembly 16. Turn power ON in control panel. Check all lights and fan operation. 17. Make sure to leave this manual for the homeowner.

  • Page 17: Operating Instructions

    Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control The fan will start on Speed #3. Press button to decrease the speed level.
  • Page 18 appear in the LED Display. The icon will flash while ECO Mode is operating on QuietMode™. To deactivate, press and hold control button until icon no longer appears in the LED Display. NOTE: Pressing button while ECO Mode is active will activate the regular fan function and the speed will be displayed in LED Display.

  • Page 19: Maintenance

    MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.

  • Page 20: Specifications

    3-Level Lighting 3-watt LED light x 2 (30” , 36”) 3-watt LED light x 3 (42” , 48”) HOOD DIMENSION CH2230SQB-1 and CH2230SQB-WM-1 29-3/4” x 22” x 5-7/8” (W x D x H) CH2236SQB-1 and CH2236SQB-WM-1 29-3/4” x 22” x 5-7/8”...
  • Page 21 CH2730SQB-1 (30”) 40.5 46.0 CH2736SQB-1 (36”) 44.0 50.5 CH2742SQB-1 (42”) 50.5 61.5 CH2748SQB-1 (48”) 55.0 75.0 SPEED QuietMode™ Air Capacity (cfm) Sone* (dB) 1.0 (40) 1.4 (45) 2.8 (55) 3.5 (58) 4.2 (61) 4.5 (62) *One sone is equivalent to the sound of a refrigerator at 40 decibels. **Specifications subject to change without notice.

  • Page 22: Measurements & Diagrams

    ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. -FOR UNDER THE CABINET- MODEL NO.: CH2230SQB-1 (30”) / CH2236SQB-1 (36”) 30" = Knockout Holes "A" 36" = Knockout Holes "B" - FOR WALL MOUNT (DUCT COVER IS INCLUDED) –...
  • Page 23 -FOR UNDER THE CABINET- MODEL NO.: CH2730SQB-1 (30”) / CH2736SQB-1 (36”) CH2742SQB-1 (42”) / CH2748SQB-1 (48”) 30" = Knockout Holes "A" 36", 42”, 48” = Knockout Holes "A" & "B" - FOR WALL MOUNT (DUCT COVER IS INCLUDED) – MODEL NO.: CH2730SQB-WM-1 (30”) / CH2736SQB-WM-1 (36”) CH2742SQB-WM-1 (42”) / CH2748SQB-WM-1 (48”)
  • Page 24 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket ***Duct Cover Support...

  • Page 25: Parts List

    PARTS LIST MODEL NO.: CH2230SQB-1 and CH2230SQB-WM-1 (30”) CH2236SQB-1 and CH2236SQB-WM-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001A 6” Exhaust Plate Vent Cover (Top) L1-0241-0001B L1-0241-0002BH 2-3/4” x9-3/4” Exhaust Plate L1-0241-0002A 3-3/4” x11-1/4” Vent Cover L1-0505-0003 6” Round Plastic Exhaust...
  • Page 26 MODEL NO.: CH2230SQB-1 and CH2230SQB-WM-1 (30”) CH2236SQB-1 and CH2236SQB-WM-1 (36”)
  • Page 27 MODEL NO.: CH2730SQB-1 and CH2730SQB-WM-1 (30”) CH2736SQB-1 and CH2736SQB-WM-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001A 6” Exhaust Plate L1-0241-0001B Vent Cover (Top) L1-0241-0002BH 2-3/4” x9-3/4” Exhaust Plate L1-0241-0002A 3-3/4” x11-1/4” Vent Cover L1-0505-0003 6” Round Plastic Exhaust LED Light (3W) L1-0403-0301 B101-02730-06 CH2730SQB-1...
  • Page 28 MODEL NO.: CH2730SQB-1 and CH2730SQB-WM-1 (30”) CH2736SQB-1 and CH2736SQB-WM-1 (36”)
  • Page 29 MODEL NO.: CH2742SQB-1 and CH2742SQB-WM-1 (42”) CH2748SQB-1 and CH2748SQB-WM-1 (48”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001A 6” Exhaust Plate Vent Cover (Top) L1-0241-0001B L1-0241-0002BH 2-3/4” x9-3/4” Exhaust Plate L1-0241-0002A 3-3/4” x11-1/4” Vent Cover L1-0505-0003 6” Round Plastic Exhaust LED Light (3W) L1-0403-0301 CH2742SQB-1 B101-02742-06...
  • Page 30 MODEL NO.: CH2742SQB-1 and CH2742SQB-WM-1 (42”) CH2748SQB-1 and CH2748SQB-WM-1 (48”)

  • Page 31: Circuit Diagram

    CIRCUIT DIAGRAM MODEL NO.: CH2230SQB-1 and CH2230SQB-WM-1 (30”) CH2236SQB-1 and CH2236SQB-WM-1 (36”) CH2730SQB-1 and CH2730SQB-WM-1 (30”) CH2736SQB-1 and CH2736SQB-WM-1 (36”)
  • Page 32 MODEL NO.: CH2742SQB-1 and CH2742SQB-WM-1 (42”) CH2748SQB-1 and CH2748SQB-WM-1 (48”)

  • Page 33: Trouble Shooting

    TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check both motors the power supply. and lights are The wire connection is not secure. Check and tighten wire connection.

  • Page 34: Warranty

    TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects.
  • Page 35 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...

  • Page 36: Warranty Information Form

    1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact: Tel: 1-626-775-8880 Email: customer.service@koberangehoods.com...
  • Page 37 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
