Quick Links
Packing List
In addition to this guide, the package includes the following items:
PCI-82x Series
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
Related Information
For more detailed information related to the software manual, hardware
manual, PCI-82x series Driver & SDK and sample program:
http://www.icpdas.com/en/download/index.php?model=PCI-822LU

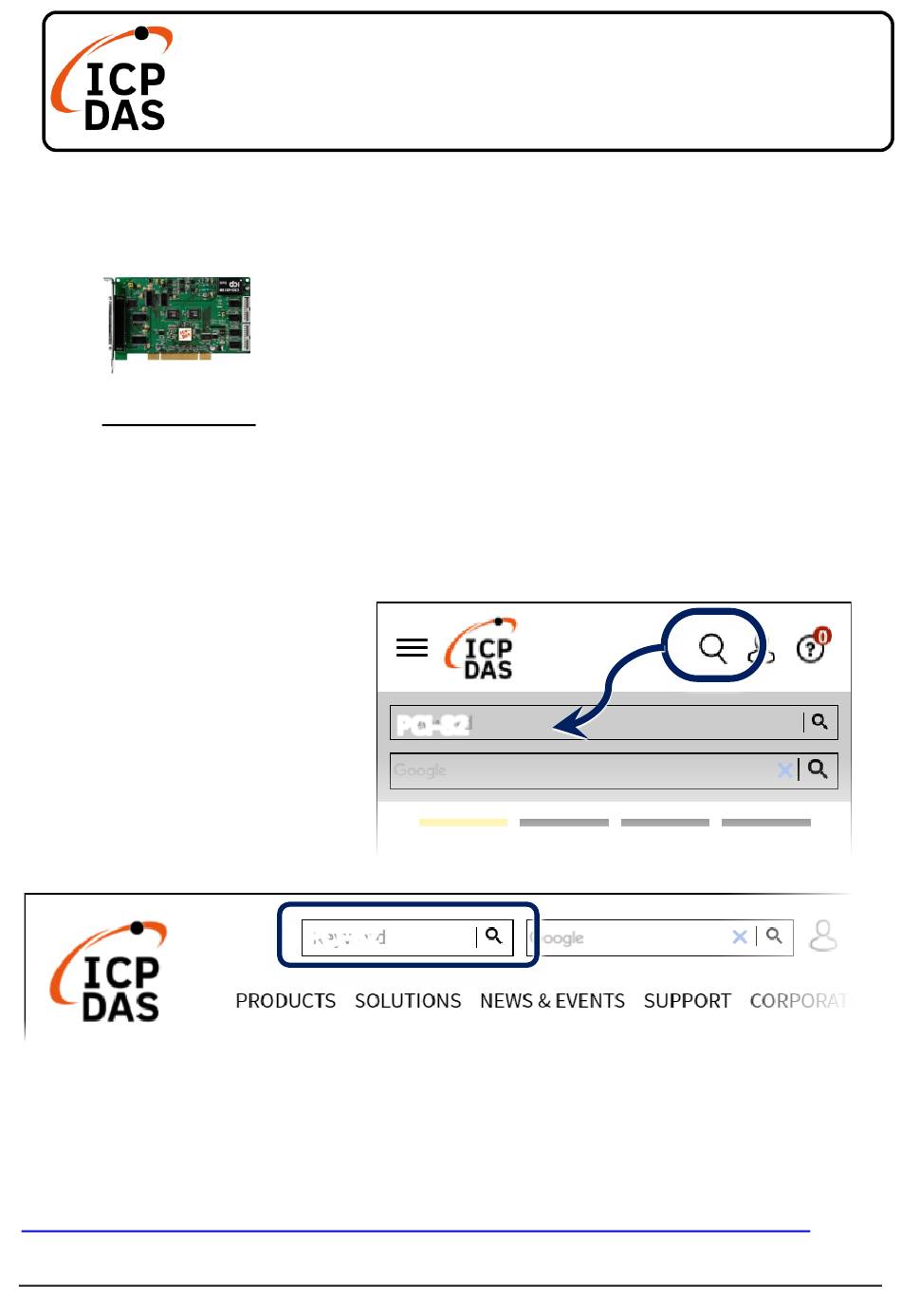

PCI-82x Series Quick Start
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
PCI-82
PCI-82
v1.1, Feb. 2025
P1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA PCI-82 Series
Summary of Contents for ICP DAS USA PCI-82 Series
- Page 1 PCI-82x Series Quick Start v1.1, Feb. 2025 Packing List In addition to this guide, the package includes the following items: PCI-82x Series Resources Technical Support How to search for drivers, manuals and service@icpdas.com spec information on ICP DAS website. www.icpdas.com ...
-
Page 2: Installing Windows Driver
Installing Windows Driver 1) Download or locate the Windows driver. The UniDAQ driver supports 32-/64-bit Windows 10/11, which can be found in the https://www.icpdas.com/en/download/index.php?kw=UniDAQ 2) Click the “Next>” button to start the installation. 3) Check your DAQ Card is or not on supported list, then click the “Next>”... - Page 3 Installing Hardware on PC 1) Power off the Computer. 2) Remove all covers from the Computer. 3) Select an unused PCI /PCI Express slot. 4) Carefully insert the Card into PCI/PCI Express slot. 5) Replace the Computer Covers. 6) Power on the Computer. 7) The operating system will automatically detect the new hardware and install the necessary drivers after reboot the PC.
-
Page 4: Pin Assignments
Pin Assignments CON3 CON1 Ext Trg D.GND PB 1 PB 0 Da1 out Da2 out PB 2 PB 3 A.GND AI 31 PB 4 PB 5 AI 15 AI 30 PB 6 PB 7 AI 14 AI 29 PB 8 PB 9 AI 13 AI 28... - Page 5 Testing Board Prepare for device CA-3710 (optional) cable DN-37 (optional) daughter board 1) Connect the CON3 to DN-37 board using the CA-3710 cable. 2) AI functional test and wiring Connect the signal battery to AI channel 0, and connect the signals as follows. Connect the AI_GND pin (Pin17) to battery(-) on the terminal board Connect the AI0 pin (Pin1) to battery(+) on the terminal board.
- Page 6 3) Launch the UniDAQ Utility program, it was installed in the default folder, it will be located at “C:\ICPDAS\UniDAQ\Driver”. 4) Click the “TEST” button to start the test. Click the ”Analog Input” item than click “SINGLE” button to get values. Check the voltage is or not equal battery.
